Selector Lever Cable Adjustment

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Activation

1.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

2.

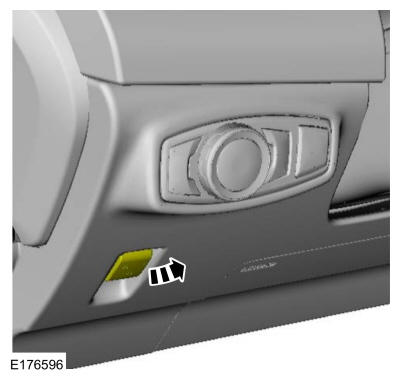

Apply the parking brake.

GFD80753

Courtesy of FORD MOTOR COMPANY

3.

Using the diagnostic scan tool select the cable adjustment mode.

4.

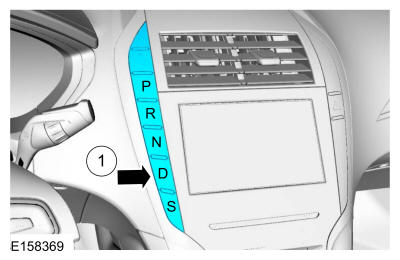

NOTE: The GSM will alternate flashing D or N and S simultaneously.
- 1.

  Press the D on the GSM.

GFD80754

Courtesy of FORD MOTOR COMPANY

5.

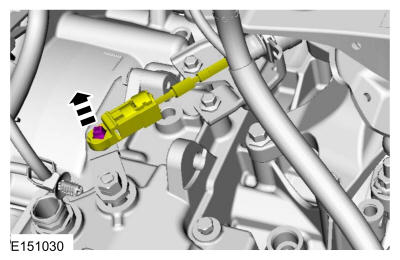

Disconnect the selector lever cable from the transmission manual lever.

GFD80755

Courtesy of FORD MOTOR COMPANY

6.

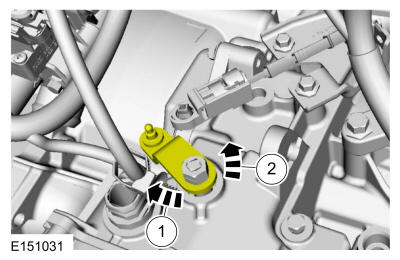

NOTE: Verify D is illuminated on the IPC.
- 1.

  Rotate the manual control lever clockwise until it stops.
- 2.

  Rotate the manual control lever counterclockwise 1 detent.

GFD80756

Courtesy of FORD MOTOR COMPANY

7.
- 1.

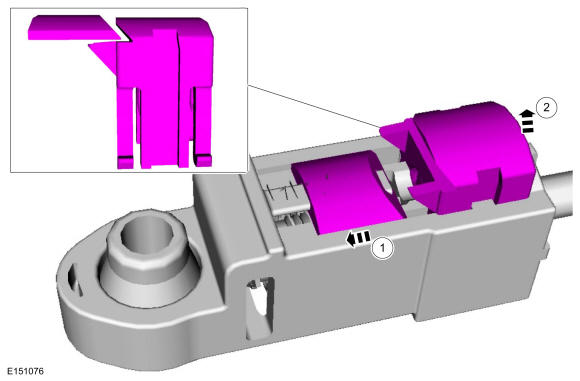

  Move the slide to the left.
- 2.

  While holding the slide, position the adjuster lock upward.

GFD80757

Courtesy of FORD MOTOR COMPANY

8.

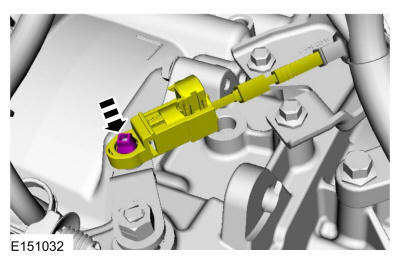

Connect the selector lever cable to the transmission manual lever.

GFD80758

Courtesy of FORD MOTOR COMPANY

9.

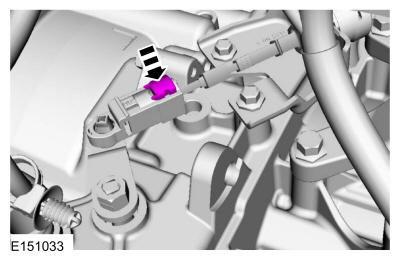

Lock the adjuster.

GFD80759

Courtesy of FORD MOTOR COMPANY

10.

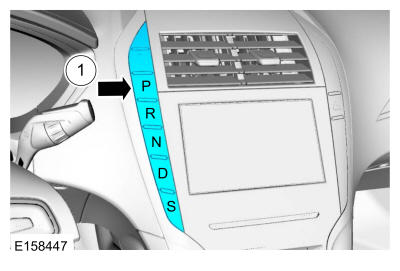

Press the P on the GSM.

GFD80760

Courtesy of FORD MOTOR COMPANY

11.

Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

12.

Clear the DTCs.

13.

Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.

14.

Check for DTCs.

15.

Disconnect the scan tool.

16.

Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.

17.

Release the parking brake.

GFD80752

Courtesy of FORD MOTOR COMPANY
