Overhead Console: Installation

WARNING: This page is about a different car, the 2016 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

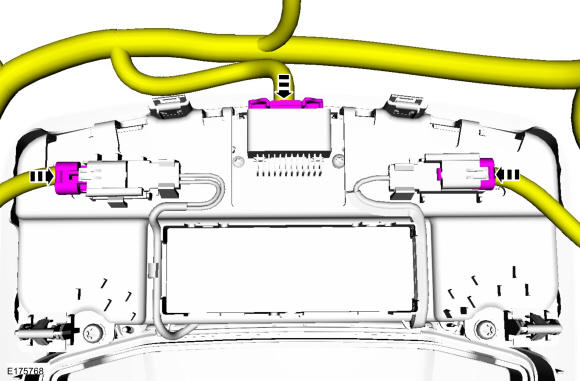

  1. Connect the electrical connectors.
    GFD167655Courtesy of FORD MOTOR COMPANY

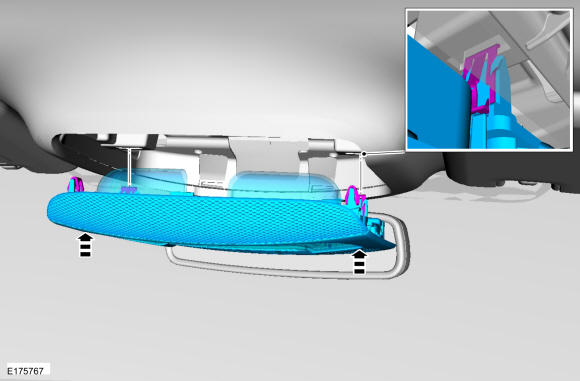

  2. Line up the center clips and install the overhead console.
GFD167656Courtesy of FORD MOTOR COMPANY
