Transfer Case
WARNING: This page is about a different car, the 2016 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

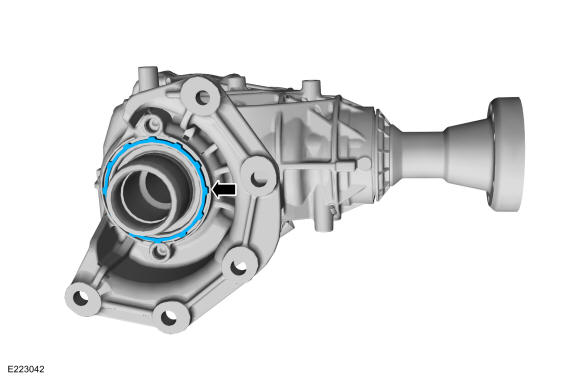

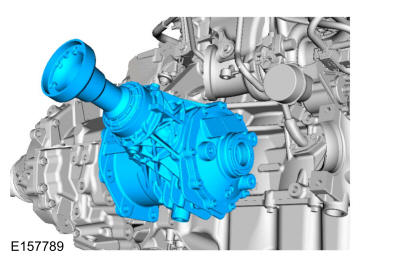

- Install the new PTU to transmission compression seal.
- Install the PTU.

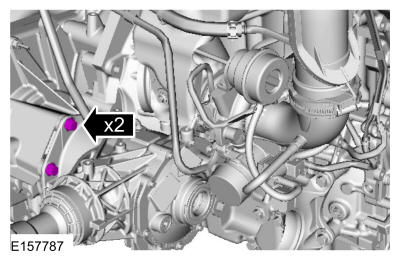

- Install the new upper PTU bolts.
Torque: 59 lb.ft (80 Nm)

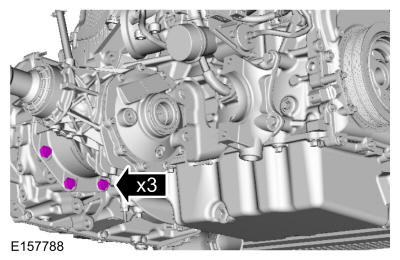

- Install the new lower PTU bolts.
Torque: 59 lb.ft (80 Nm)

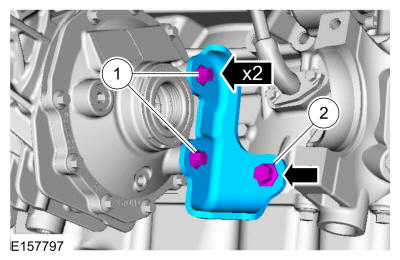

- Install the PTU support bracket and bolts.
Torque
Stage 1: 18 lb.ft (25 Nm)
Stage 2: 46 lb.ft (63 Nm)

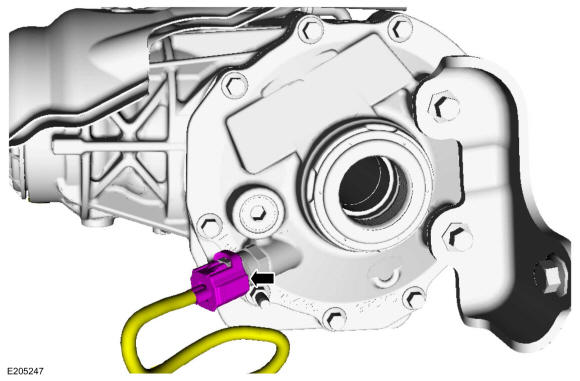

- If equipped. Connect the PTU temperature sensor.

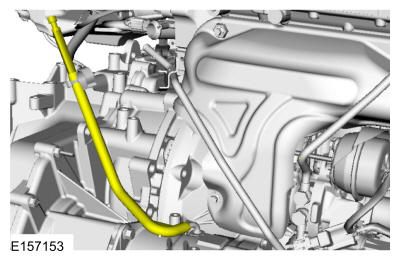

- Connect the PTU vent hose.

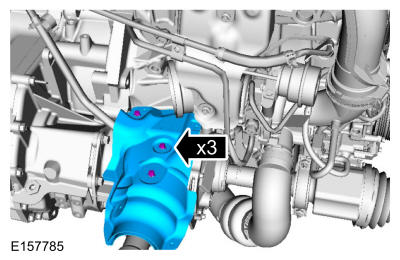

- Install the PTU heat shield bolts and the heat shield.
Torque: 97 lb.in (11 Nm)
- Refer to: Front Halfshaft RH
- Refer to: Catalytic Converter Refer to: Catalytic Converter

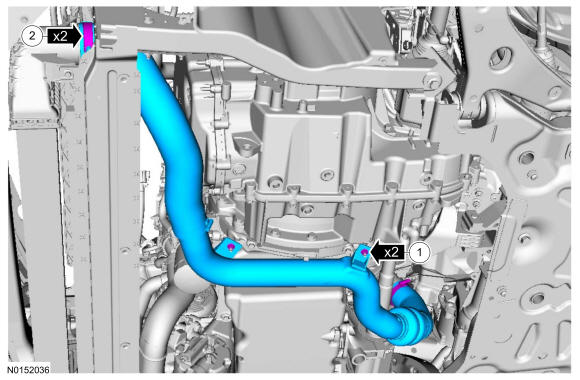

- Install the CAC tube and the nuts, tighten the clamp.
Torque
Stage 1: 97 lb.in (11 Nm)
Stage 2: 44 lb.in (5 Nm)
- Refer to: Transfer Case Fluid Level Check
