Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2016 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defroster vent trim panel. REFER to: Defrost Vent Trim Panel .

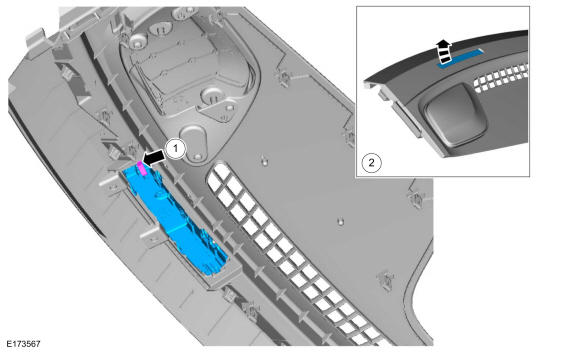

  2. Release the tab and remove the HUD module.
GFD167214Courtesy of FORD MOTOR COMPANY
