Fuel Pump Driver Module (FPDM): Removal

NOTE: There are 2 fuel pump driver modules, the fuel pump driver module - lower is located in front of the left rear wheel well and above the air deflector. The fuel pump driver module - upper is located below the left rear seat backrest and can be accessed by going through the luggage compartment.

Fuel Pump Driver Module - Upper

  1. Remove the cover.
    GFD236379Courtesy of FORD MOTOR COMPANY

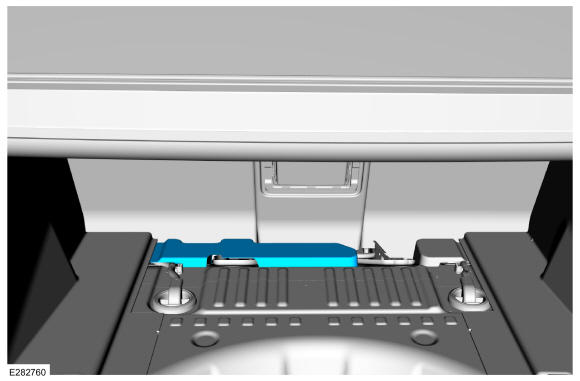

  2. Remove the insulator.
    GFD236380Courtesy of FORD MOTOR COMPANY
  3. Disconnect the fuel pump driver module electrical connector.
    GFD236381Courtesy of FORD MOTOR COMPANY
  4. Remove the fuel pump driver module retaining nuts and then remove the fuel pump driver module.
    GFD236382Courtesy of FORD MOTOR COMPANY

    Fuel Pump Driver Module - Lower

  5. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  6. Remove the right rear air deflector retainers, remove the pushpin and then remove the right rear air deflector.
    GFD236330Courtesy of FORD MOTOR COMPANY
  7. Disconnect the fuel pump driver module fuel pump driver module electrical connector.
    GFD236331Courtesy of FORD MOTOR COMPANY
  8. Remove the fuel pump driver module retaining nuts and then remove the fuel pump driver module.
GFD236332Courtesy of FORD MOTOR COMPANY
