Turbocharger Boost Pressure Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

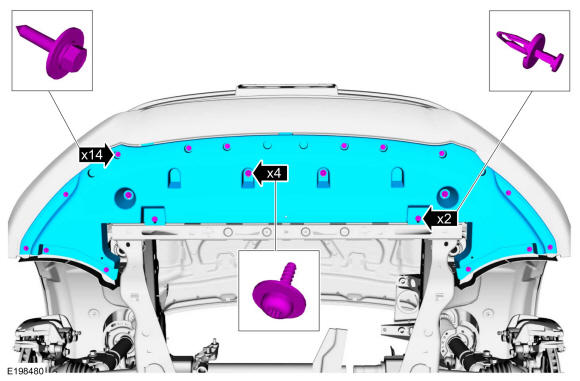

2. Remove the retainers and the front underbody shield.

   Courtesy of FORD MOTOR COMPANY

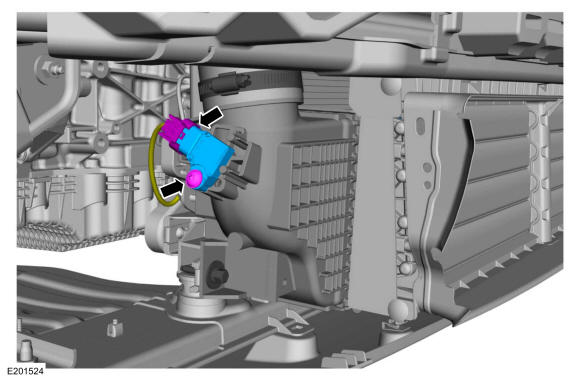

3. Disconnect the electrical connector, remove retainer and the turbocharger boost pressure sensor.

   Torque: 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY
