Manifold Absolute Pressure (MAP) Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
- Remove the nut.
Torque: 42 lb.in (4.8 Nm)
- Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
- If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
Torque: 62 lb.in (7 Nm)
- Remove the nut.

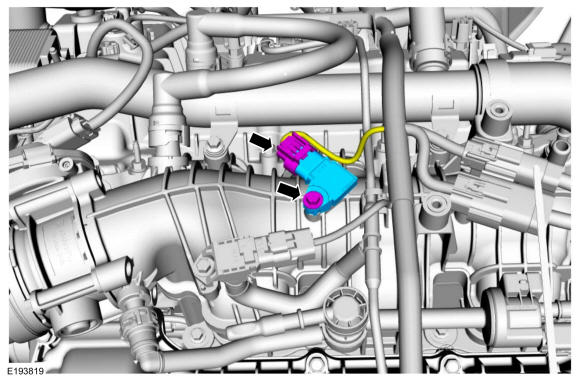

- Disconnect the electrical connector, remove the retainer and the MAP sensor.
Torque: 53 lb.in (6 Nm)
