Intake Air Temperature (IAT) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details

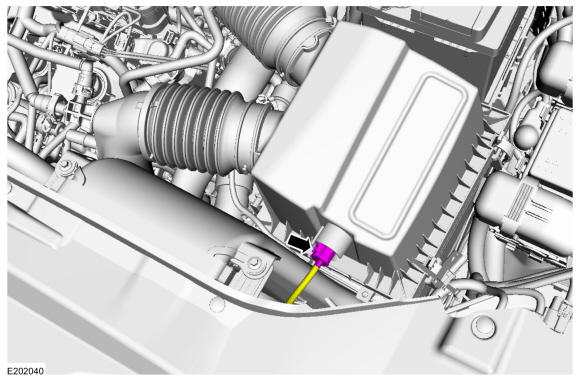

  1. Disconnect the IAT electrical connector.
    GFD236760Courtesy of FORD MOTOR COMPANY

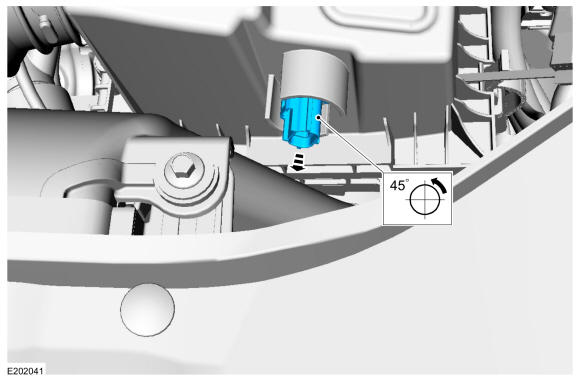

  2. Remove the IAT sensor.
GFD236761Courtesy of FORD MOTOR COMPANY
