Fuel Pressure Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel tank. Refer to: Fuel Tank .
  2. Remove the fuel pressure sensor and tube. Refer to: Quick Release Coupling .

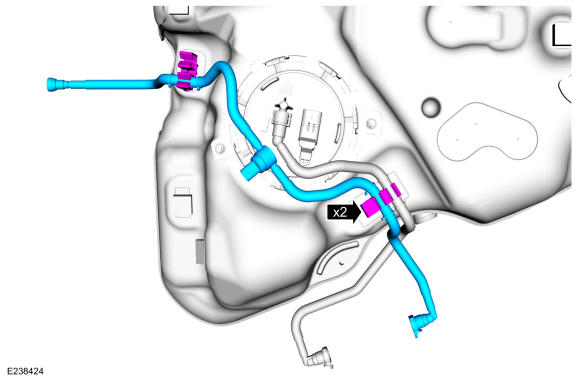

GFD236778Courtesy of FORD MOTOR COMPANY
