Selector Lever Cable: Installation

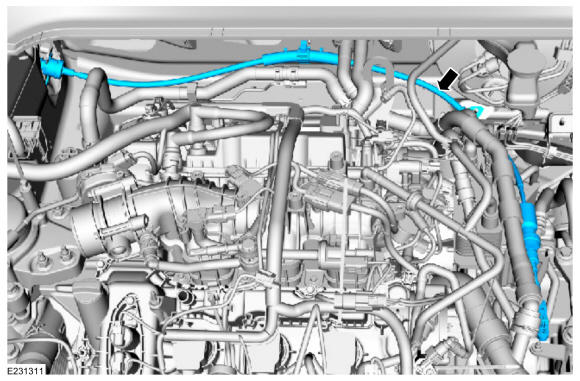

- Position the selector lever cable in the vehicle.

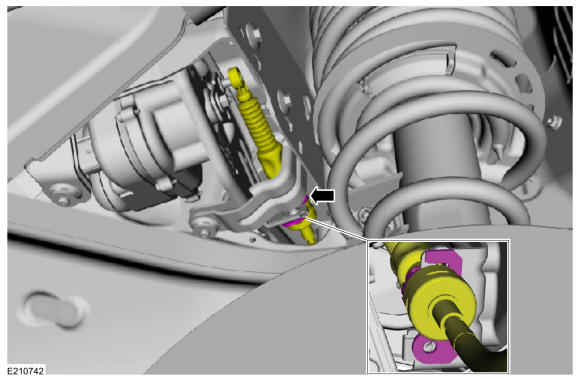

- Attach the selector lever cable to the selector lever cable bracket.

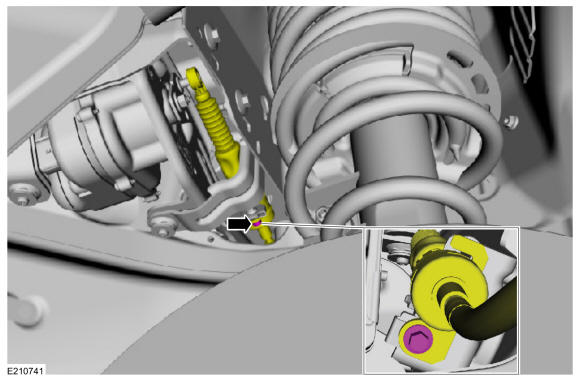

- Install the selector lever cable retaining clip bolt.
Torque: 62 lb.in (7 Nm)

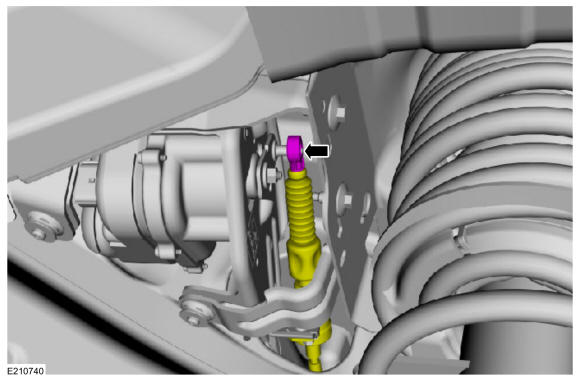

- Attach the selector lever cable to the TRCM lever.
- Install the RH fender splash shield. Refer to: Fender Splash Shield .
- Attach the selector lever cable.

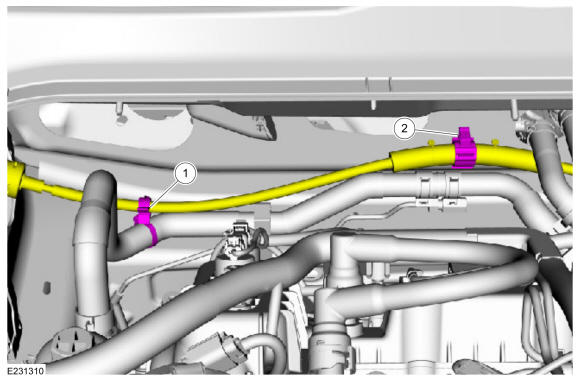

- Attach the selector lever cable from the retainer.
- Attach the selector lever cable retainer.

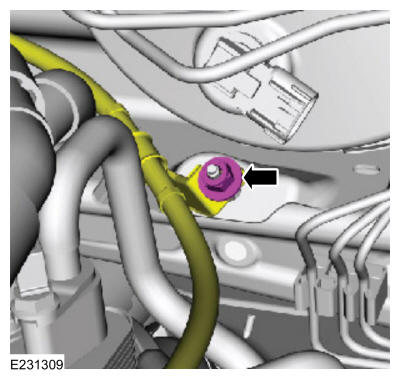

- Install the selector lever cable nut.

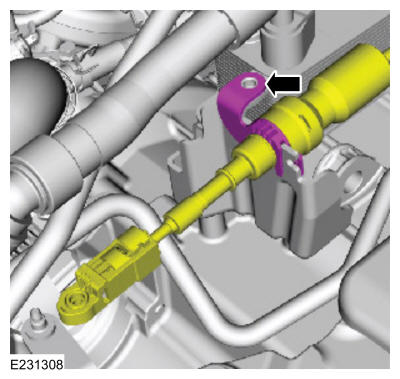

- Attach the selector lever cable to the selector lever cable bracket.

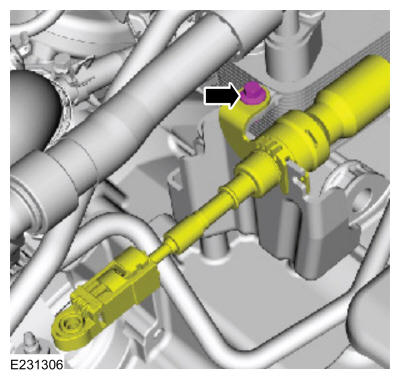

- Install the selector cable retaining clip bolt.
Torque: 62 lb.in (7 Nm)
-
NOTE: Do not install the air cleaner at this time.
Install the battery tray. Refer to: Battery Tray .
- Using the diagnostic scan tool select the cable adjustment mode.
-
NOTE: The GSM will alternate flashing D or N and S simultaneously.
Press D on the GSM.
-
NOTE: Verify D is illuminated on the IPC.
Position the manual control lever in D.
- Rotate the manual control lever counterclockwise until it stops.
- Rotate the manual control lever 3 detents into D.
- Unlock the adjuster.
- Move the slide to the left.
- While holding the slide, position the adjuster lock upward.
- Connect the selector lever cable to the transmission manual lever.
- Snap the adjuster lock into place.
- Press P on the GSM.
- Clear any DTCs.
- Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
- Check for DTCs.
- Disconnect the scan tool.
- Install the air cleaner. Refer to: Air Cleaner - 2.7L EcoBoost . Refer to: Air Cleaner - 3.0L EcoBoost . Refer to: Air Cleaner - 3.7L Duratec .
- Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
