Cylinder Head: Disassembly

LH cylinder head

• 1.

  Loosen the fitting and remove the turbocharger coolant supply tube.

Courtesy of FORD MOTOR COMPANY

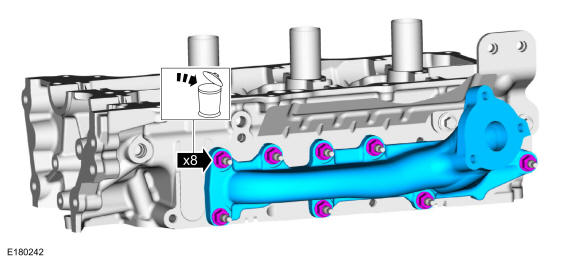

• 2.

  Remove the nuts and the exhaust manifold, discard the nuts.

Courtesy of FORD MOTOR COMPANY

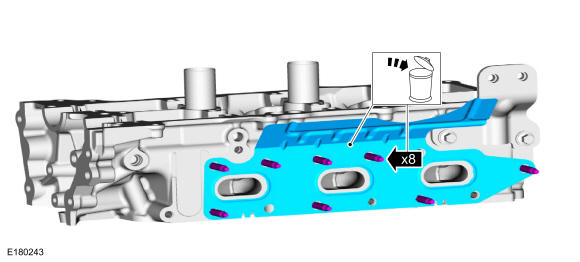

• 3.

  Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the bolts and the lift eye bracket.

Courtesy of FORD MOTOR COMPANY

• 5.

  Remove the timing chain guide pin.

Courtesy of FORD MOTOR COMPANY

RH cylinder head

• 6.

  Loosen the fitting and remove the turbocharger coolant supply tube.

Courtesy of FORD MOTOR COMPANY

• 7.


  • Remove the stud bolt.
  • Remove and discard the CHT sensor.

Courtesy of FORD MOTOR COMPANY

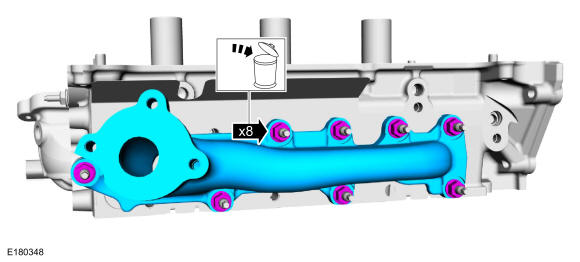

• 8.

  Remove the nuts and the exhaust manifold, discard the nuts.

Courtesy of FORD MOTOR COMPANY

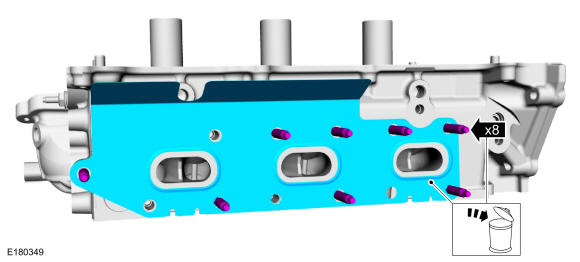

• 9.

  Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

• 10.

  Remove the timing chain tensioner arm and timing chain guide pins.

Courtesy of FORD MOTOR COMPANY

All cylinder heads

NOTE: RH shown, LH similar.

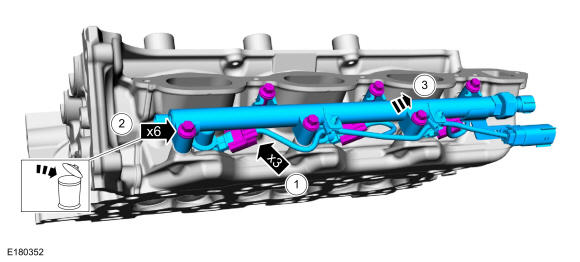

• 11.

  • Disconnect the fuel injector electrical connectors.
  • Remove and discard the fuel injector bolts.
  NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.
  NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
  • Remove the fuel rail and fuel injectors.

Courtesy of FORD MOTOR COMPANY

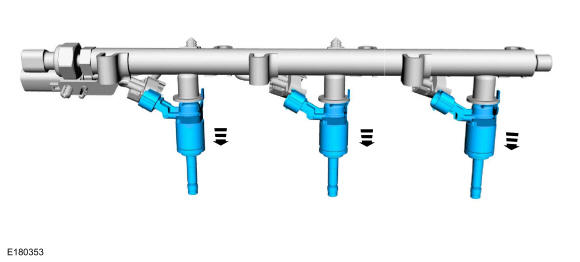

• 12.

  Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY

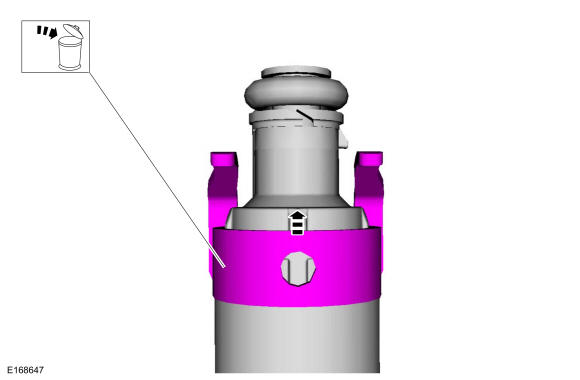

• 13.

  Remove and discard the clips from all of the fuel injectors including any injectors that have remained in the cylinder head.

Courtesy of FORD MOTOR COMPANY

NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur.

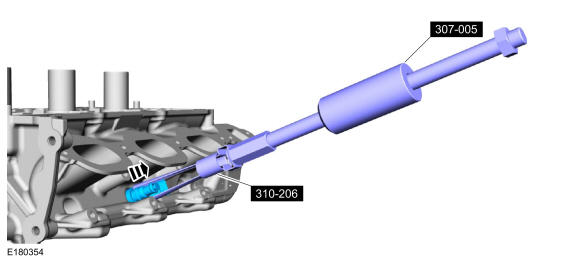

• 14.
  Using the fuel injector remover, remove the fuel injectors that remained in the cylinder head.

Courtesy of FORD MOTOR COMPANY

NOTE: Do not use a brush to clean the tip of the fuel injector.
NOTE: Do not use compressed air to clean the tip of the fuel injector.
NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.
• 15.
  Using the Fuel Injector Brush, clean the cylinder head fuel injector bores.

Courtesy of FORD MOTOR COMPANY

• 16.

  Remove the spark plugs. Refer to: Engine Ignition System - 3.5L GTDI .

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
NOTE: LH shown, RH similar.
• 17.
  Using the Valve Spring Compressor, remove the valve collet, valve spring retainer and the valve spring.

Courtesy of FORD MOTOR COMPANY

• 18.

  Remove and discard the valve stem seal.

Courtesy of FORD MOTOR COMPANY

• 19.

  Remove the valve.

Courtesy of FORD MOTOR COMPANY

• 20.

  Repeat the previous 3 steps for each valve.
