Power Distribution

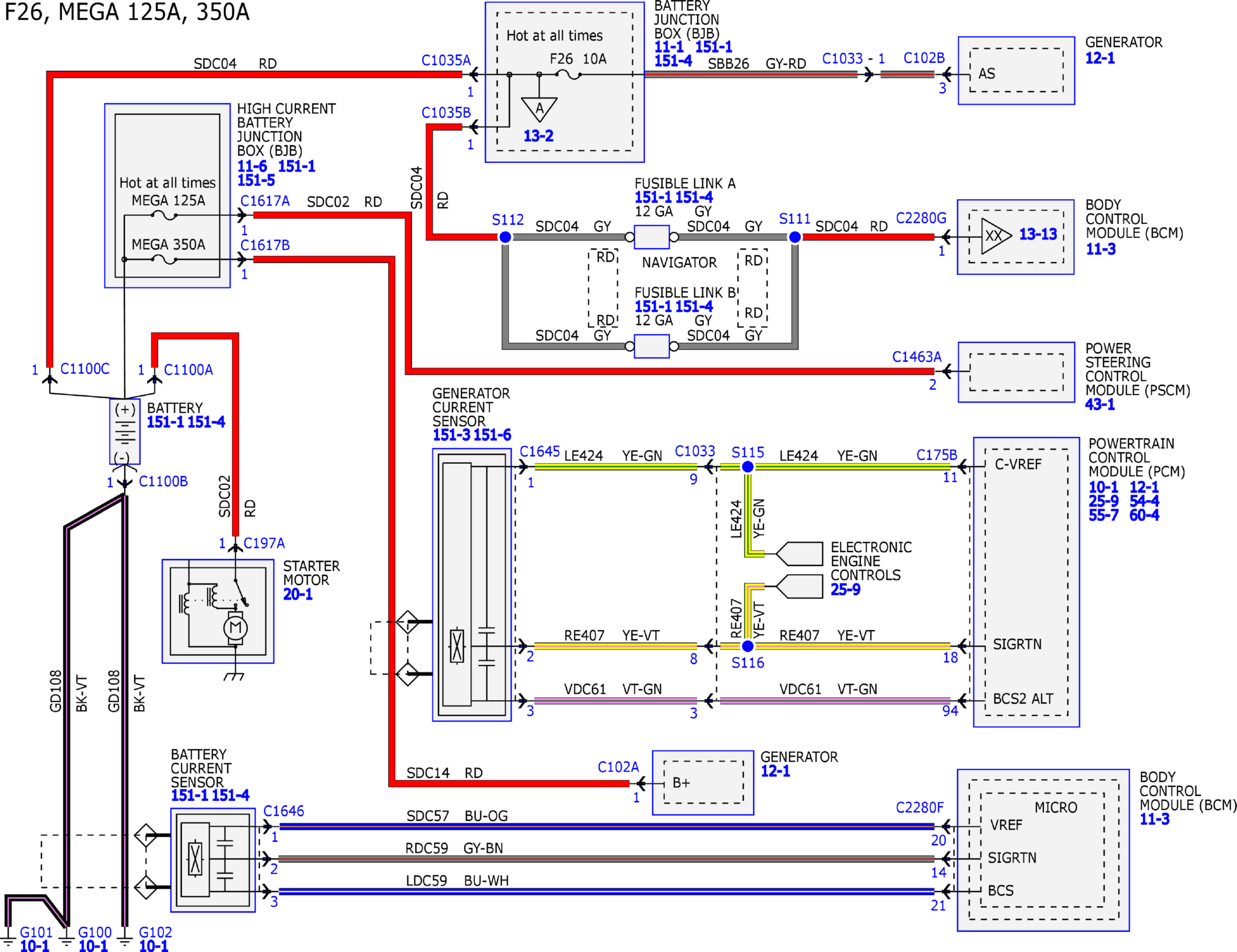

Fig 1: Power Distribution Wiring Diagrams (1 Of 40)

GFDW9635

Courtesy of FORD MOTOR COMPANY

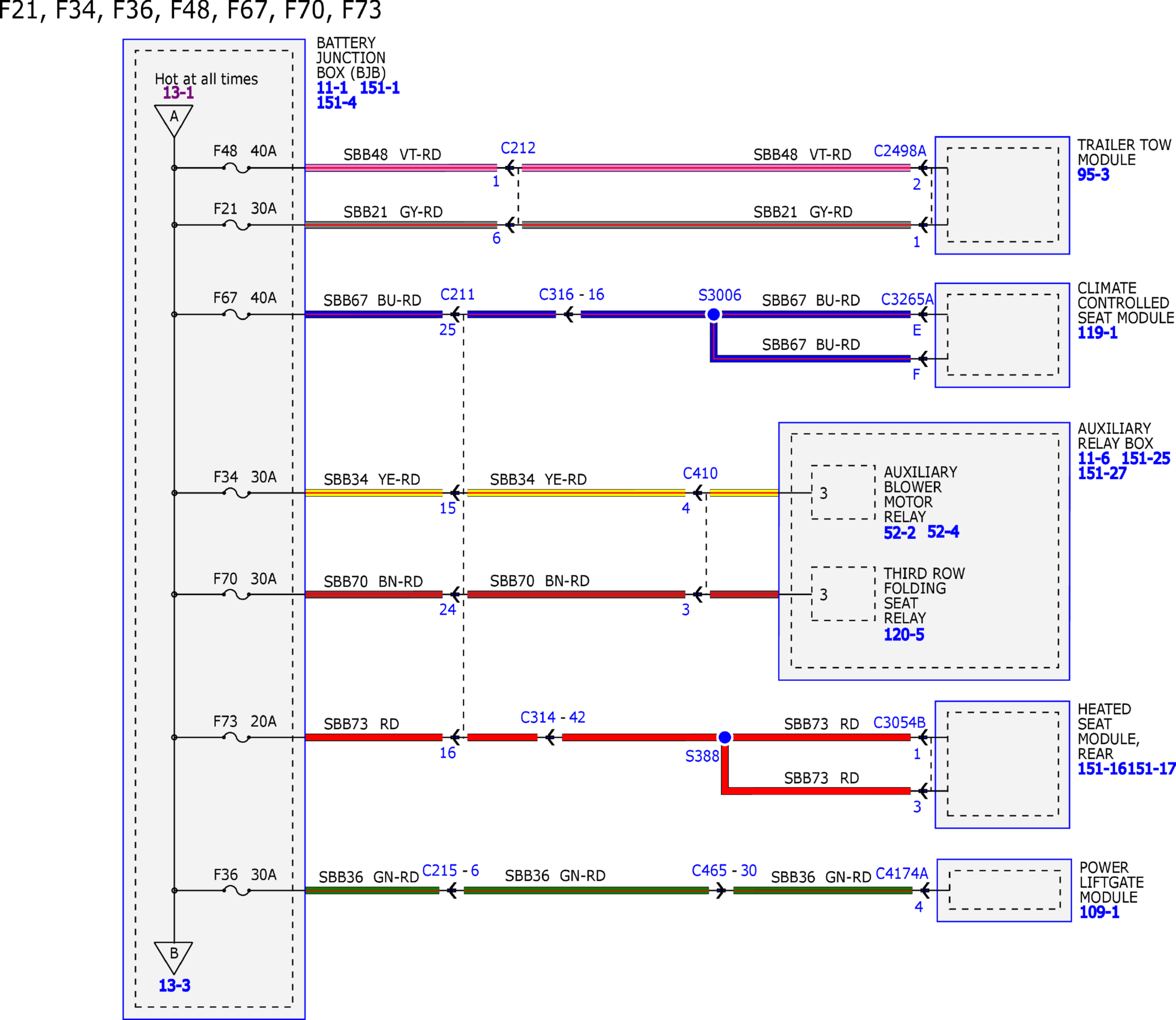

Fig 2: Power Distribution Wiring Diagrams (2 Of 40)

GFDW9636

Courtesy of FORD MOTOR COMPANY

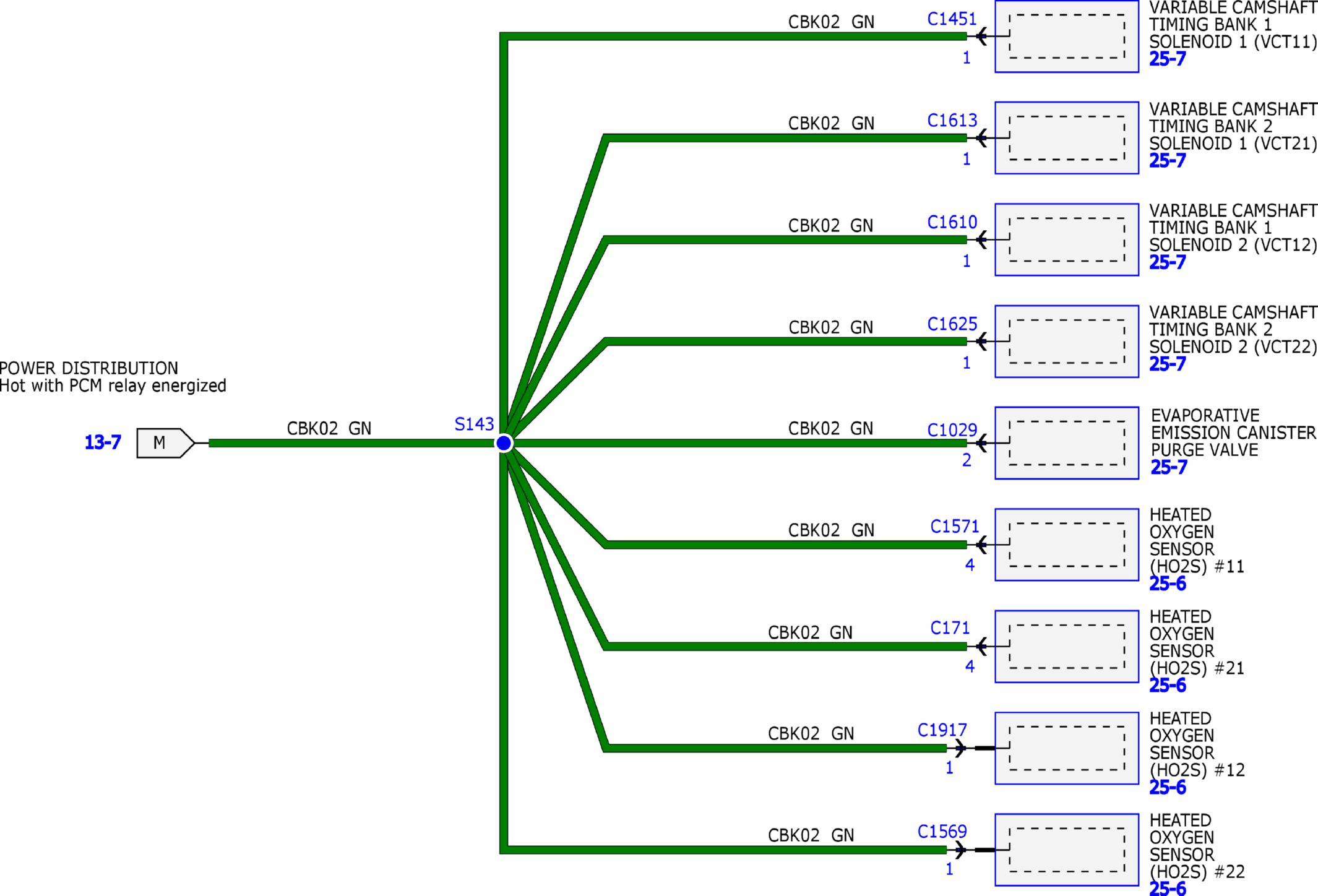

Fig 3: Power Distribution Wiring Diagrams (3 Of 40)

GFDW9637

Courtesy of FORD MOTOR COMPANY

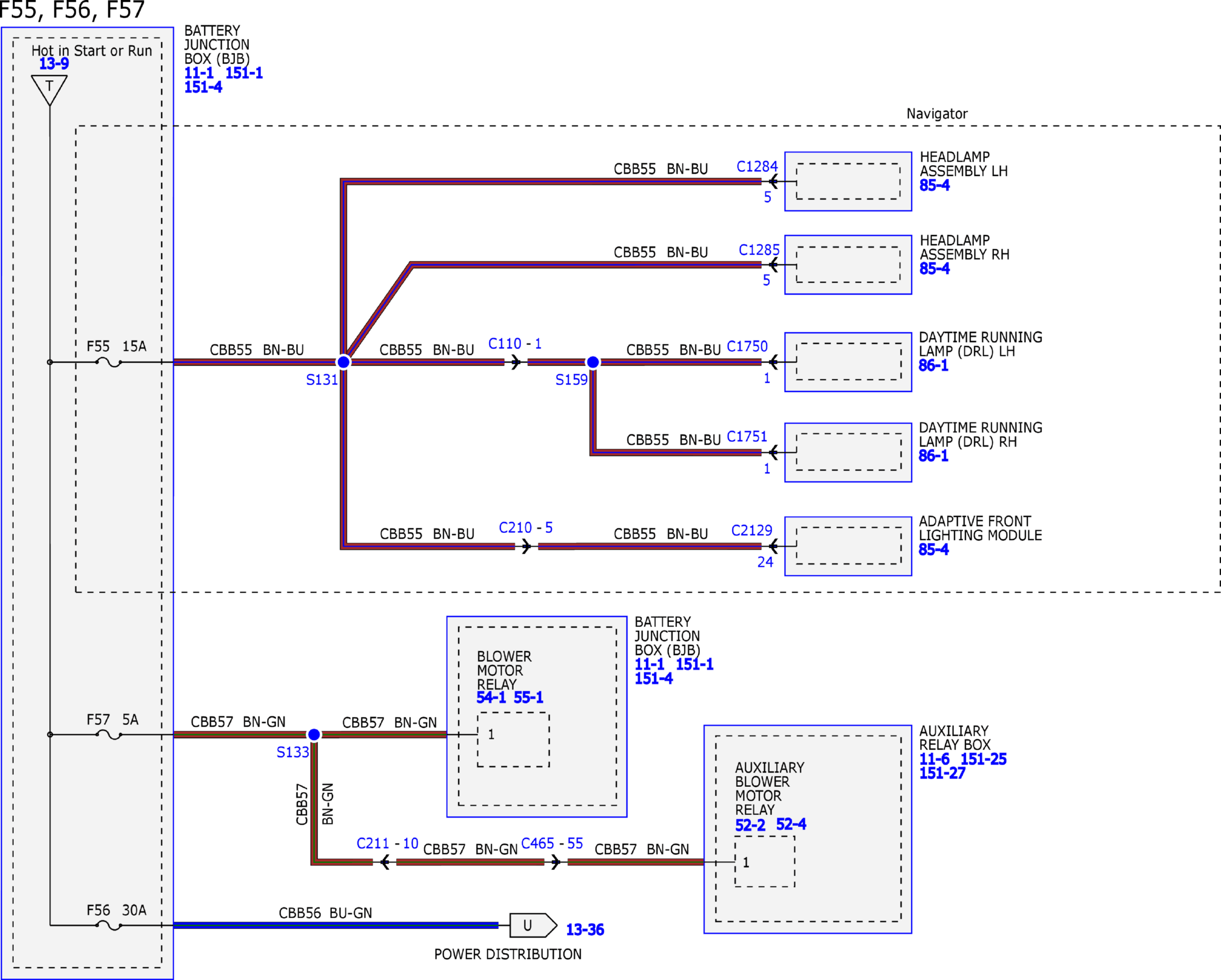

Fig 4: Power Distribution Wiring Diagrams (4 Of 40)

GFDW9638

Courtesy of FORD MOTOR COMPANY

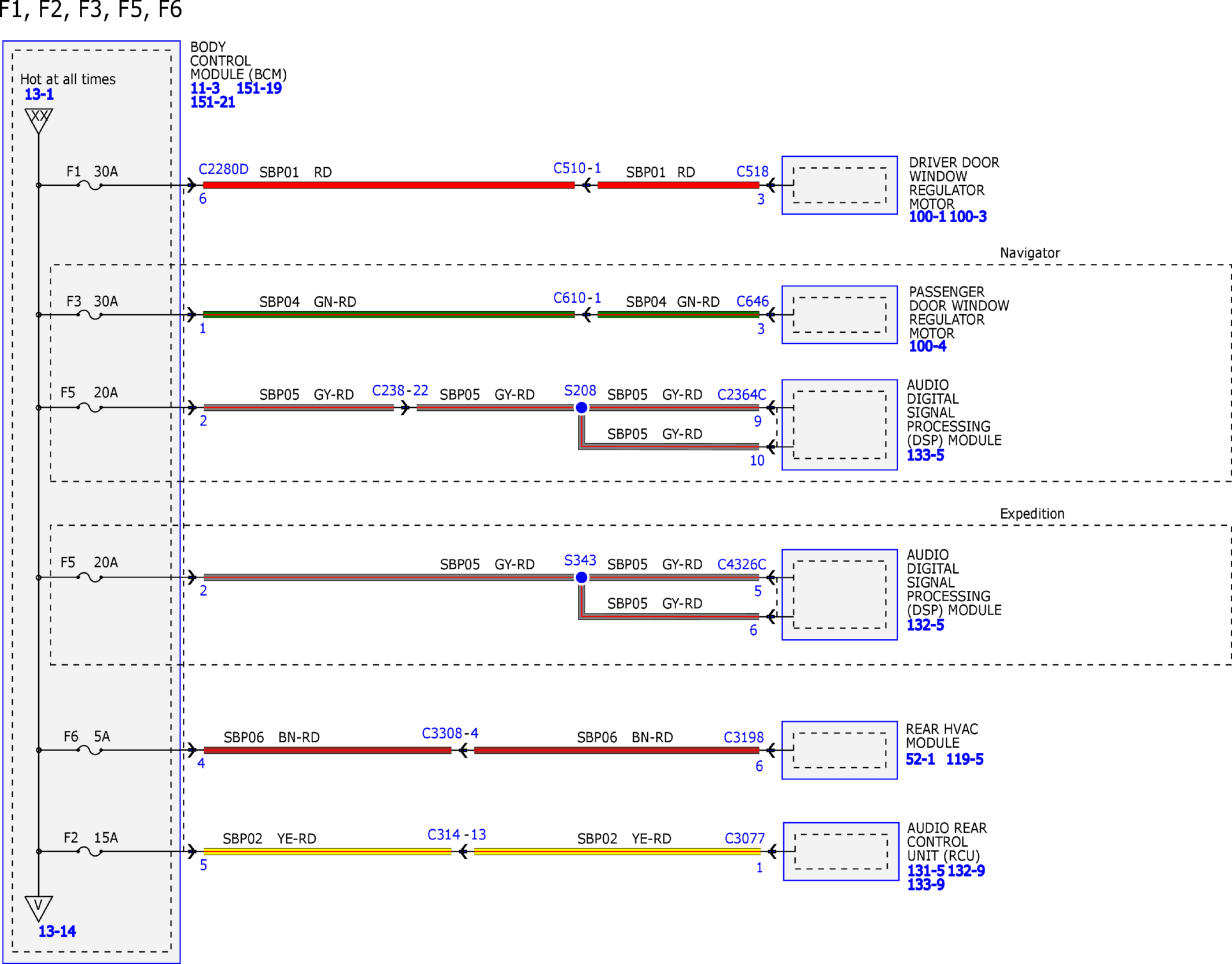

Fig 5: Power Distribution Wiring Diagrams (5 Of 40)

GFDW9639

Courtesy of FORD MOTOR COMPANY

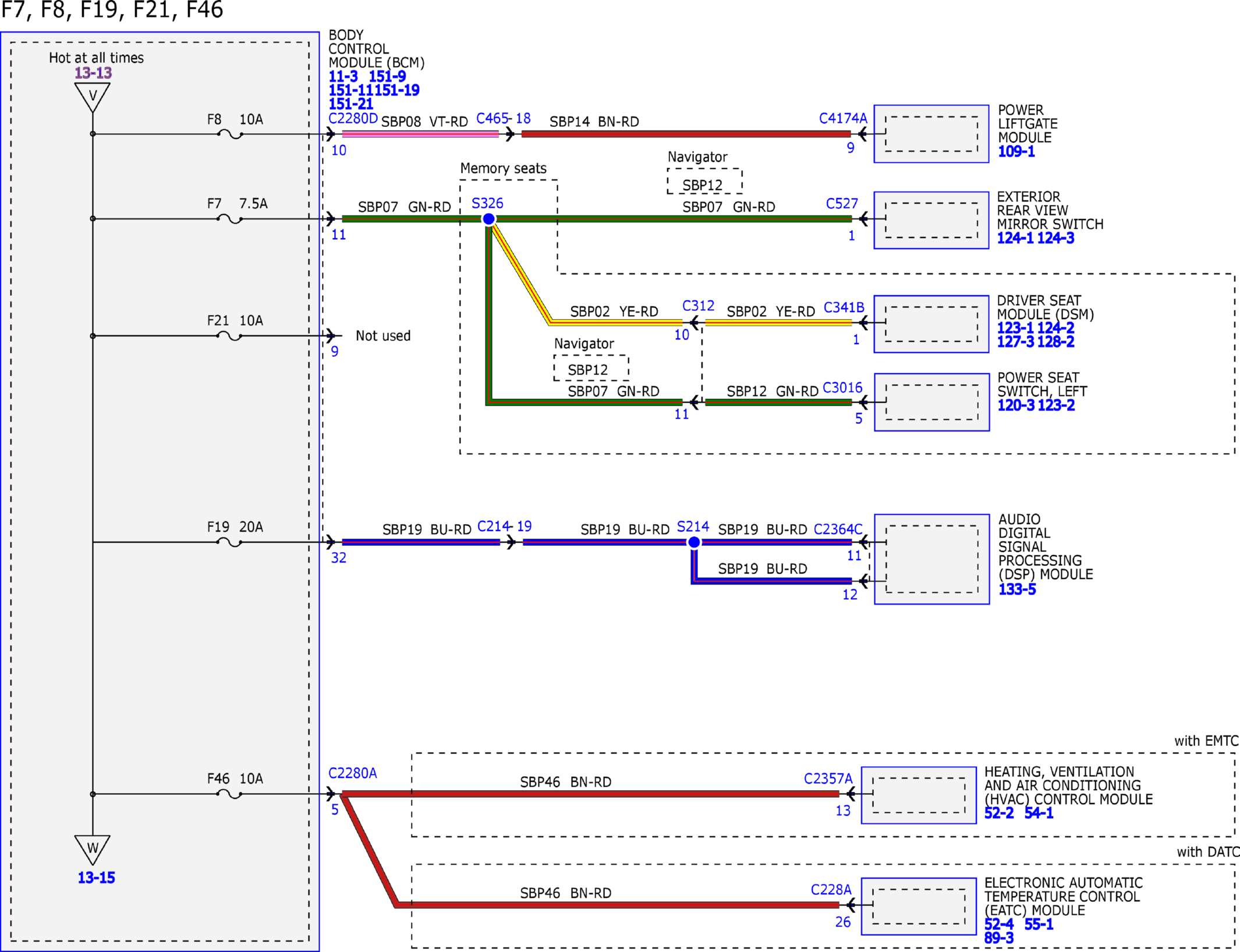

Fig 6: Power Distribution Wiring Diagrams (6 Of 40)

GFDW9640

Courtesy of FORD MOTOR COMPANY

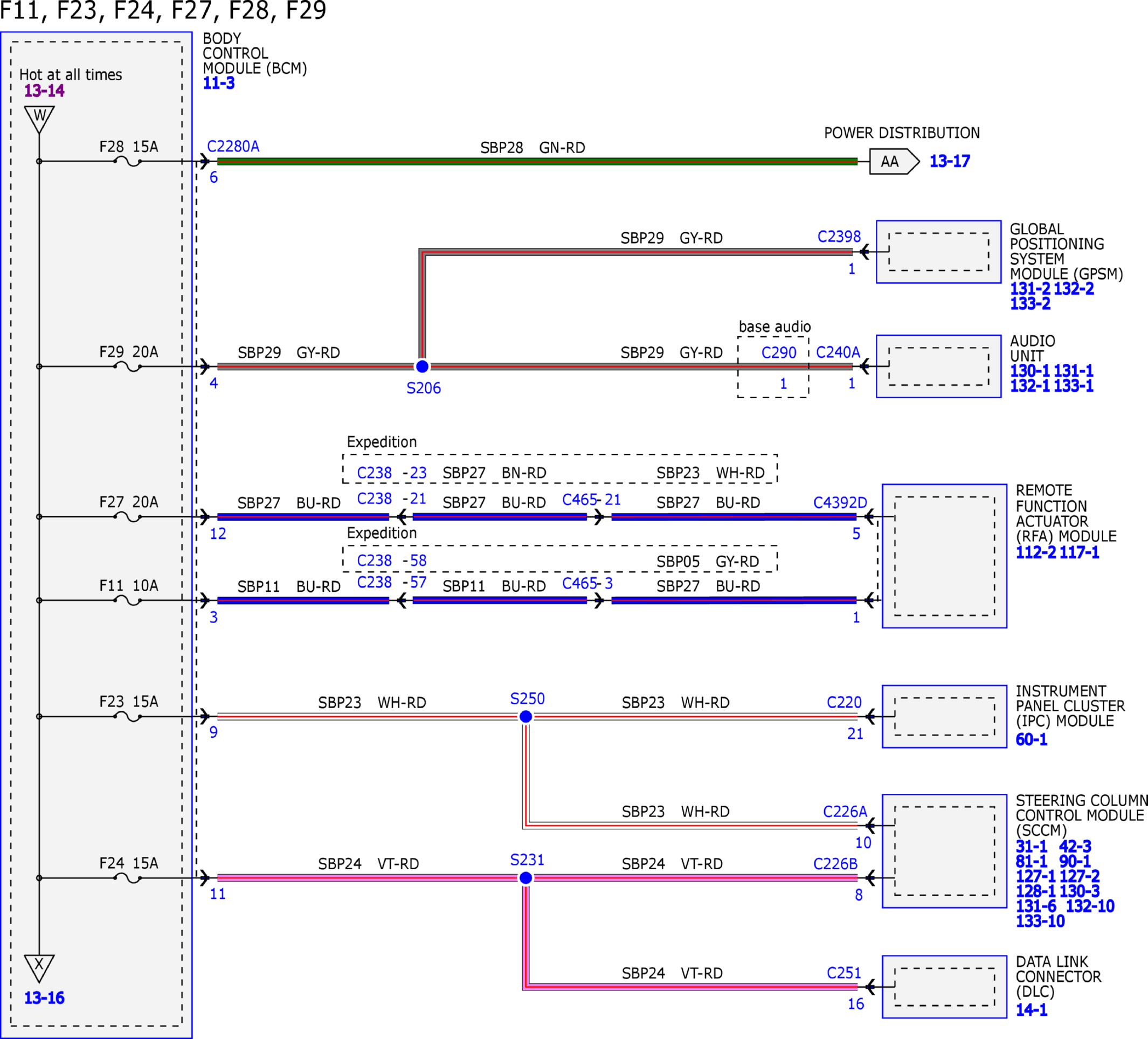

Fig 7: Power Distribution Wiring Diagrams (7 Of 40)

GFDW9641

Courtesy of FORD MOTOR COMPANY

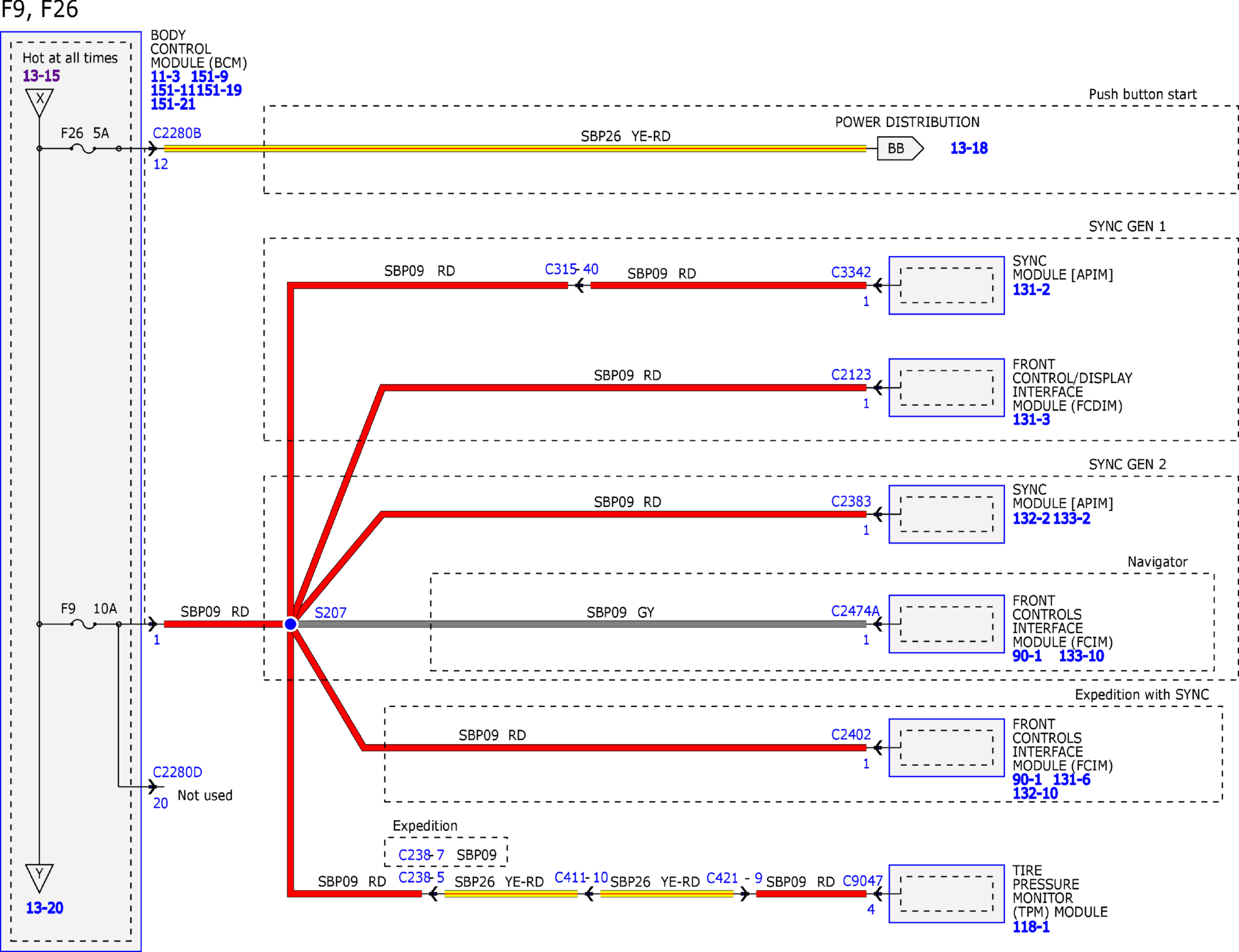

Fig 8: Power Distribution Wiring Diagrams (8 Of 40)

GFDW9642

Courtesy of FORD MOTOR COMPANY

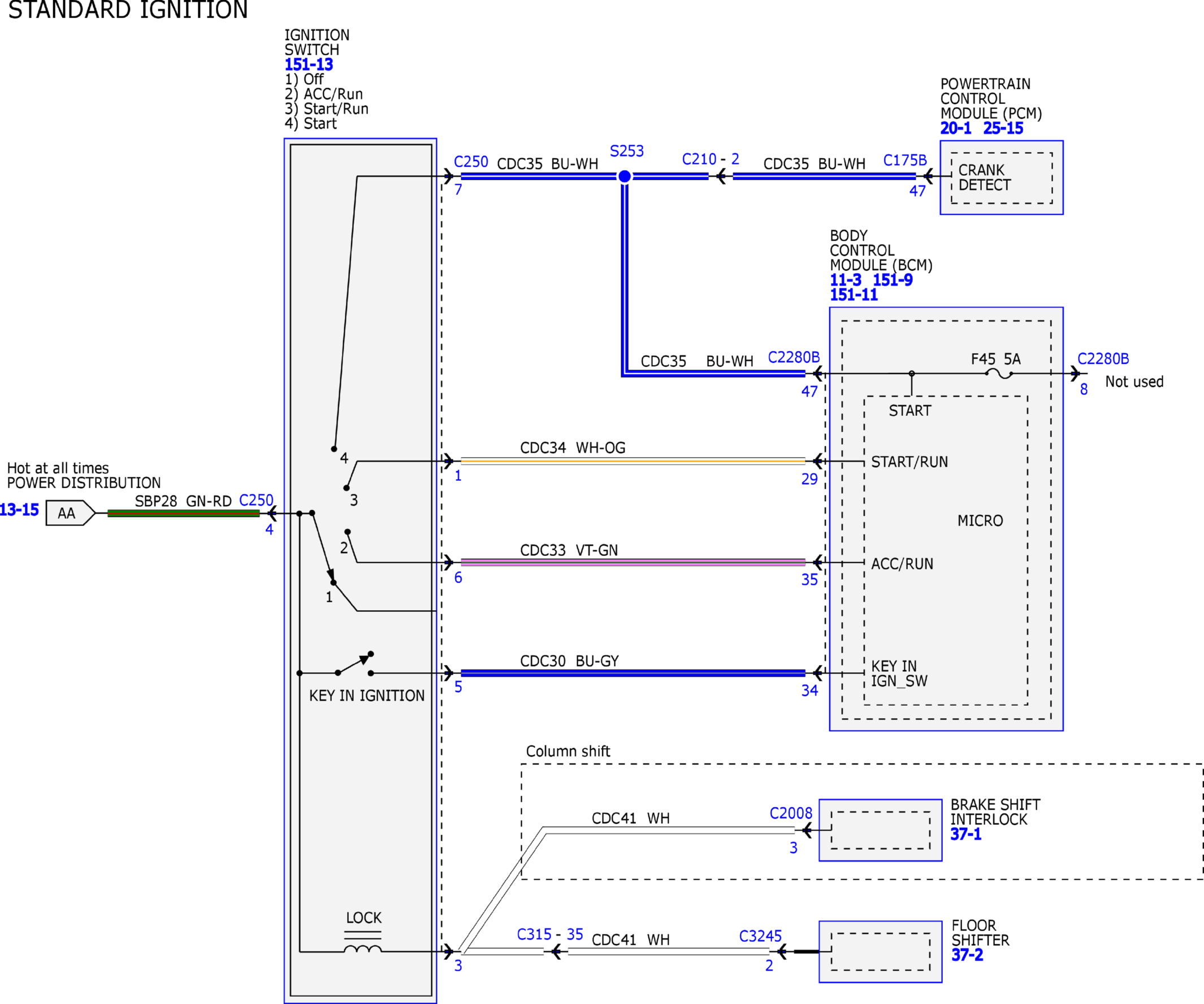

Fig 9: Power Distribution Wiring Diagrams (9 Of 40)

GFDW9643

Courtesy of FORD MOTOR COMPANY

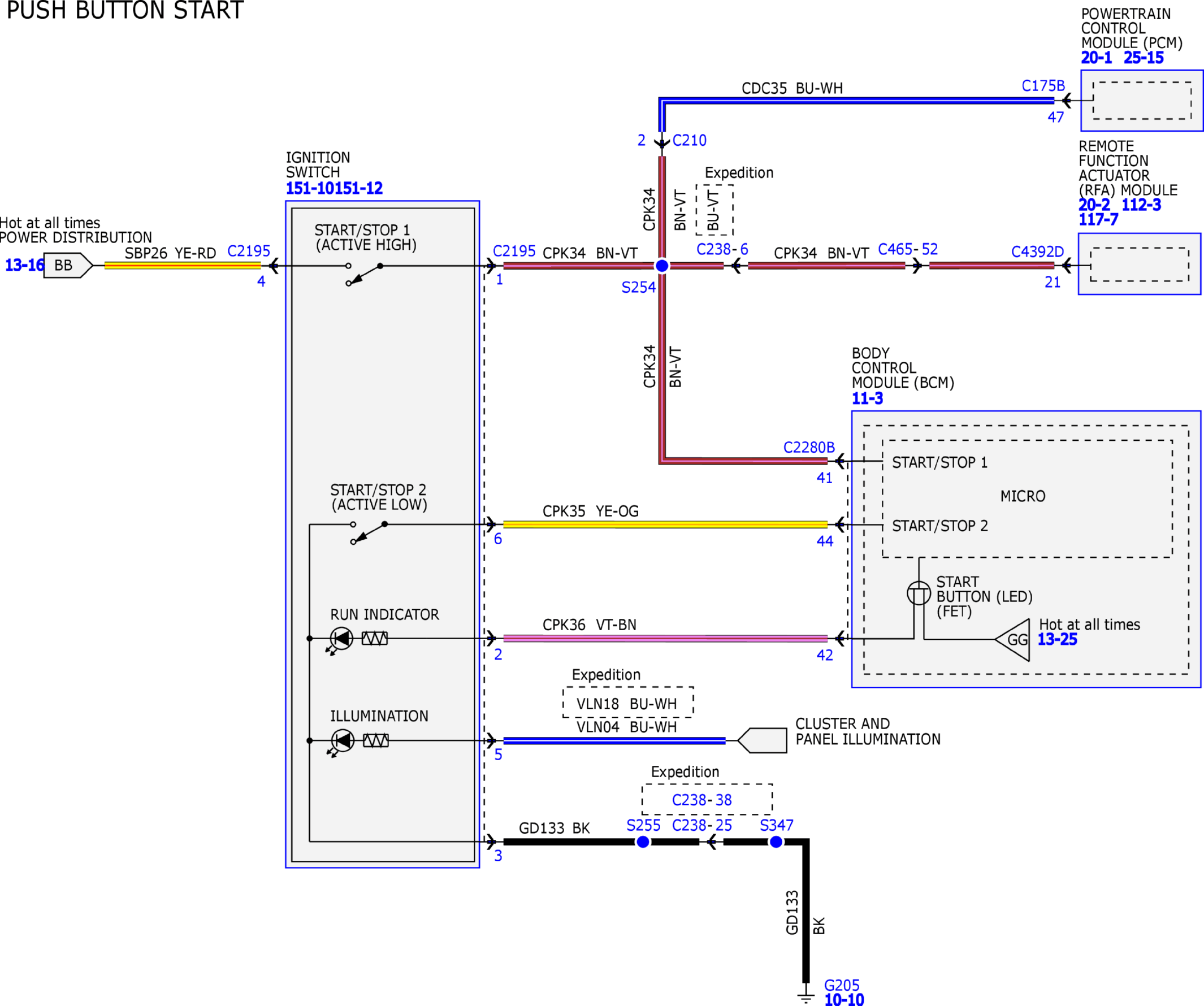

Fig 10: Power Distribution Wiring Diagrams (10 Of 40)

GFDW9644

Courtesy of FORD MOTOR COMPANY

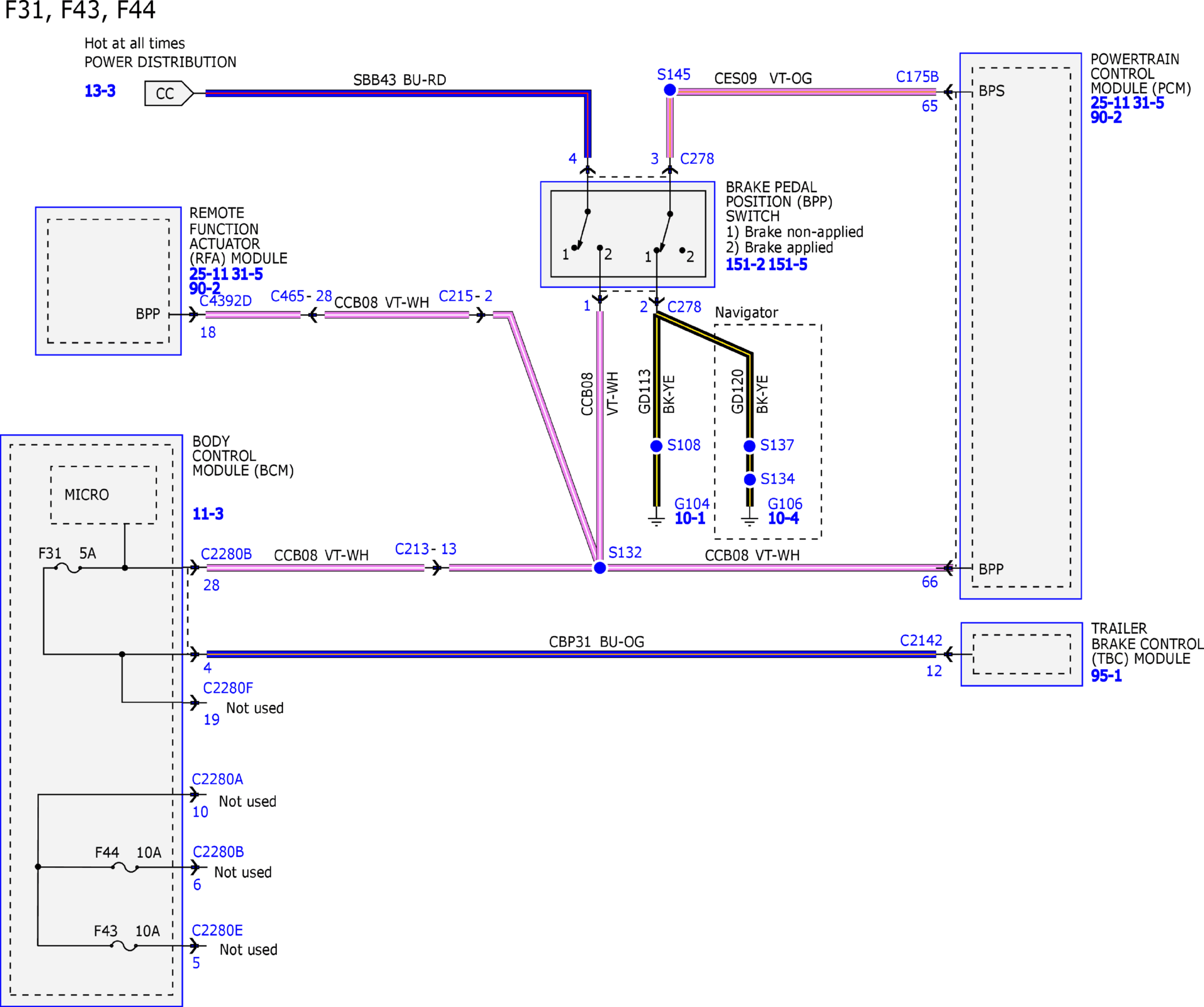

Fig 11: Power Distribution Wiring Diagrams (11 Of 40)

GFDW9645

Courtesy of FORD MOTOR COMPANY

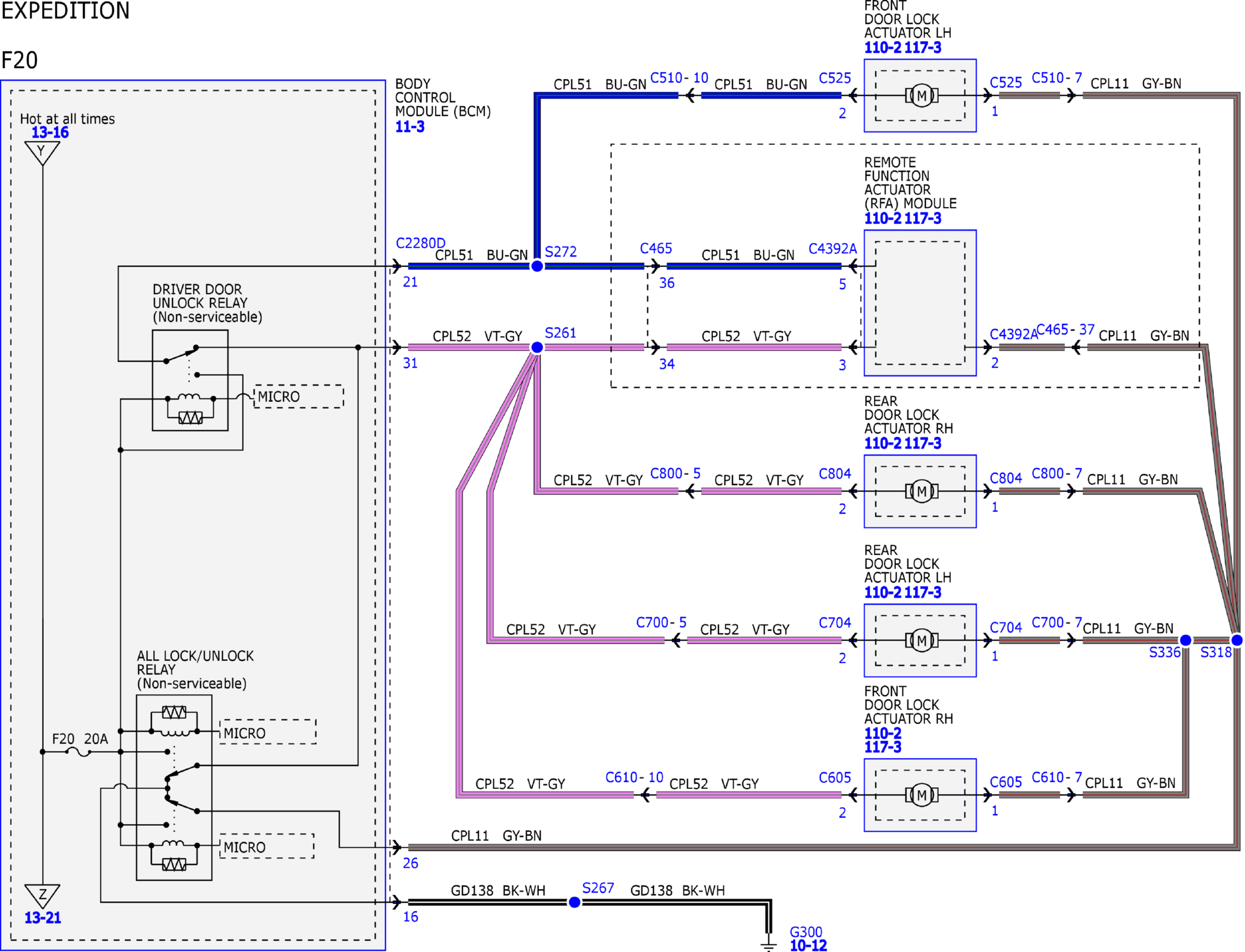

Fig 12: Power Distribution Wiring Diagrams (12 Of 40)

GFDW9646

Courtesy of FORD MOTOR COMPANY

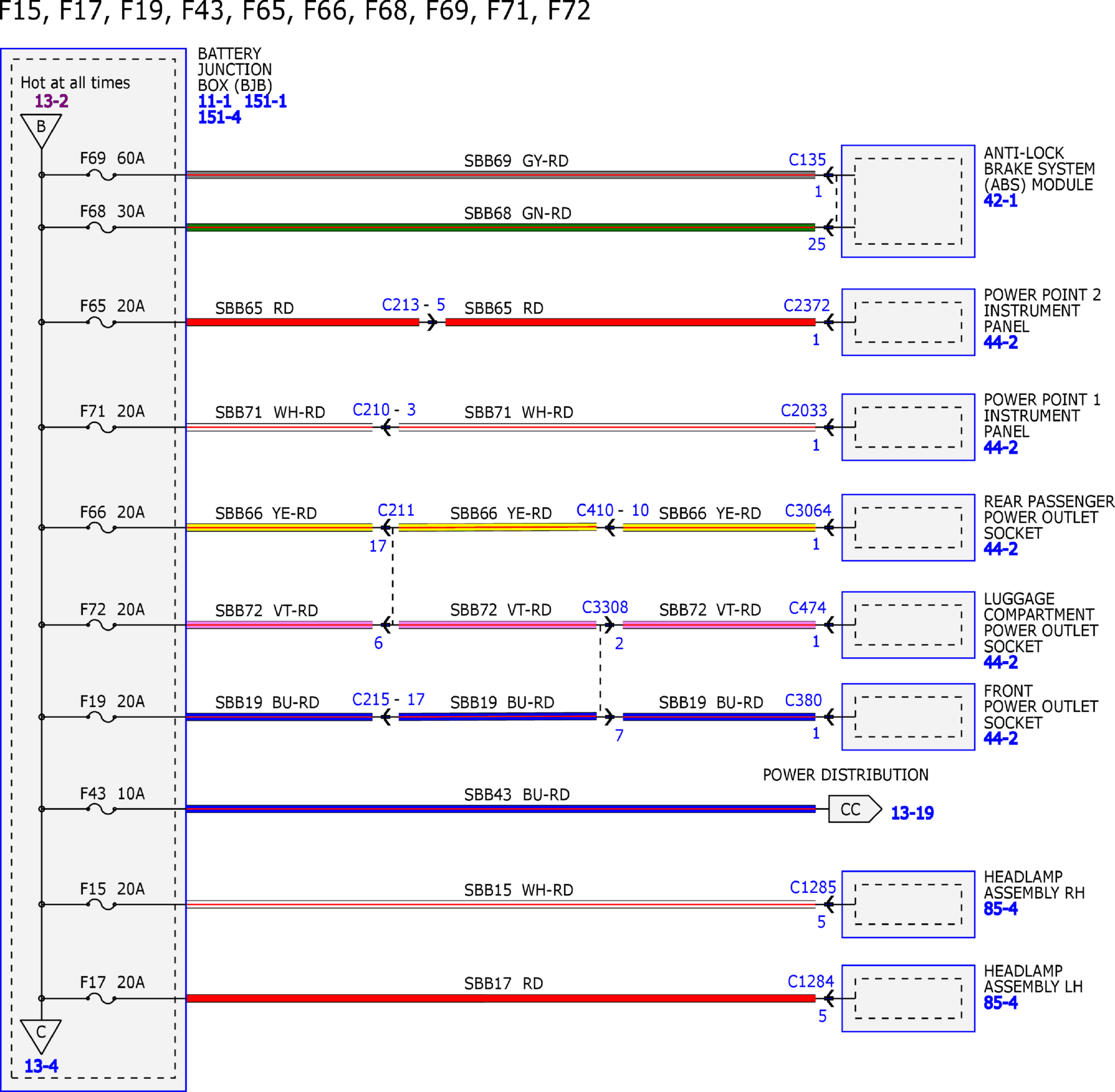

Fig 13: Power Distribution Wiring Diagrams (13 Of 40)

GFDW9647

Courtesy of FORD MOTOR COMPANY

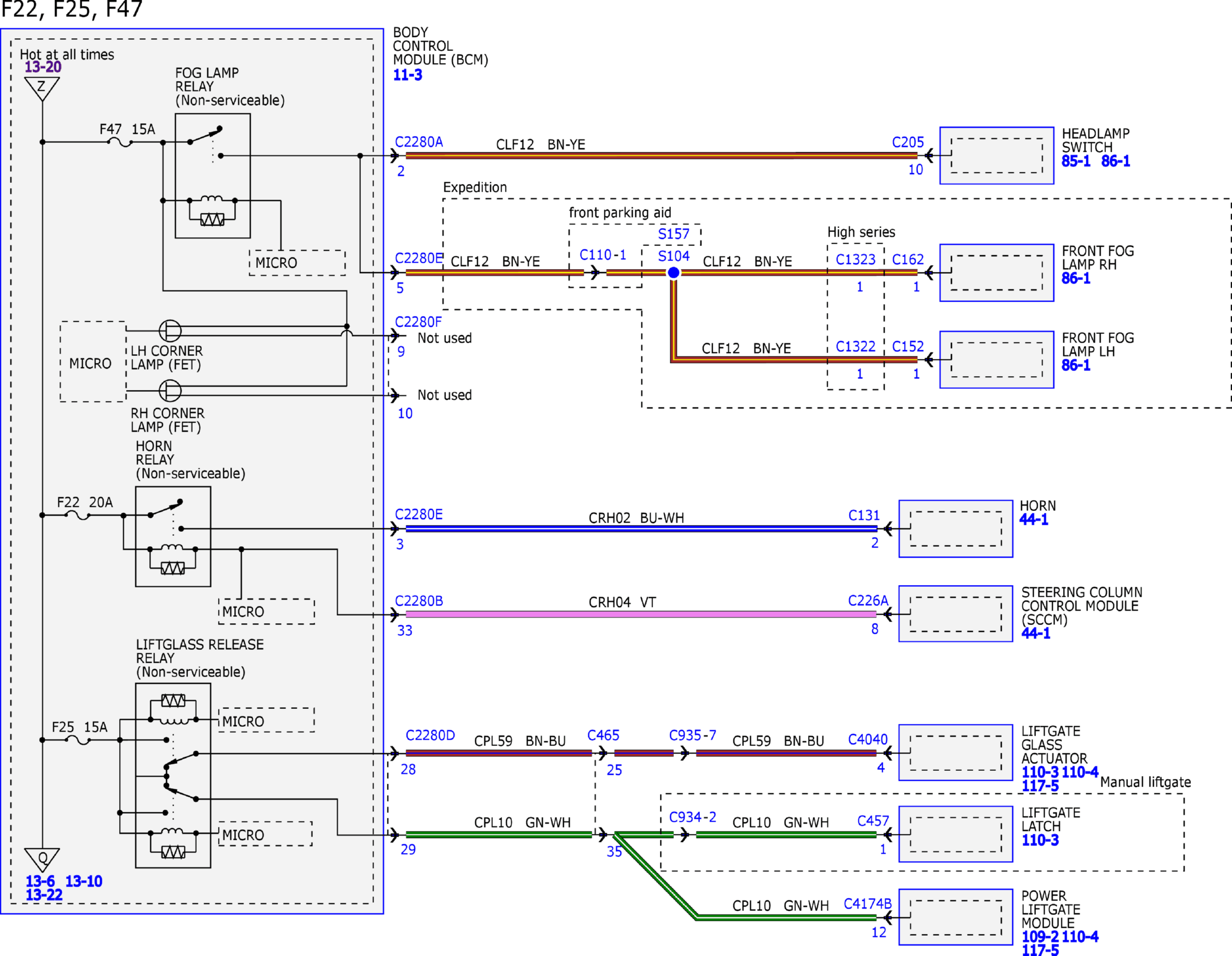

Fig 14: Power Distribution Wiring Diagrams (14 Of 40)

GFDW9648

Courtesy of FORD MOTOR COMPANY

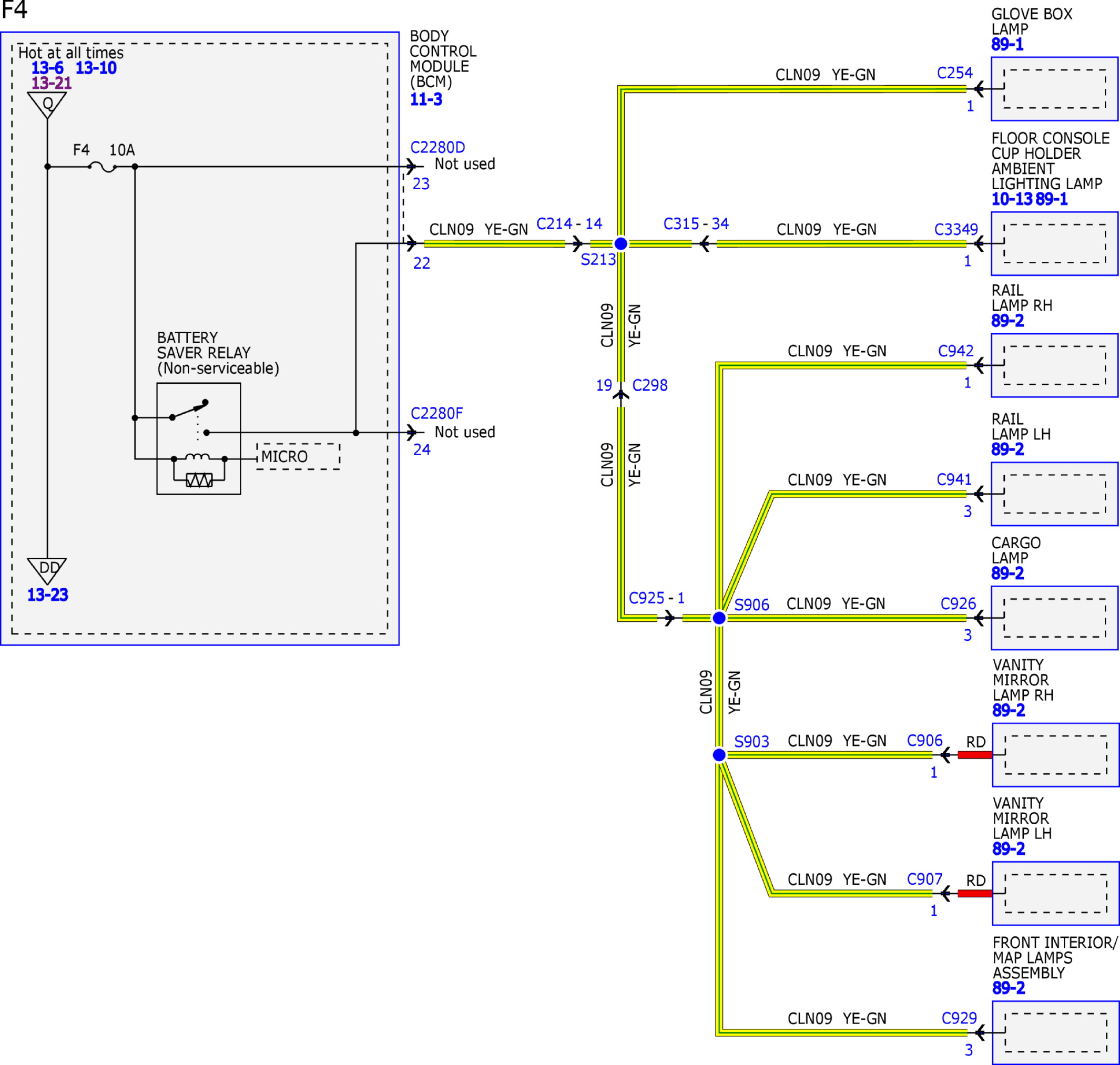

Fig 15: Power Distribution Wiring Diagrams (15 Of 40)

GFDW9649

Courtesy of FORD MOTOR COMPANY

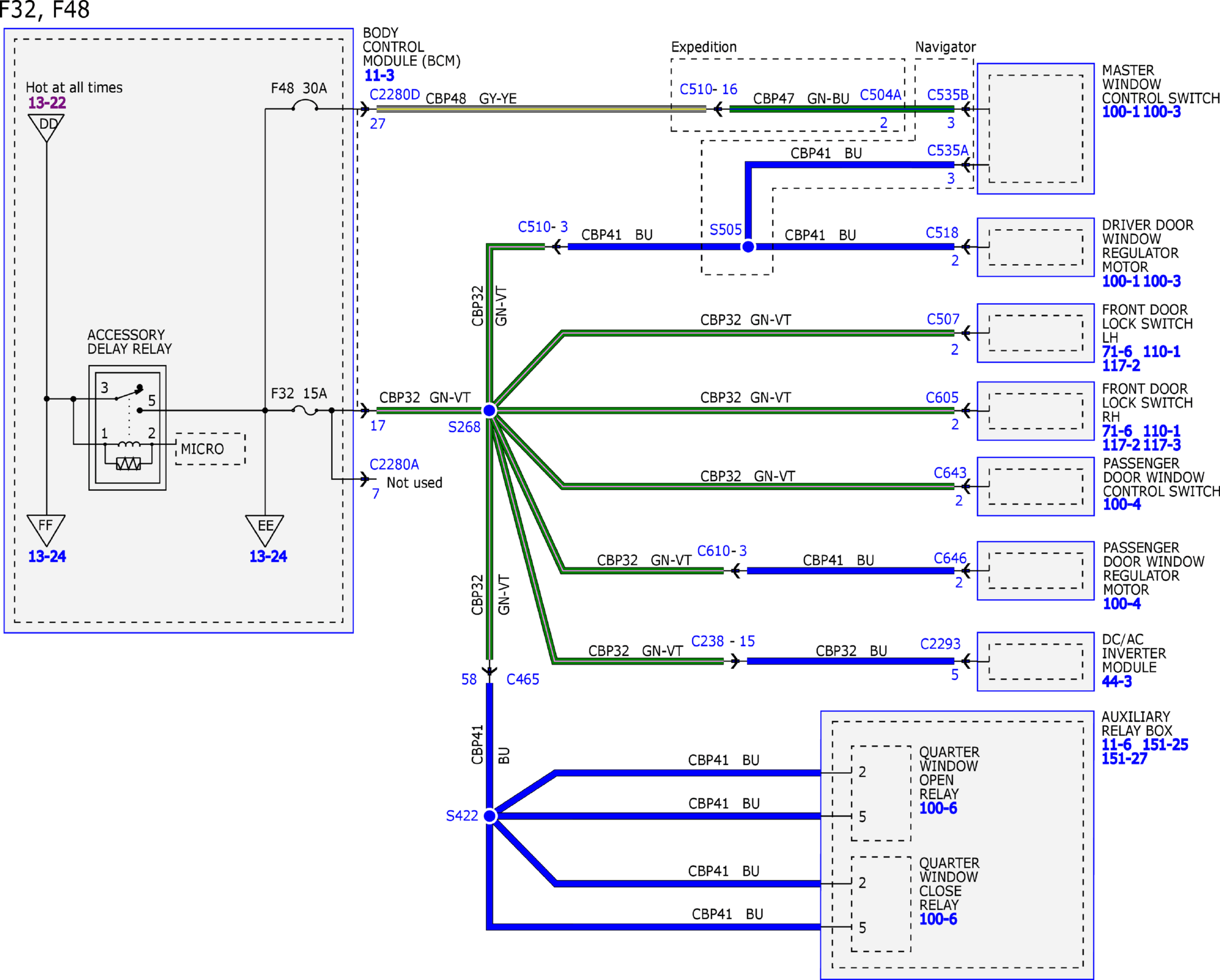

Fig 16: Power Distribution Wiring Diagrams (16 Of 40)

GFDW9650

Courtesy of FORD MOTOR COMPANY

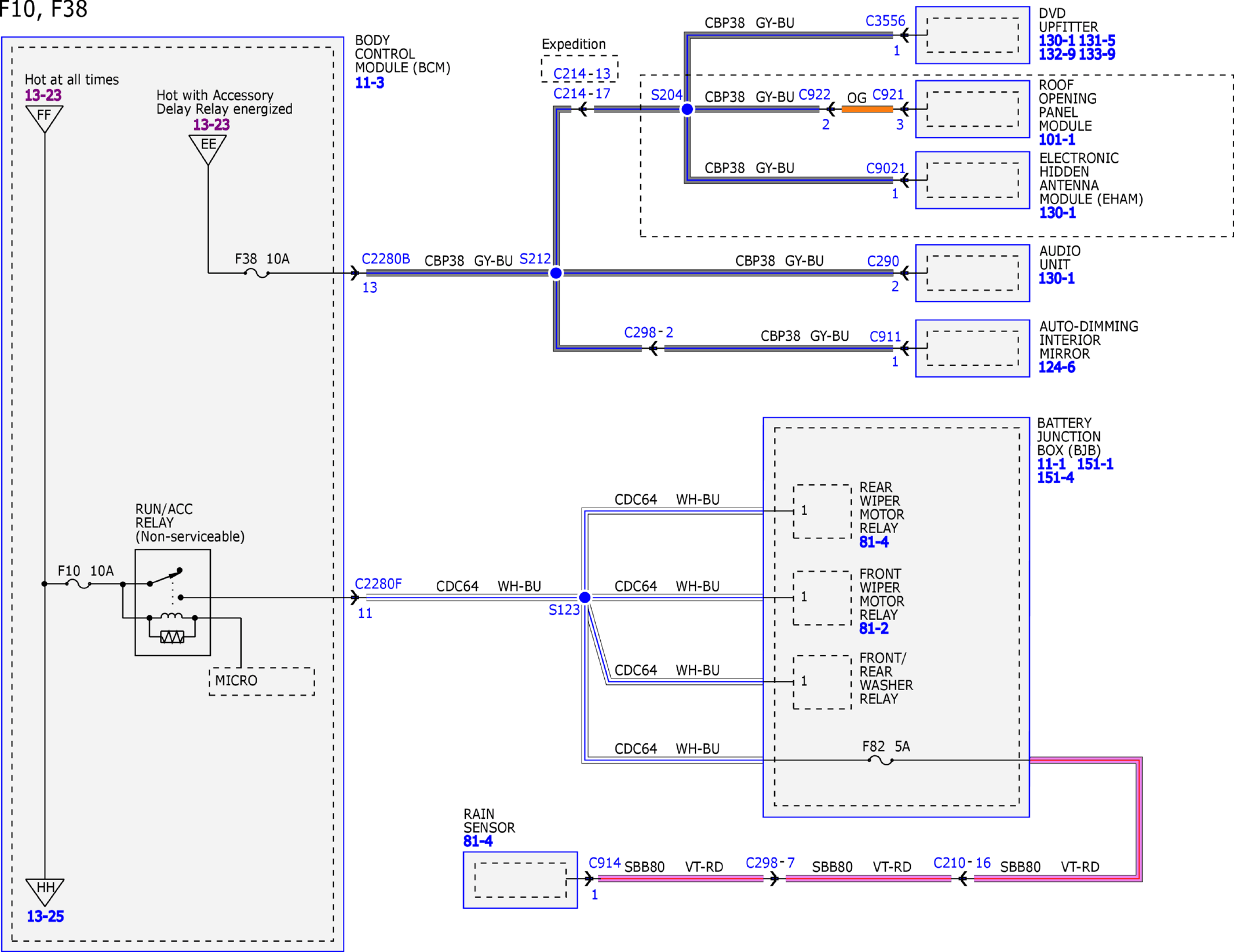

Fig 17: Power Distribution Wiring Diagrams (17 Of 40)

GFDW9651

Courtesy of FORD MOTOR COMPANY

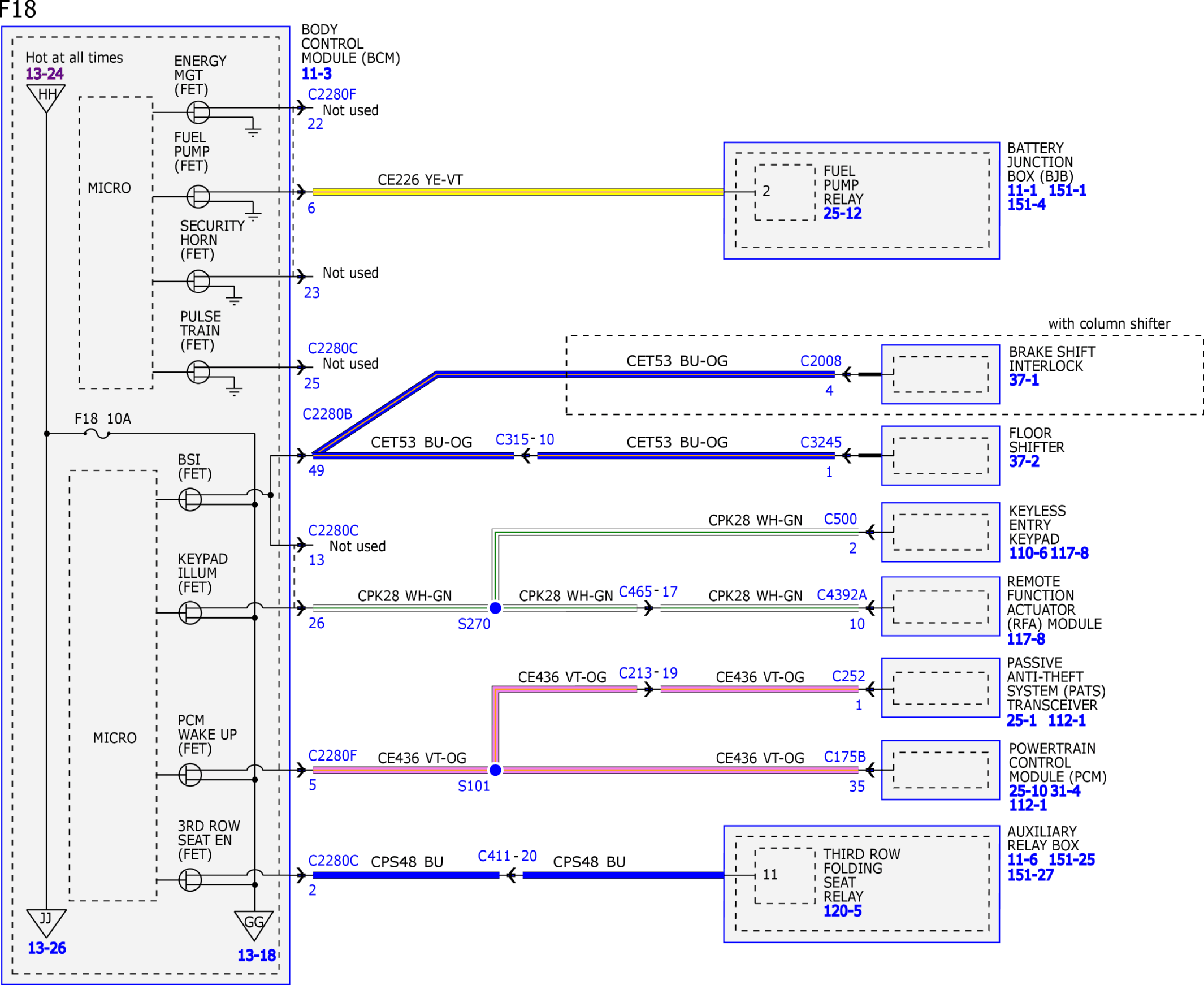

Fig 18: Power Distribution Wiring Diagrams (18 Of 40)

GFDW9652

Courtesy of FORD MOTOR COMPANY

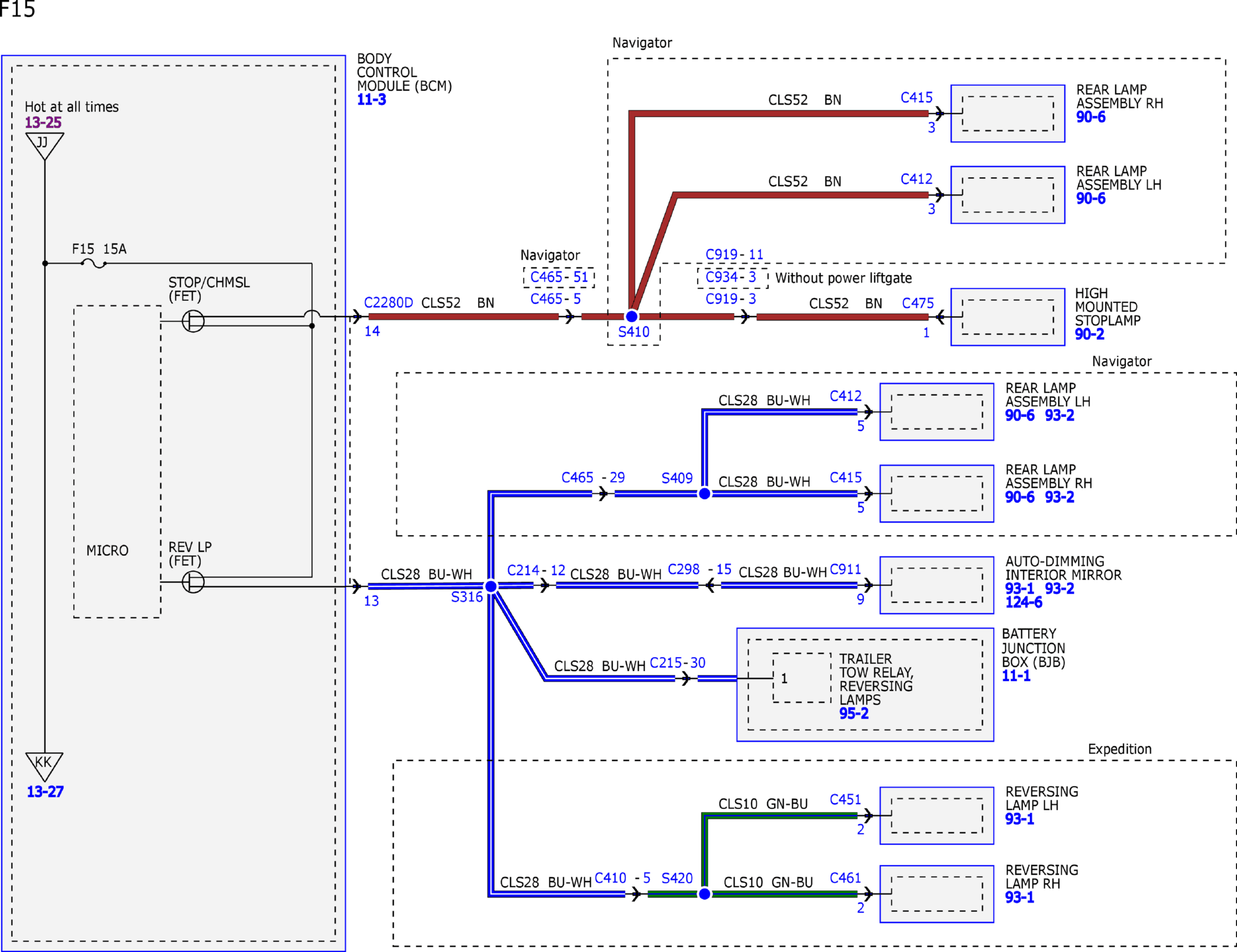

Fig 19: Power Distribution Wiring Diagrams (19 Of 40)

GFDW9653

Courtesy of FORD MOTOR COMPANY

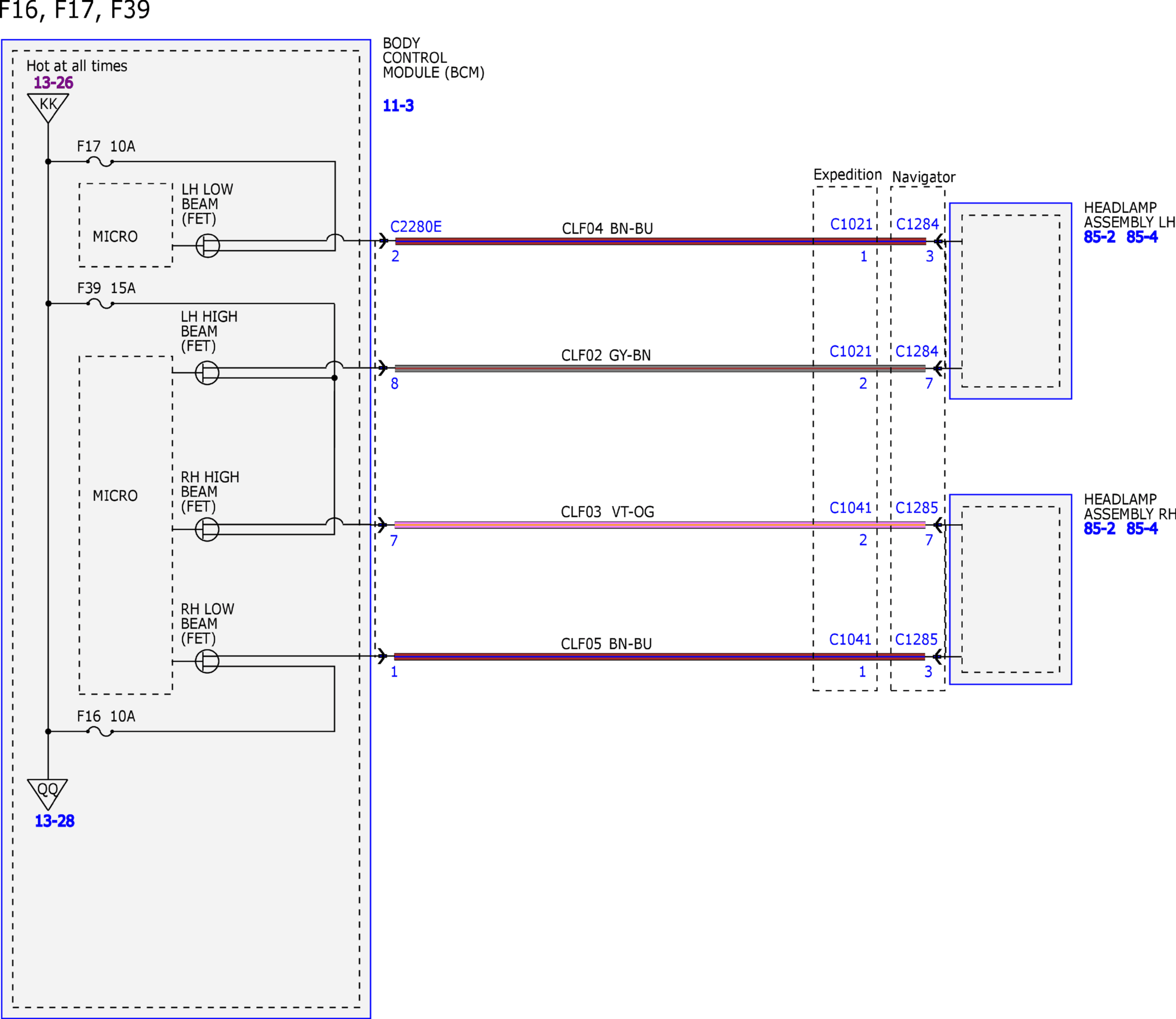

Fig 20: Power Distribution Wiring Diagrams (20 Of 40)

GFDW9654

Courtesy of FORD MOTOR COMPANY

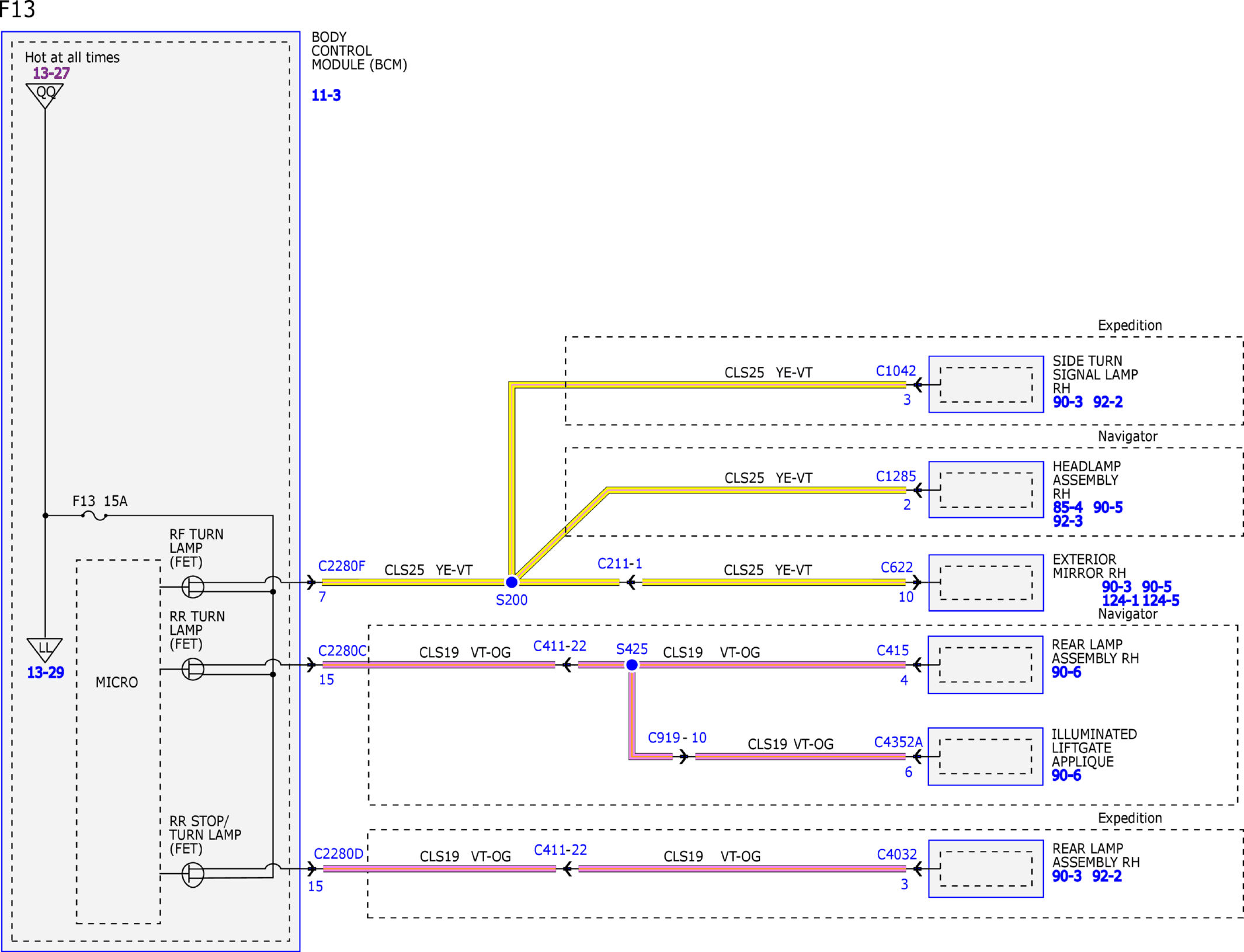

Fig 21: Power Distribution Wiring Diagrams (21 Of 40)

GFDW9655

Courtesy of FORD MOTOR COMPANY

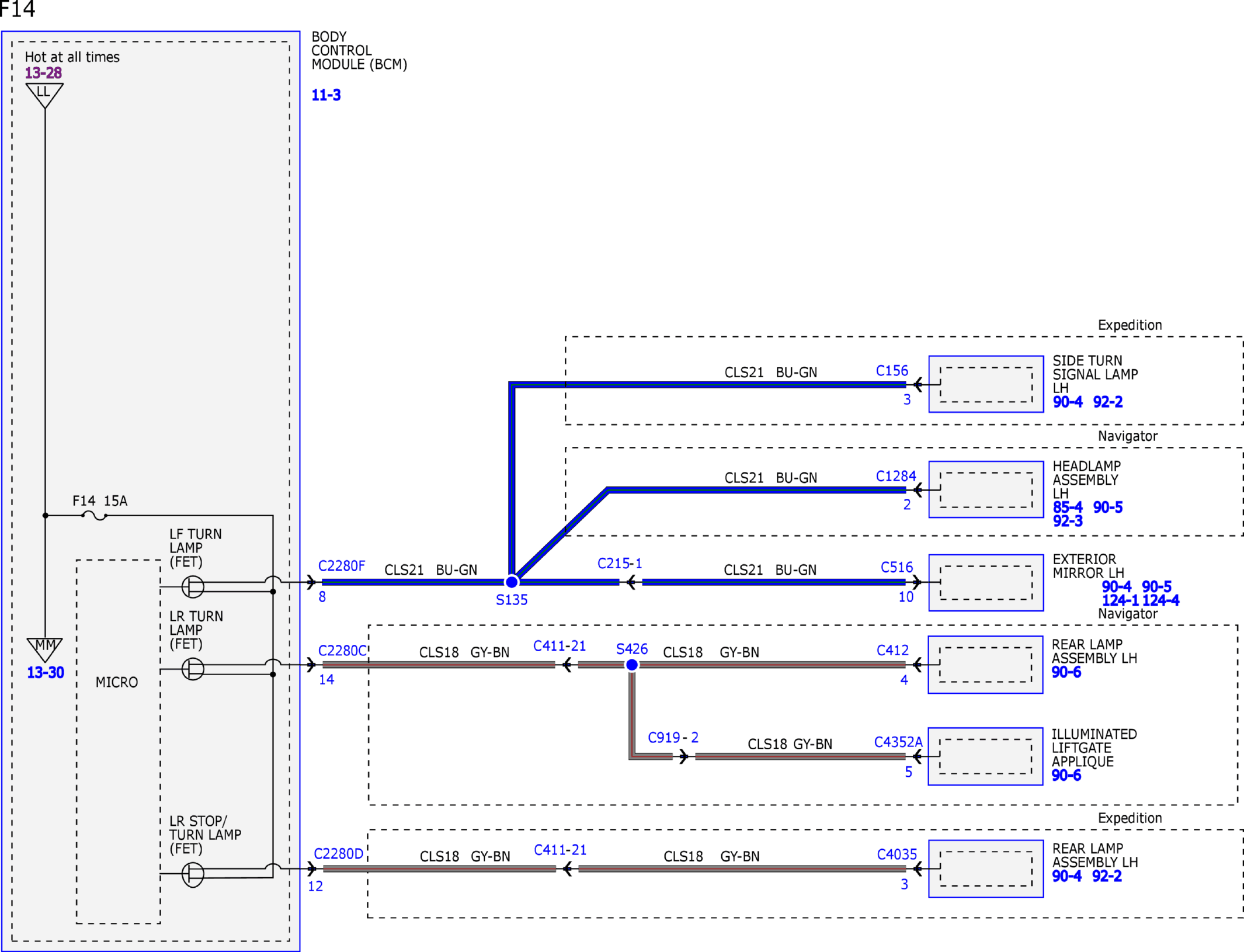

Fig 22: Power Distribution Wiring Diagrams (22 Of 40)

GFDW9656

Courtesy of FORD MOTOR COMPANY

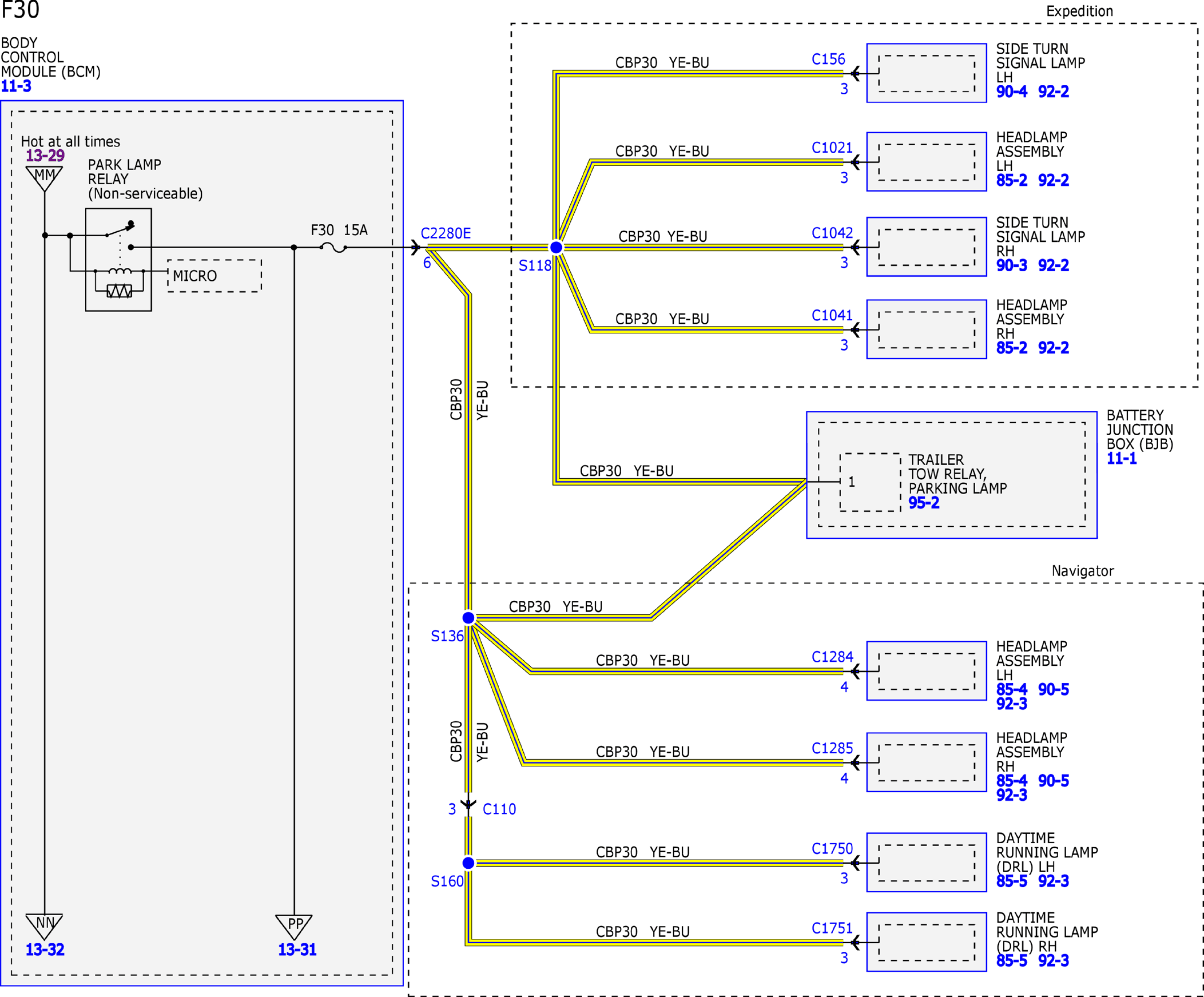

Fig 23: Power Distribution Wiring Diagrams (23 Of 40)

GFDW9657

Courtesy of FORD MOTOR COMPANY

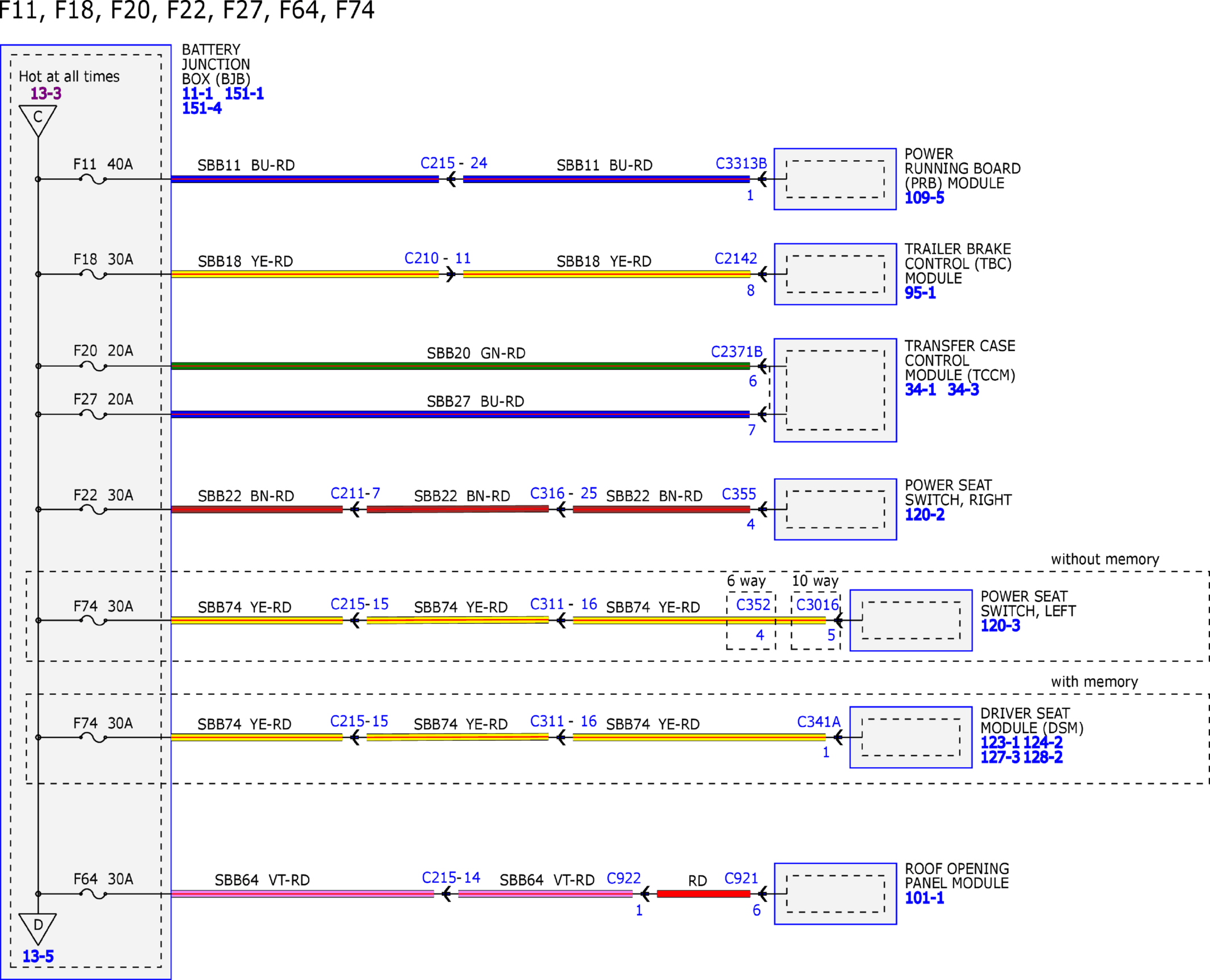

Fig 24: Power Distribution Wiring Diagrams (24 Of 40)

GFDW9658

Courtesy of FORD MOTOR COMPANY

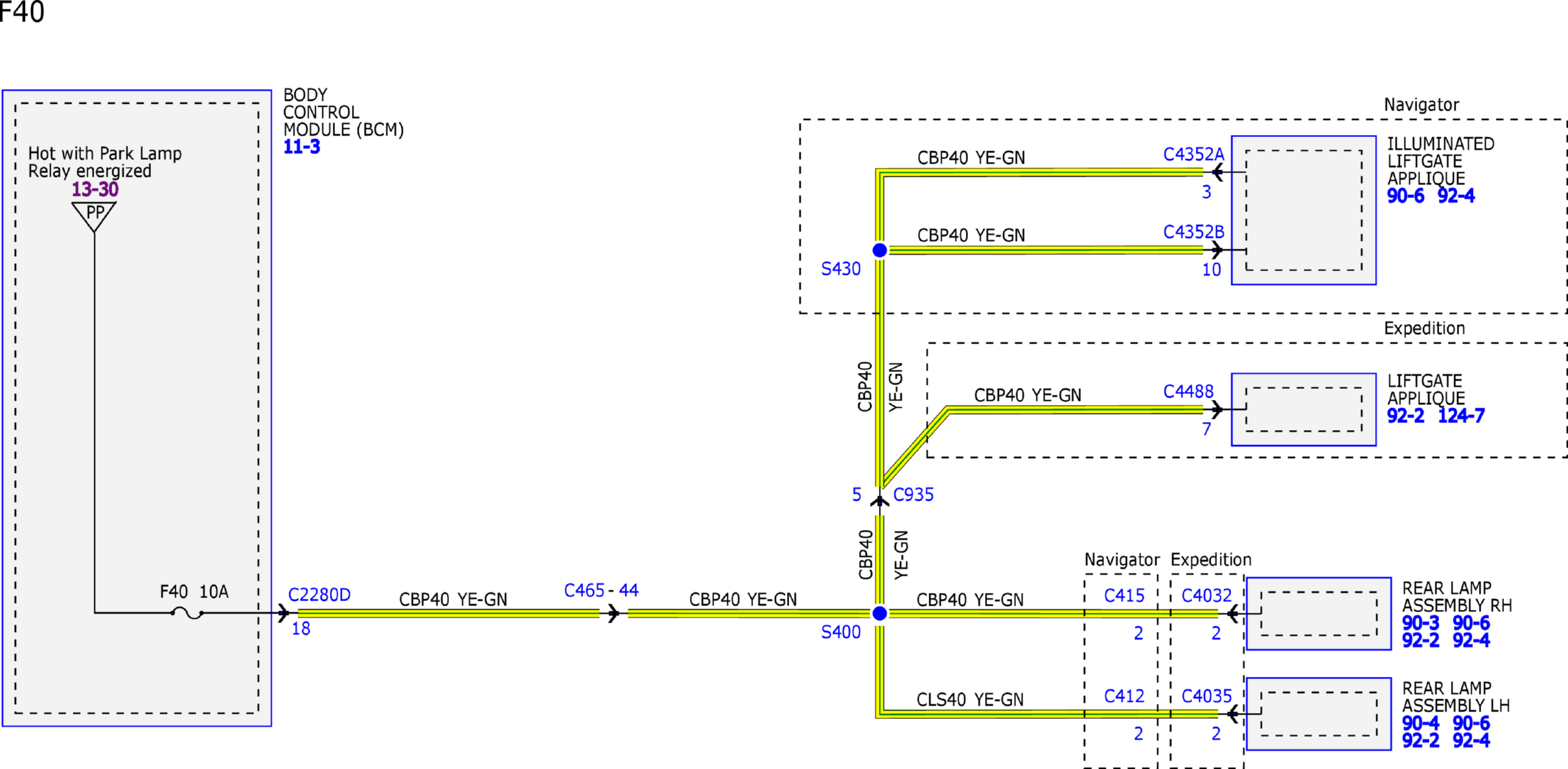

Fig 25: Power Distribution Wiring Diagrams (25 Of 40)

GFDW9659

Courtesy of FORD MOTOR COMPANY

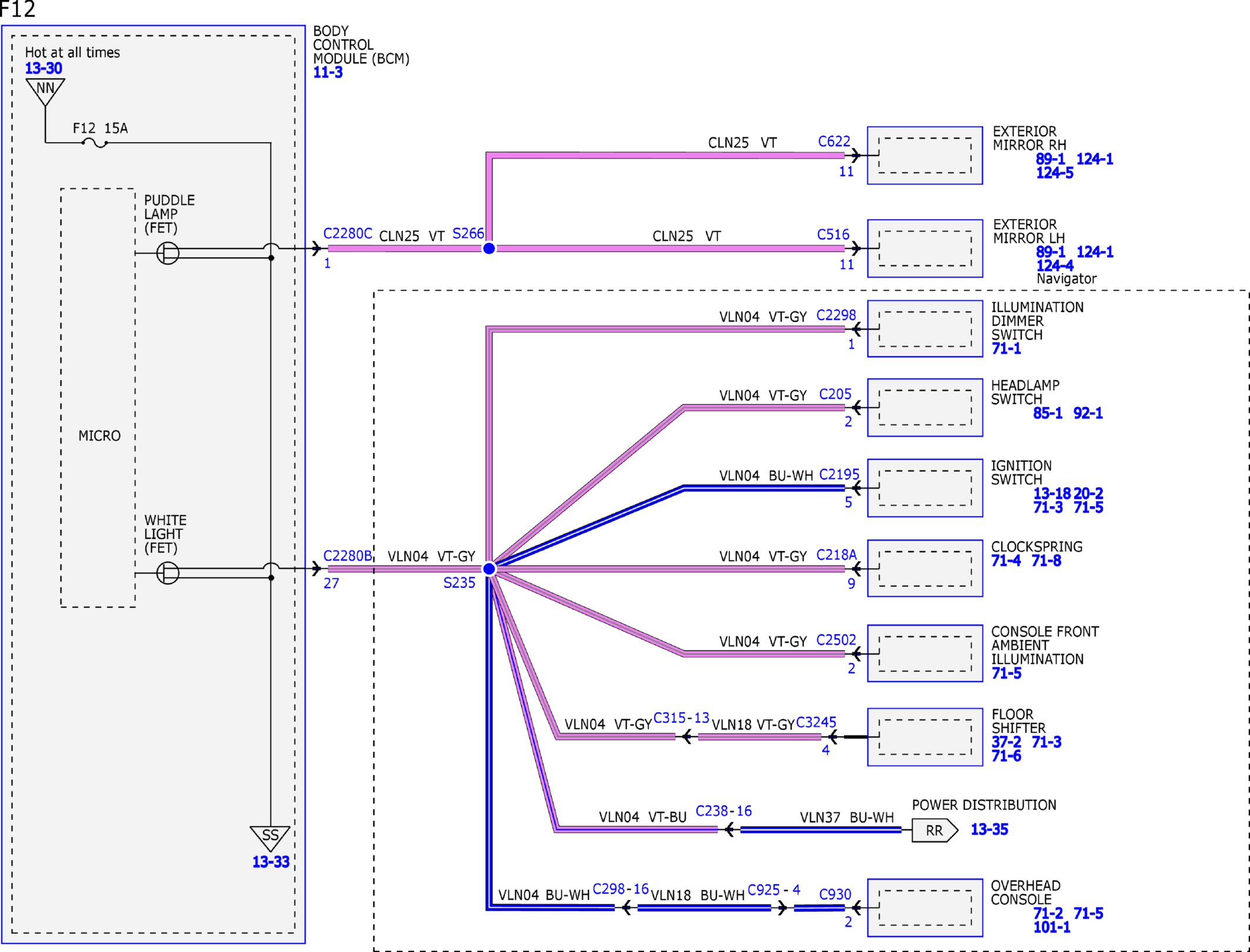

Fig 26: Power Distribution Wiring Diagrams (26 Of 40)

GFDW9660

Courtesy of FORD MOTOR COMPANY

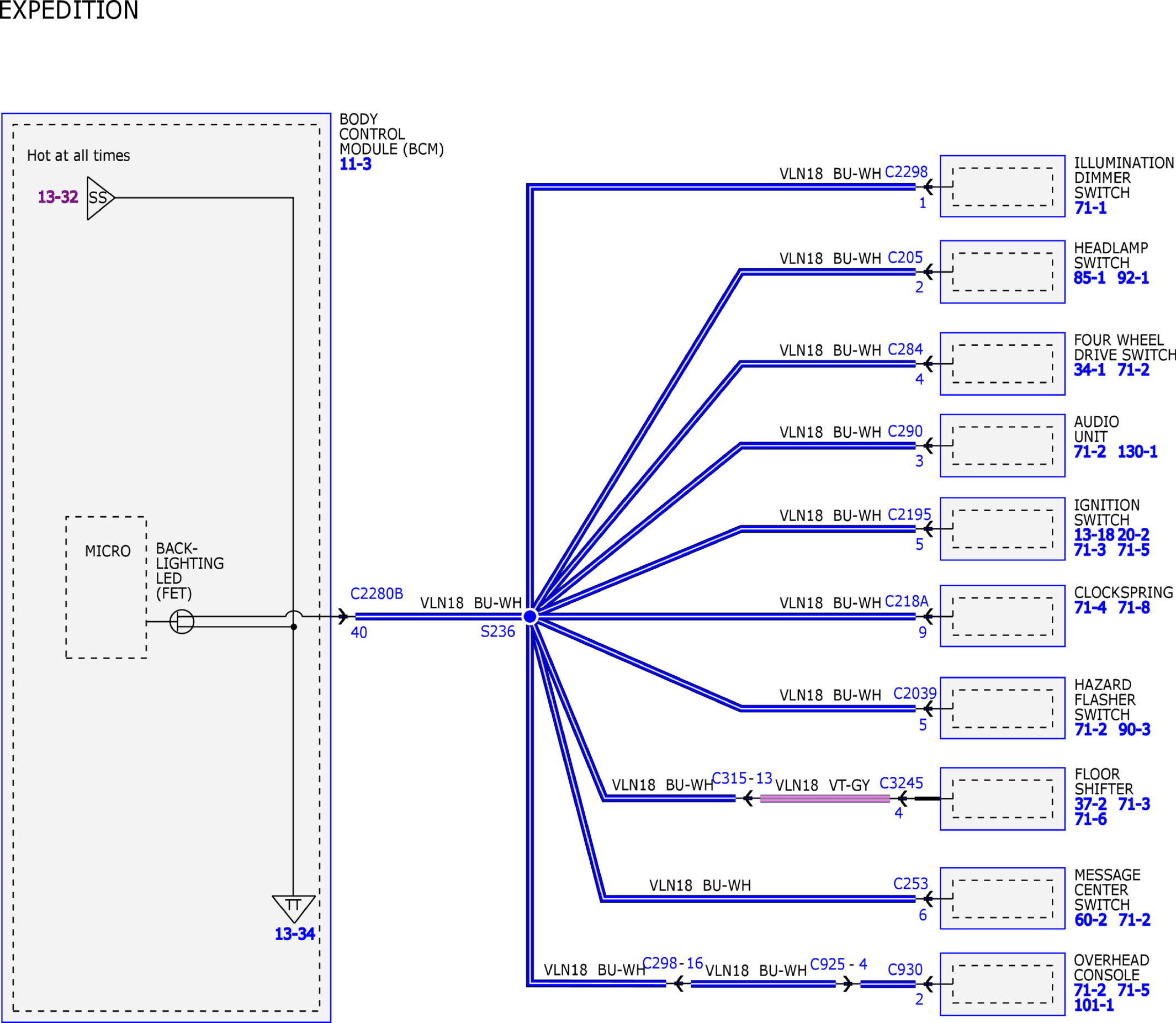

Fig 27: Power Distribution Wiring Diagrams (27 Of 40)

GFDW9661

Courtesy of FORD MOTOR COMPANY

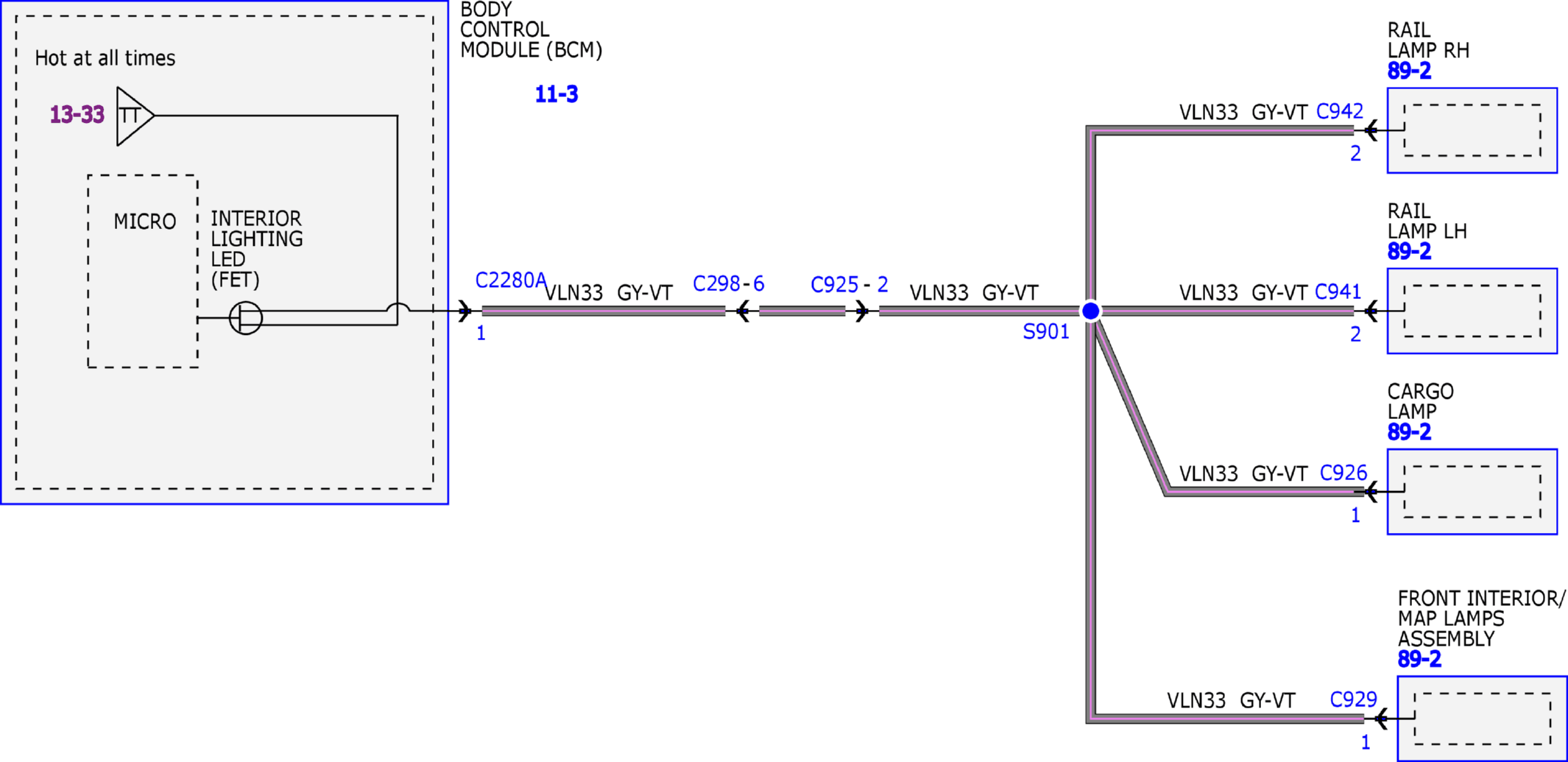

Fig 28: Power Distribution Wiring Diagrams (28 Of 40)

GFDW9662

Courtesy of FORD MOTOR COMPANY

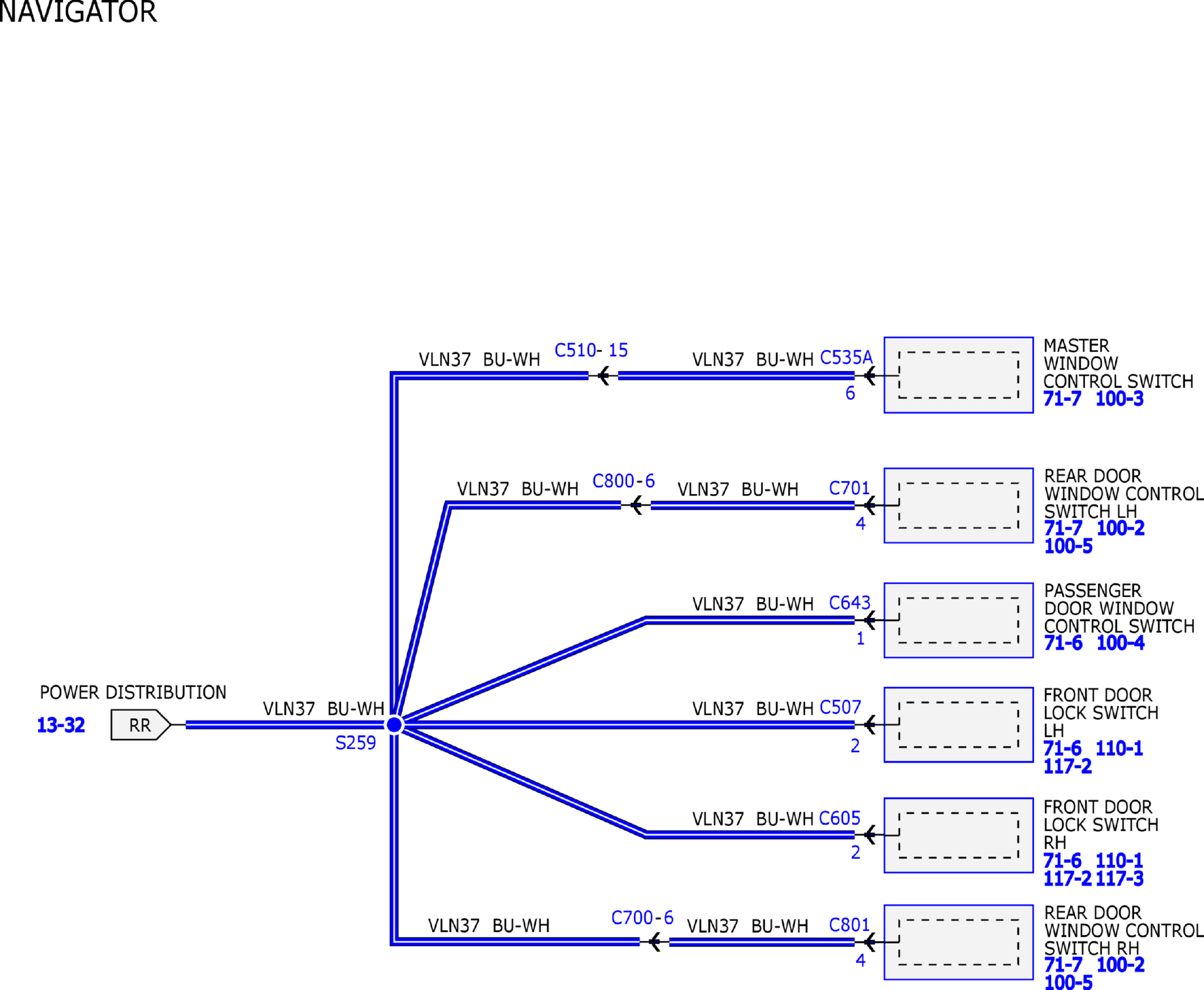

Fig 29: Power Distribution Wiring Diagrams (29 Of 40)

GFDW9663

Courtesy of FORD MOTOR COMPANY

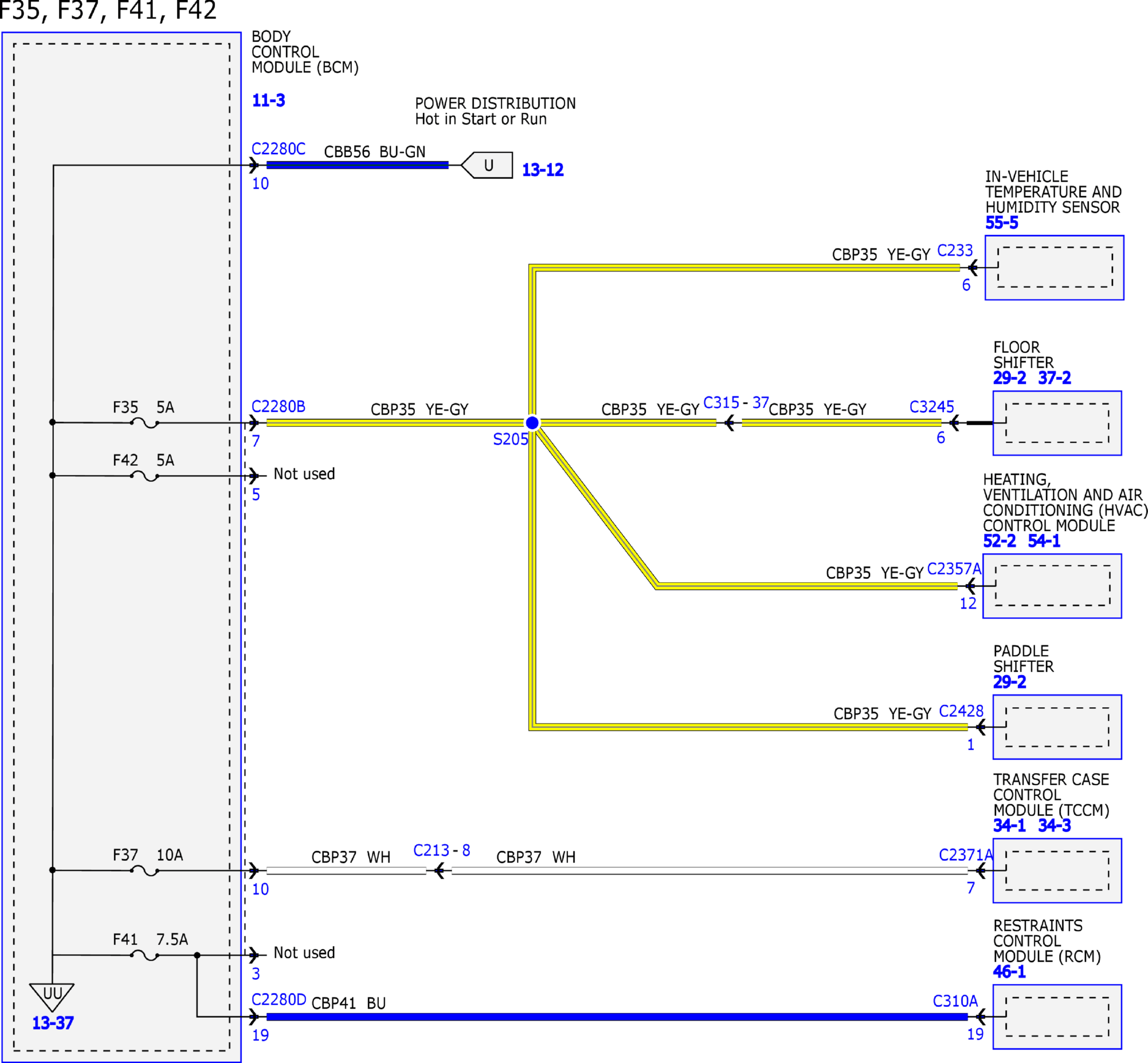

Fig 30: Power Distribution Wiring Diagrams (30 Of 40)

GFDW9664

Courtesy of FORD MOTOR COMPANY

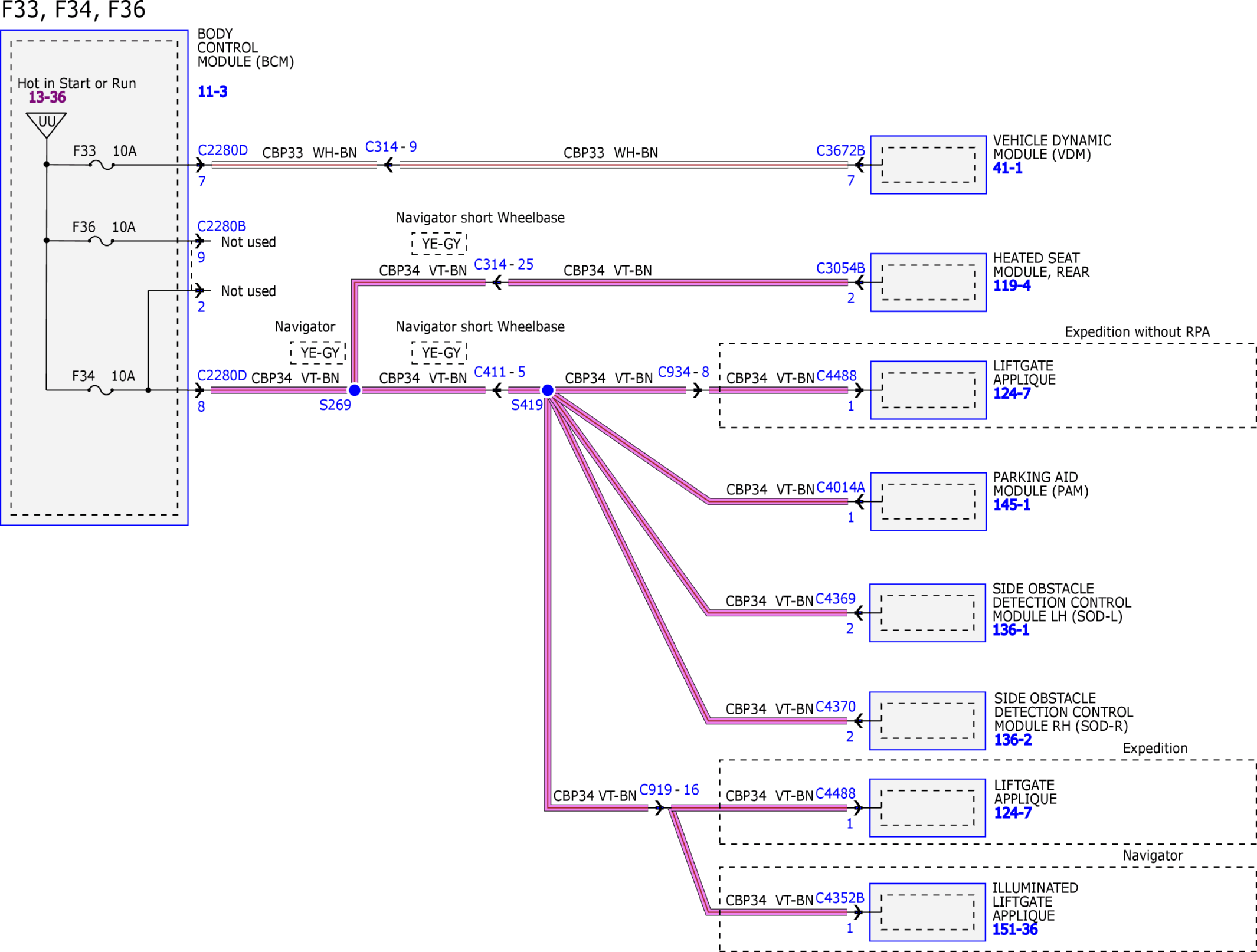

Fig 31: Power Distribution Wiring Diagrams (31 Of 40)

GFDW9665

Courtesy of FORD MOTOR COMPANY

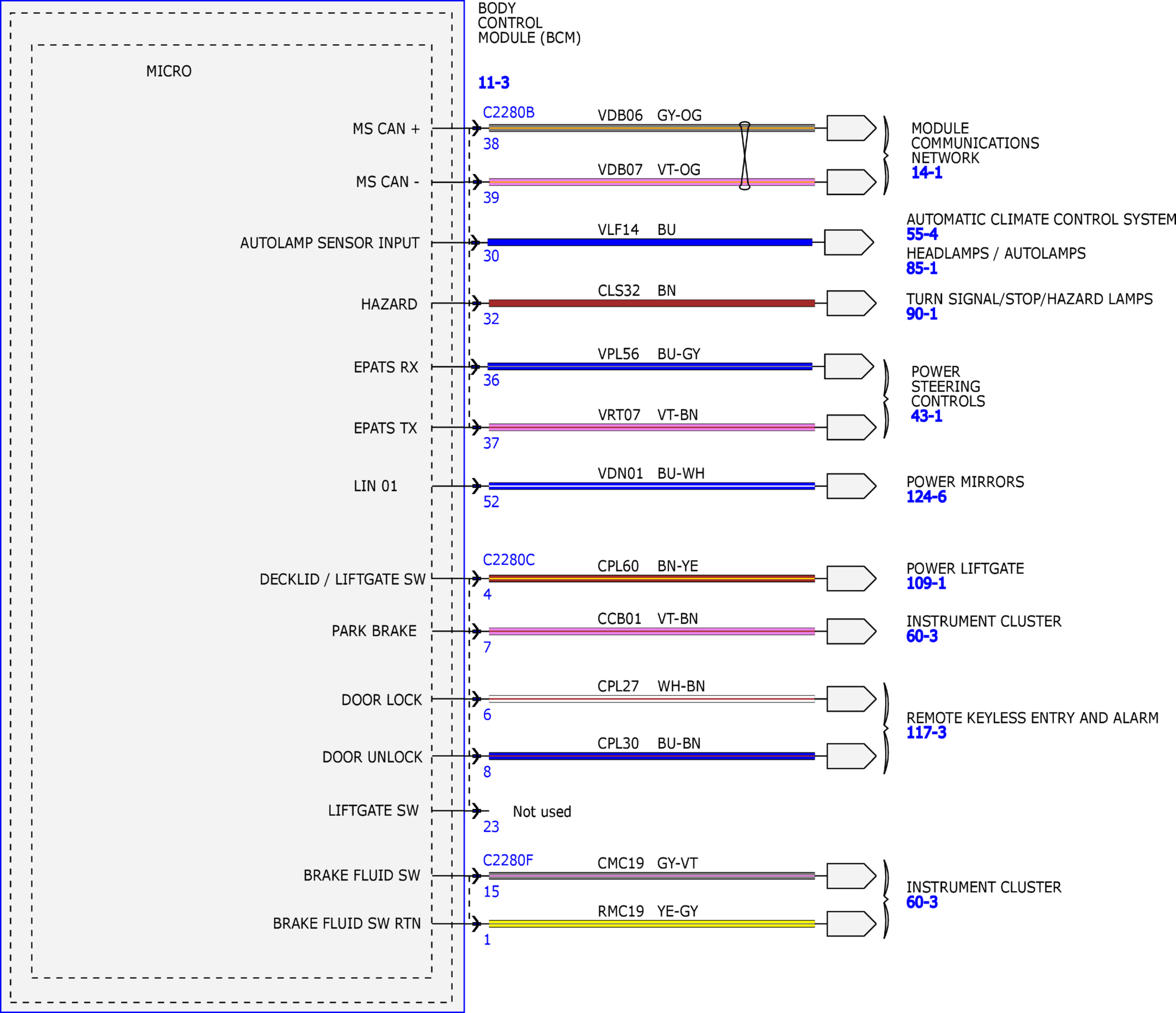

Fig 32: Power Distribution Wiring Diagrams (32 Of 40)

GFDW9666

Courtesy of FORD MOTOR COMPANY

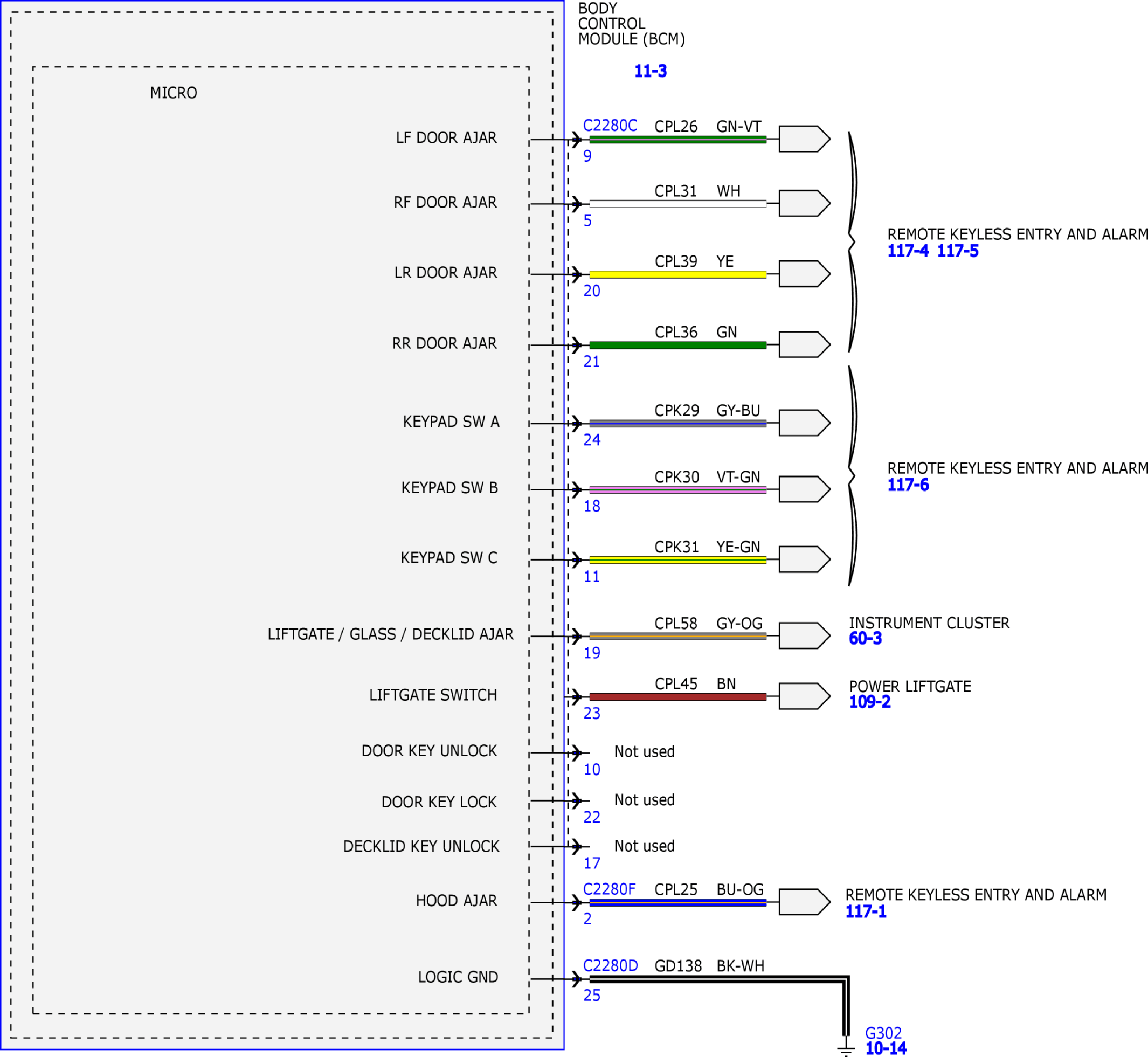

Fig 33: Power Distribution Wiring Diagrams (33 Of 40)

GFDW9667

Courtesy of FORD MOTOR COMPANY

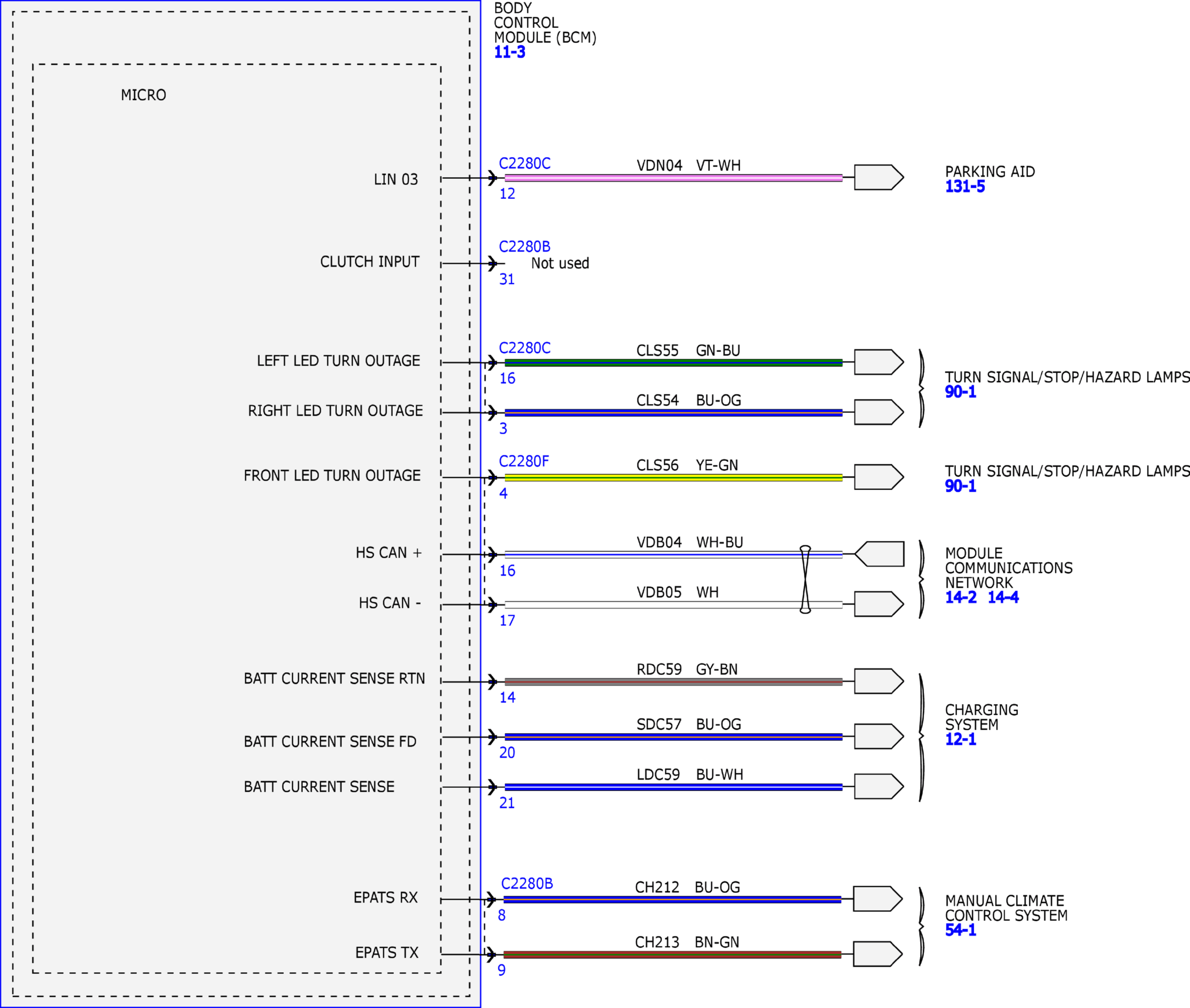

Fig 34: Power Distribution Wiring Diagrams (34 Of 40)

GFDW9668

Courtesy of FORD MOTOR COMPANY

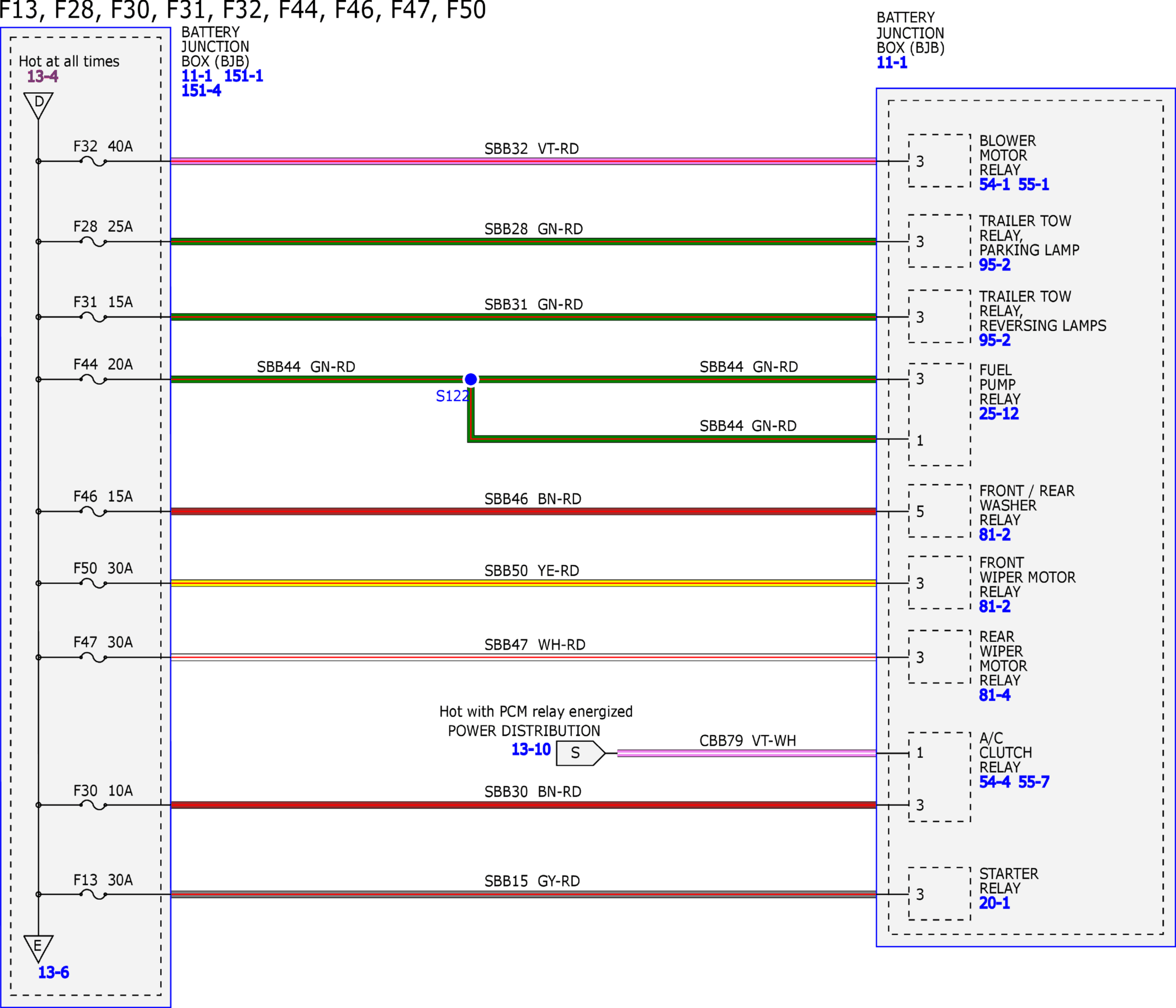

Fig 35: Power Distribution Wiring Diagrams (35 Of 40)

GFDW9669

Courtesy of FORD MOTOR COMPANY

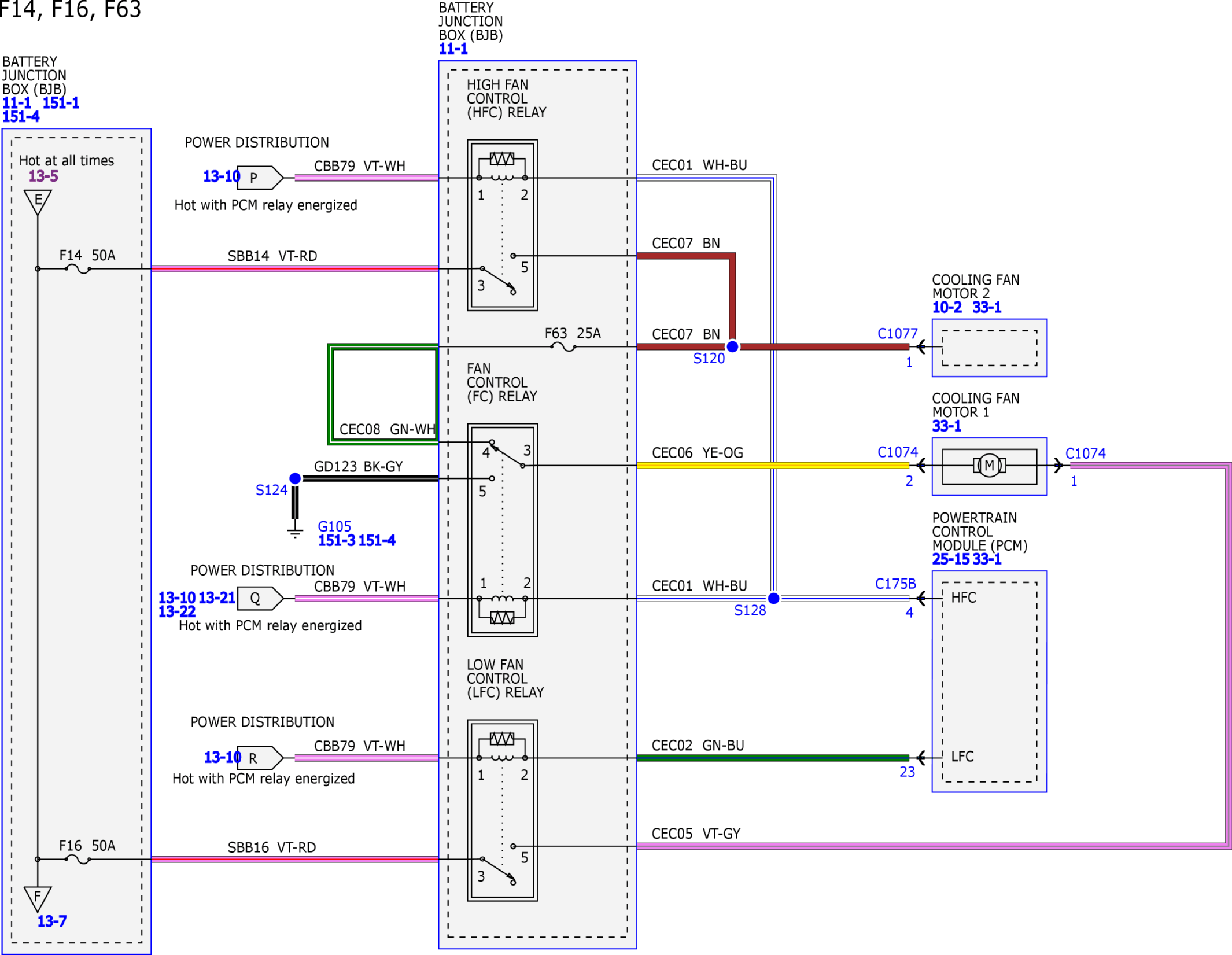

Fig 36: Power Distribution Wiring Diagrams (36 Of 40)

GFDW9670

Courtesy of FORD MOTOR COMPANY

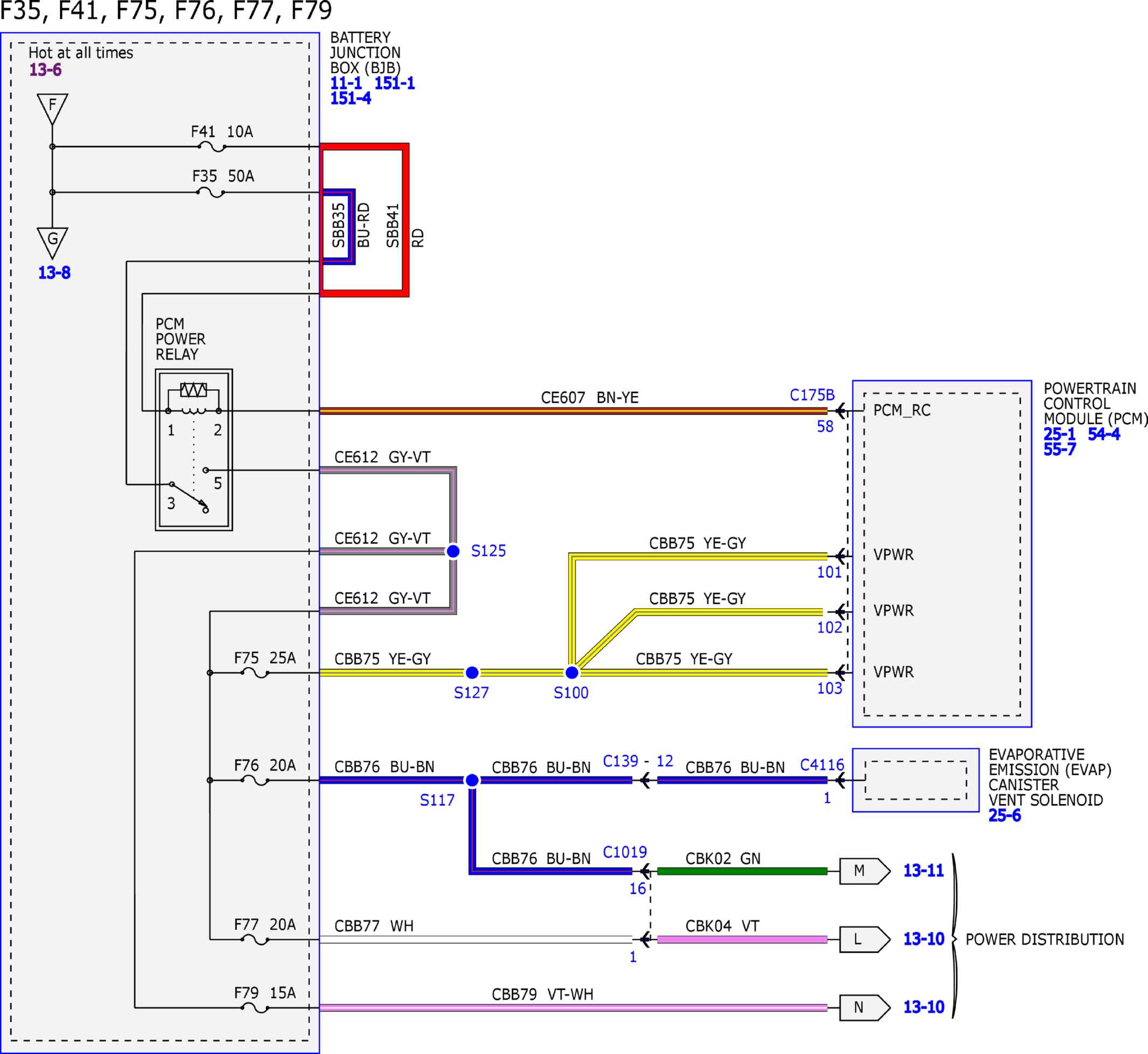

Fig 37: Power Distribution Wiring Diagrams (37 Of 40)

GFDW9671

Courtesy of FORD MOTOR COMPANY

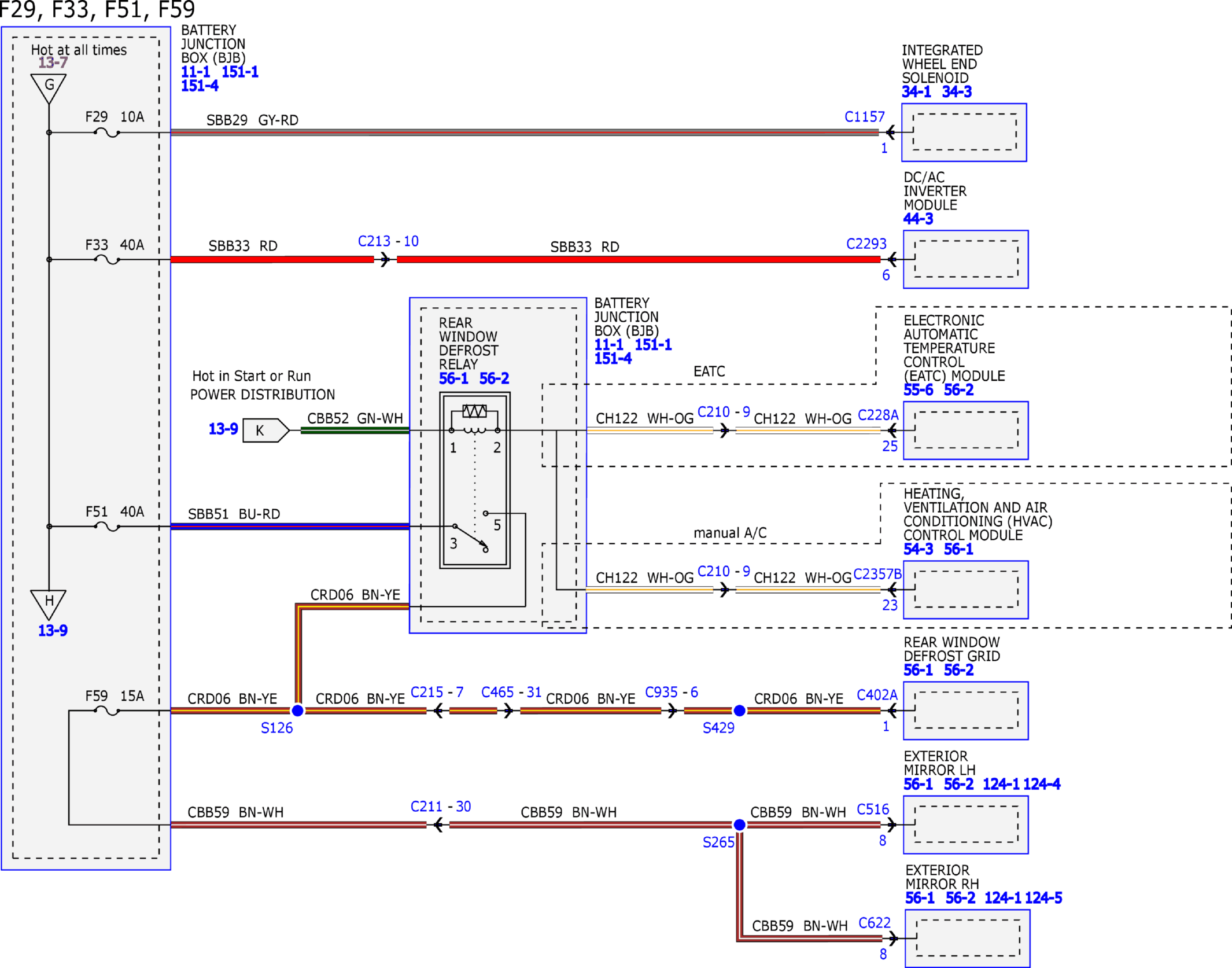

Fig 38: Power Distribution Wiring Diagrams (38 Of 40)

GFDW9672

Courtesy of FORD MOTOR COMPANY

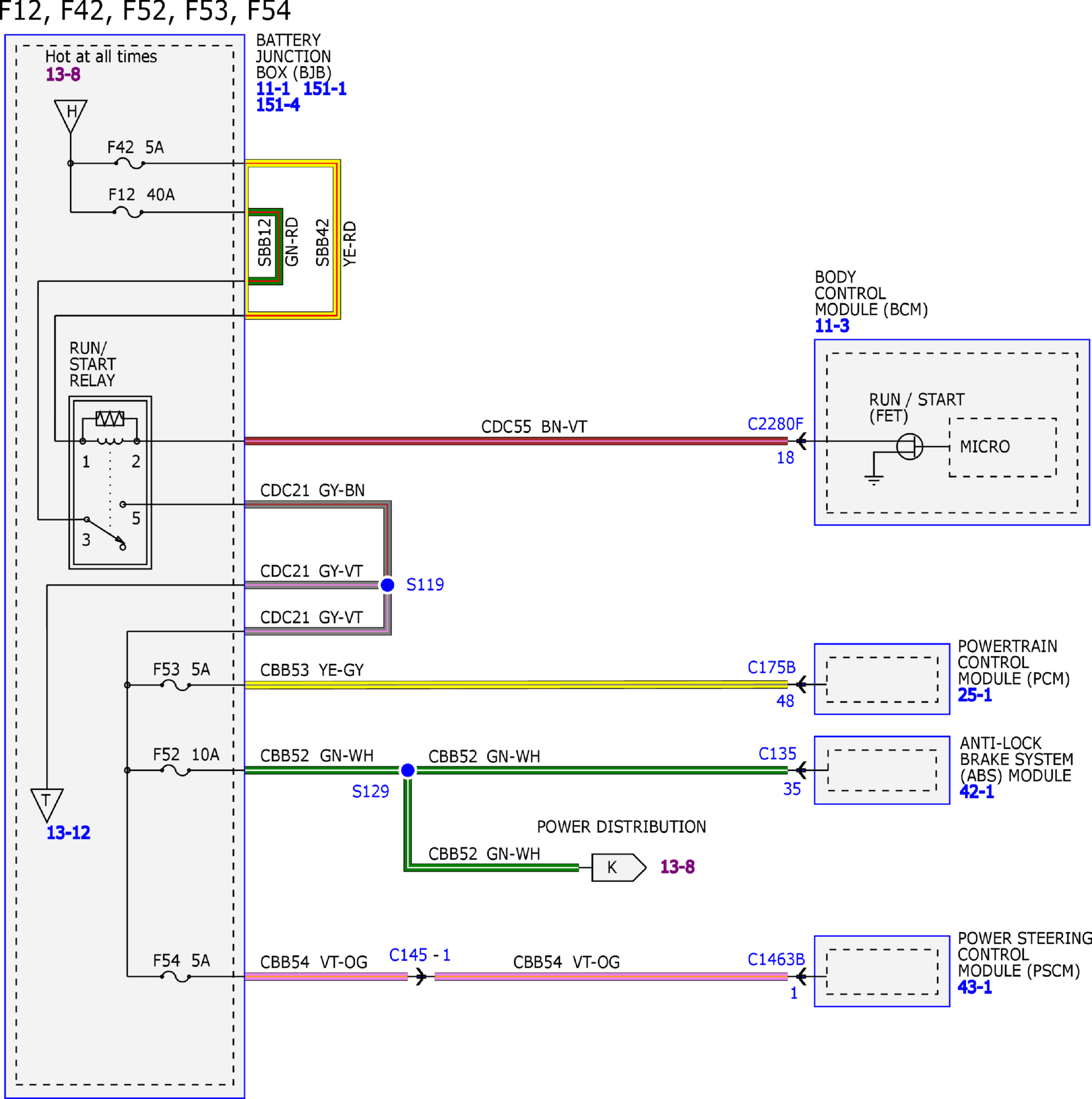

Fig 39: Power Distribution Wiring Diagrams (39 Of 40)

GFDW9673

Courtesy of FORD MOTOR COMPANY

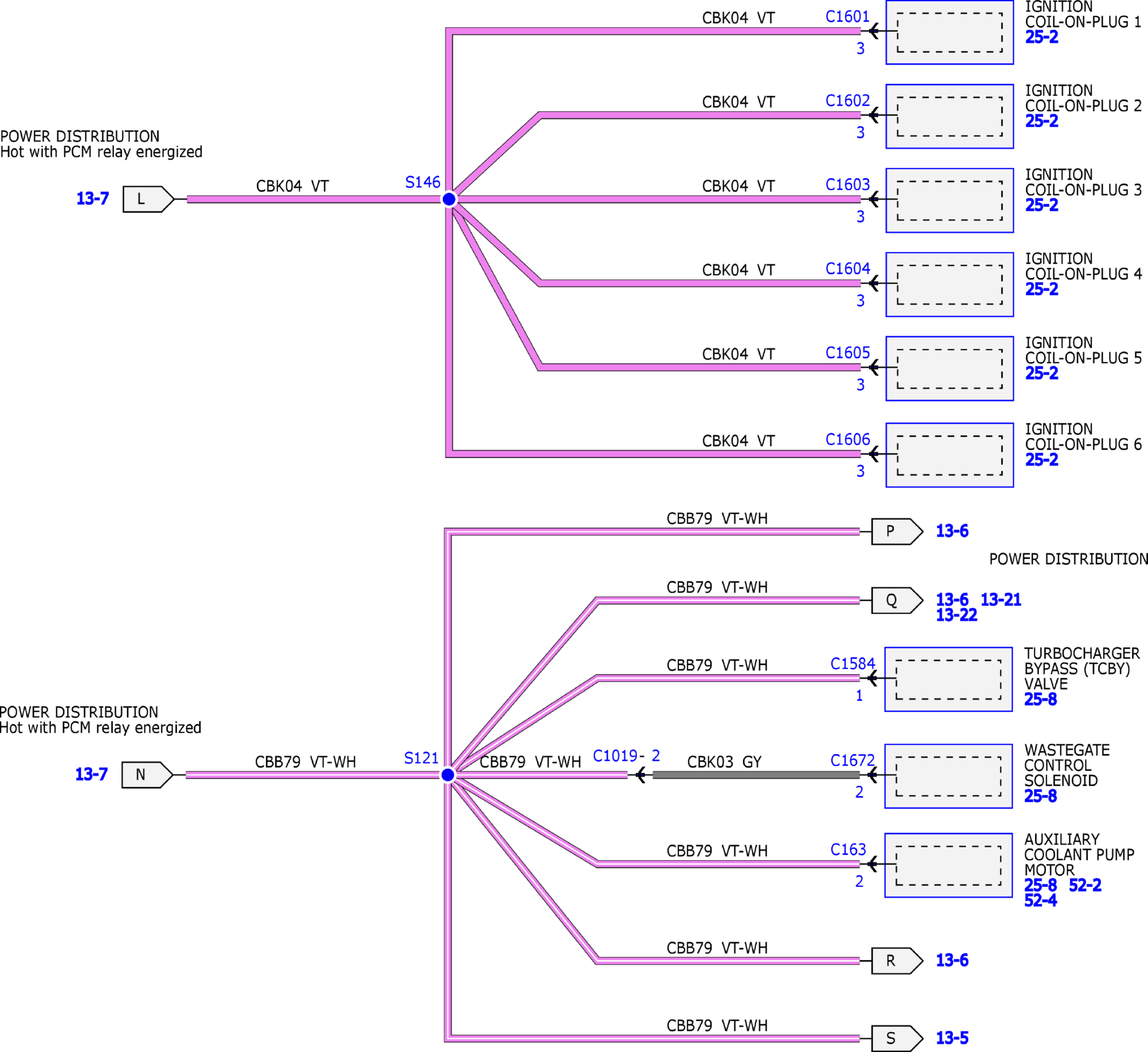

Fig 40: Power Distribution Wiring Diagrams (40 Of 40)

GFDW9674

Courtesy of FORD MOTOR COMPANY
