Starter Motor: Removal

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist, refer to Jacking and Lifting .

2.

Disconnect the battery ground cable, refer to Battery, Mounting and Cables .

3.

Remove the fasteners and the underbody splash shield.

GFD30411

Courtesy of FORD MOTOR COMPANY

4.

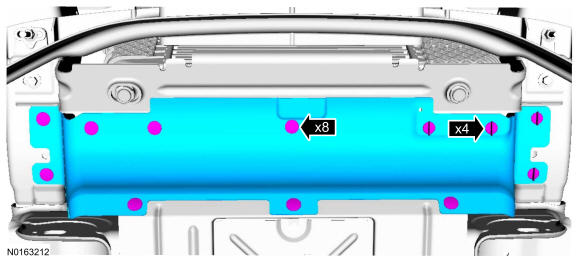

If equipped, turn the quarter-turn retainers, detach the pushpins and remove the lower air deflector.

GFD30696

Courtesy of FORD MOTOR COMPANY

5.

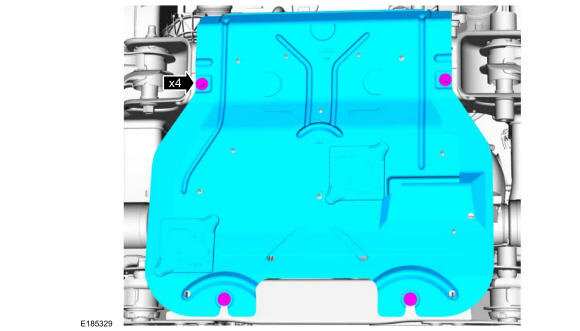

If equipped, remove the bolts and the skid plate.
- To install tighten to 40 Nm (30 lb-ft).

GFD30479

Courtesy of FORD MOTOR COMPANY

6.

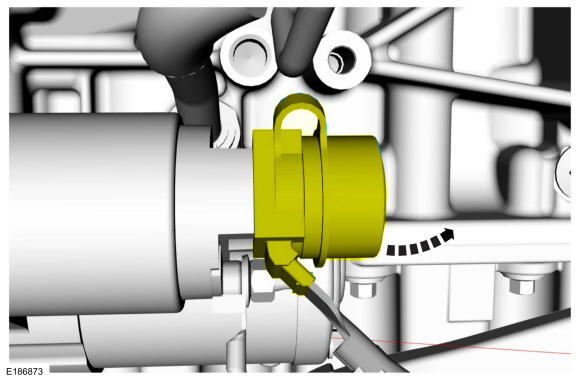

Open the starter solenoid terminal cover.

GFD30697

Courtesy of FORD MOTOR COMPANY

7.
1. 1.

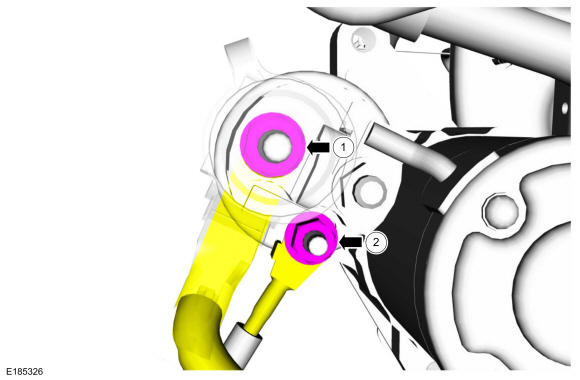

  Remove the large starter solenoid terminal nut and position the wires aside.
  - To install tighten to 12 Nm (106 lb-in).
1. 2.

  Remove the small starter solenoid terminal nut and position the wires aside.
  - To install tighten to 6 Nm (53 lb-in).

GFD30698

Courtesy of FORD MOTOR COMPANY

8.

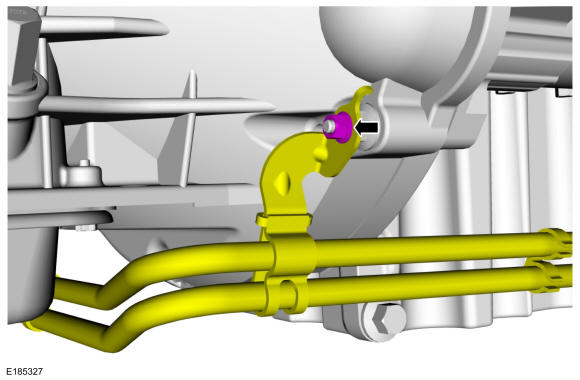

Remove the transmission cooling tube bracket nut and position the transmission cooling tubes aside.
- To install tighten to 12 Nm (106 lb-in).

GFD30699

Courtesy of FORD MOTOR COMPANY

9.

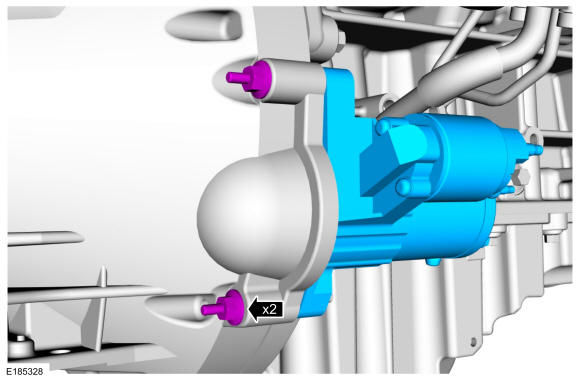

Remove the starter motor studbolts and remove the starter motor.
- To install tighten to 48 Nm (35 lb-ft).

GFD30700

Courtesy of FORD MOTOR COMPANY

10.

Inspect the starter motor drive gear and the flywheel ring gear, refer to Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
