Mode Select Switch (MSS): Removal

Navigator

NOTE: The Mode Select Switch (MSS) is not serviceable separately.
1. 1.
   Refer to FCIM, Information and Entertainment Systems THX Audio System .

Expedition

1. 2.

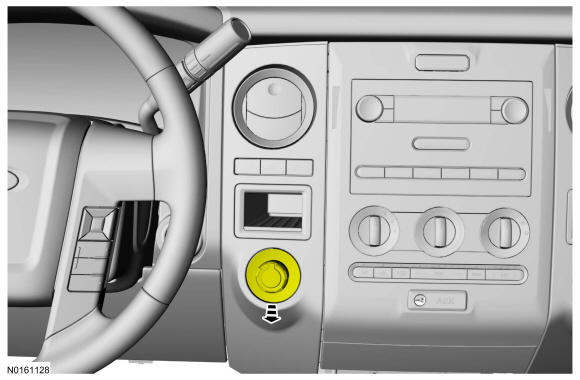

   Carefully pry the Mode Select Switch (MSS) from the instrument panel.

Courtesy of FORD MOTOR COMPANY

1. 3.

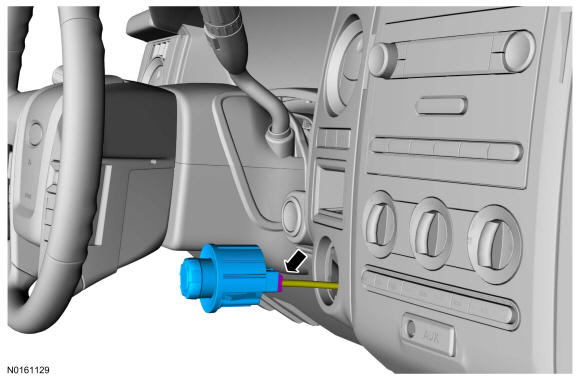

   Disconnect the MSS harness connector and remove the switch.

Courtesy of FORD MOTOR COMPANY
