Selector Lever Cable - Column Shift: Removal

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

  1. 2.

    Remove the steering column shrouds. Refer to Steering Column .

  1. 3.

    Position the selector lever in DRIVE.

  1. 4.

    Disconnect the selector lever cable from the selector lever arm and the selector lever cable bracket.
GFD31311Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the console LH finish panel.

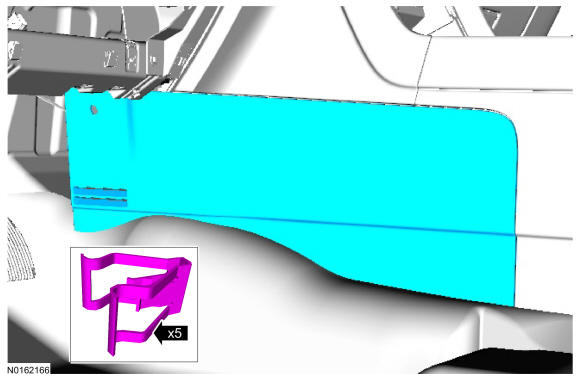

GFD31312Courtesy of FORD MOTOR COMPANY

  1. 6.

    Push the rubber grommet and selector lever cable through the floor pan.
GFD31313Courtesy of FORD MOTOR COMPANY

  1. 7.

    Rotate the 1/4 turn retainers and remove the transmission shield.

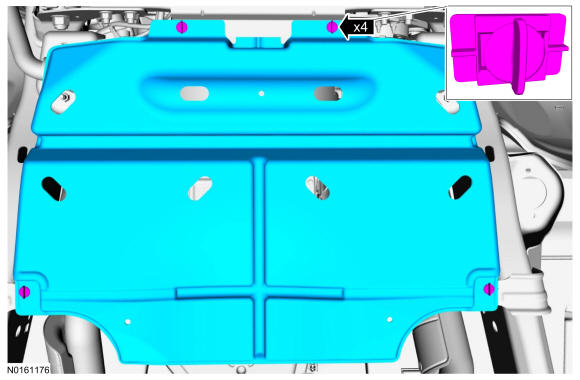

GFD31284Courtesy of FORD MOTOR COMPANY

  1. 8.

    Detach the selector lever cable from the routing clip.

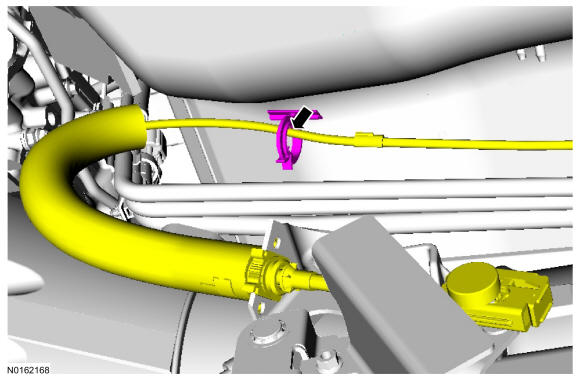

GFD31314Courtesy of FORD MOTOR COMPANY

  1. 9.

    Clean the cable adjustment lock of any debris.
GFD31301Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

    Rotate the cable adjustment lock upward and remove the selector lever cable from the manual control lever.

GFD31302Courtesy of FORD MOTOR COMPANY

  1. 11.

    Disconnect the selector lever cable from the selector lever cable bracket and remove the selector lever cable.

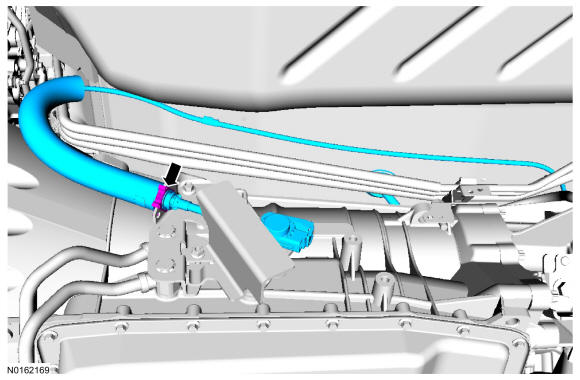

GFD31315Courtesy of FORD MOTOR COMPANY
