Brake Shift Interlock Actuator - Column Shift: Installation

1. 1.

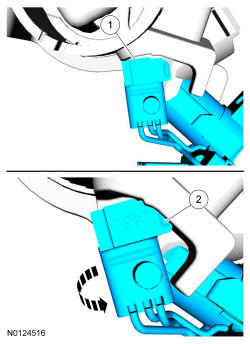

   Install the park position switch.

   1. 1.

      Place the large plunger on the park position switch in the locating hole and position the switch as shown in illustration.

   1. 2.

      Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Verify the small plunger is fully extended.

Courtesy of FORD MOTOR COMPANY

1. 3.

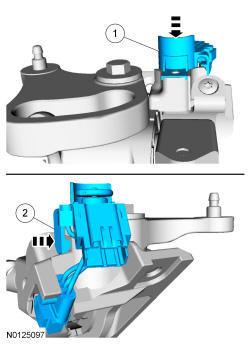

   Install the BSIA.

   1. 1.

      Insert the BSIA into the selector lever mechanism housing.

   1. 2.

      Gently push the snap lock clip in place.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Install the BSIA screw.
   • Tighten to 2 Nm (18 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the selector lever mechanism. Refer to Selector Lever Mechanism .
