Removal And Installation

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown, passenger seat similar.

Navigator front seat

  1. 1.

    Remove the side shield cover from the cushion side shield.

    1. 1.

      Release the side shield cover retainers.

    1. 2.

      Disconnect the electrical connectors.
GFD32276Courtesy of FORD MOTOR COMPANY

Expedition front seat

    NOTE: To avoid damage, do not pull from the inboard side of the front seat cushion panel shield.

  1. 2.
    Remove the front seat cushion panel shield.

    1. 1.

      Release the upper retaining clips working from the outboard side toward inboard side.

    1. 2.

      Release the lower retaining clips.
GFD32269Courtesy of FORD MOTOR COMPANY

  1. 3.

    If equipped, remove the manual lumbar knob.

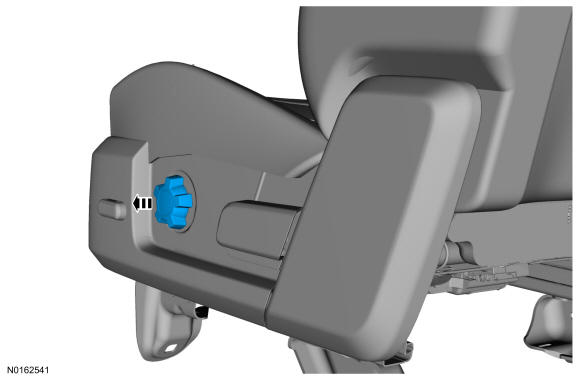

GFD32280Courtesy of FORD MOTOR COMPANY

  1. 4.

    If equipped, remove the recliner handle.

    1. 1.

      Position the recliner handle upward.

    1. 2.

      Remove the screw.

    1. 3.

      Release the locking tab.

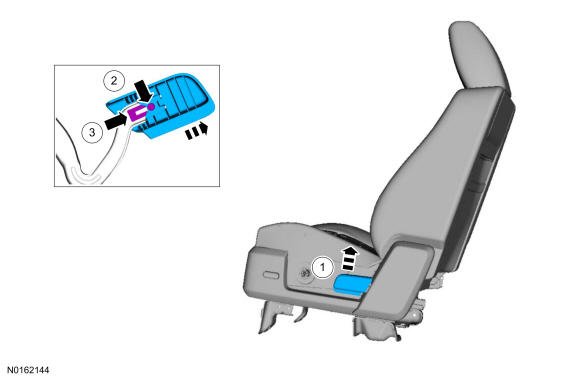

GFD32281Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the side shield cover front screw.
GFD32277Courtesy of FORD MOTOR COMPANY
    NOTE: Side shield cover with a seat control switch, manual lumbar and recliner shown, others similar.

  1. 6.
    Remove the side shield cover.

    1. 1.

      Pull forward on the front of the side shield cover to release the front retainers.

    1. 2.

      Pull outward on the side shield cover to release the side retainers.

    1. 3.

      Pull forward to release the side shield cover rear guides.

    1. 4.

      If equipped, disconnect the electrical connector(s).

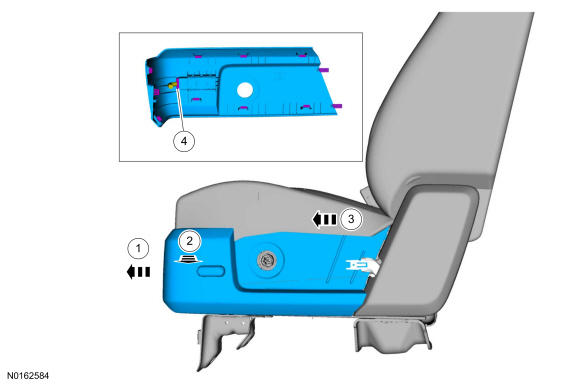

GFD32282Courtesy of FORD MOTOR COMPANY

All seats

    NOTE: Navigator driver front seat control switch shown, all others similar.

  1. 7.
    Remove the seat control switch knob(s).
GFD32314Courtesy of FORD MOTOR COMPANY
    NOTE: Navigator driver front seat control switch shown, all others similar.

  1. 8.
    Release the locking clips and remove the seat control switch.

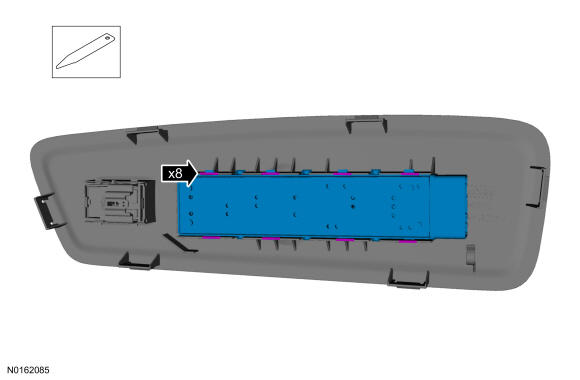

GFD32315Courtesy of FORD MOTOR COMPANY

  1. 9.

    If equipped, remove the backrest recline switch knob.
GFD32316Courtesy of FORD MOTOR COMPANY

  1. 10.

    To install, reverse the removal procedure.
