Power Window Switch - RH Side Front (Expedition)

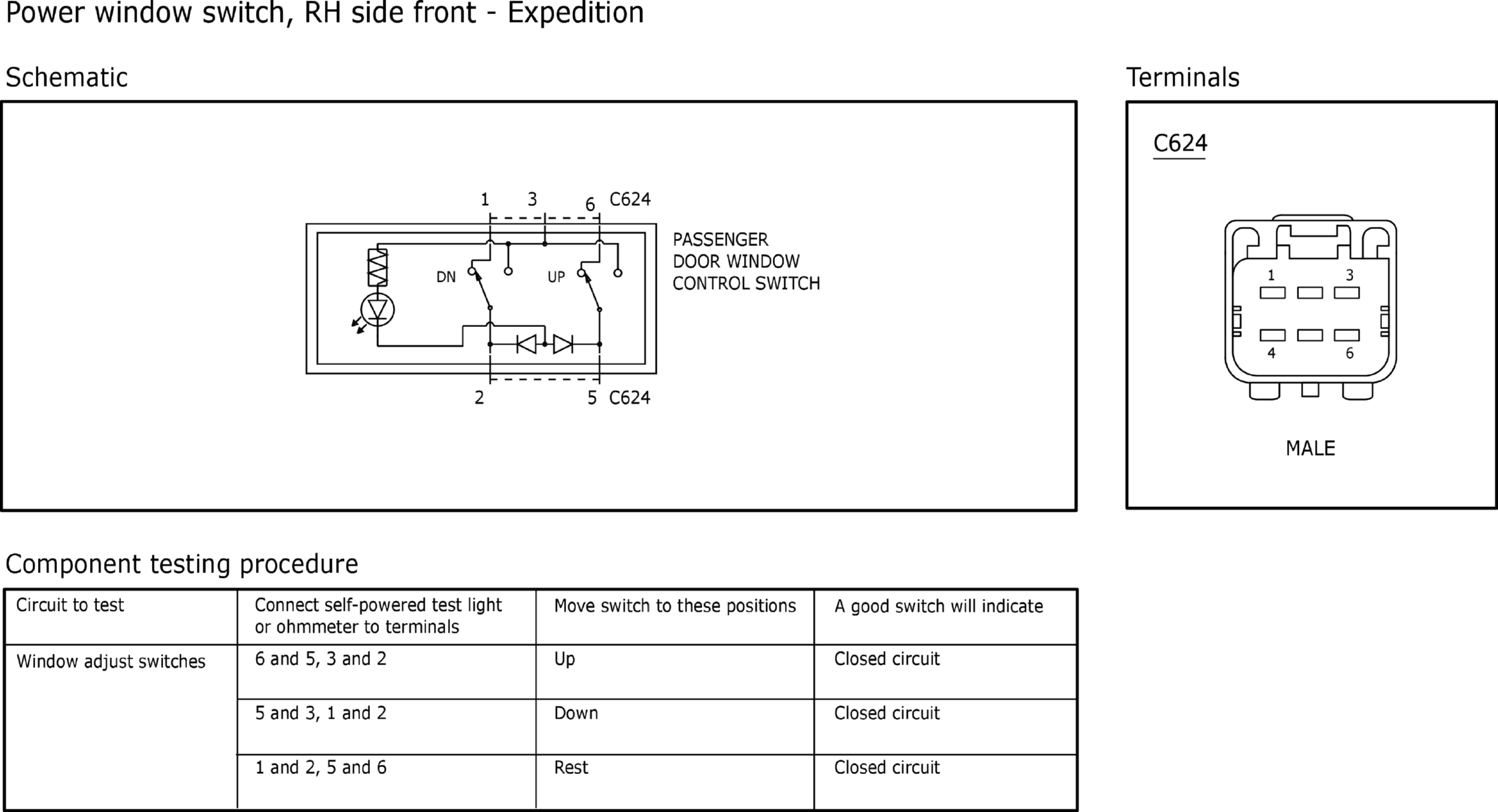

Fig 1: Power Window Switch - RH Side Front (Expedition)

GFDW9776

Courtesy of FORD MOTOR COMPANY
