Transfer Case - 2-Speed Torque-On-Demand: Assembly

1.

Lubricate all internal components with the recommended transfer case lubricant during reassembly.

2.

Clean the mating surfaces of the cases.

3.

Using a press and the Output Shaft Front Bearing Installer with the Handle, install the front planet support bearing.

Courtesy of FORD MOTOR COMPANY

4.

Using a press and the Front Axle Oil Seal Installer with the Handle, install the front output shaft support bearing.

Courtesy of FORD MOTOR COMPANY

5.

Using the Input Shaft Oil Seal Installer, install a new front output shaft seal.

Courtesy of FORD MOTOR COMPANY

6.

Using the Valve Stem Oil Seal Installer, install a new shift shaft seal.

Courtesy of FORD MOTOR COMPANY

7.

Install the case to the Transmission Holding Fixture. Secure the case and the Transmission Holding Fixture to the work bench.

Courtesy of FORD MOTOR COMPANY

8.

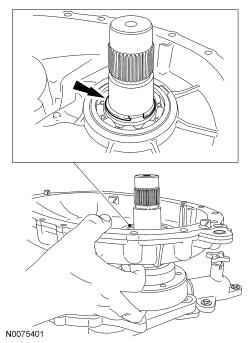

Using Input Shaft Oil Seal Installer, install a new front input shaft seal.

Courtesy of FORD MOTOR COMPANY

9.

Install the ring gear.
- 1.

  Position the ring gear in the case.
- 2.

  Install the snap ring.

Courtesy of FORD MOTOR COMPANY

10.

Install the front output shaft and the snap ring.

Courtesy of FORD MOTOR COMPANY

NOTE: If removed, using a press and the Input Shaft Bearing Installer, install the needle bearing into the front planet. Be careful not to damage the bearing cage.

11.
Install the front planet.

Courtesy of FORD MOTOR COMPANY

12.

Install the shift fork shaft.

Courtesy of FORD MOTOR COMPANY

13.

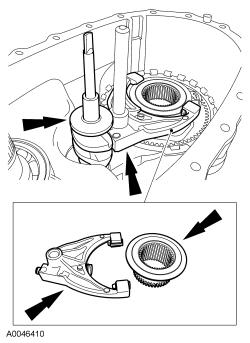

Assemble the reduction hub and the reduction shift fork. Install the reduction shift fork, the reduction hub and the shift cam as an assembly.

Courtesy of FORD MOTOR COMPANY

14.

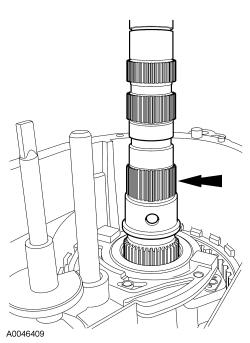

Install the output shaft.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure the oil pump finger is in the slot in the case.

15.
Install the oil pump assembly.

Courtesy of FORD MOTOR COMPANY

16.

Install the oil pan magnet into the slot in the case.

Courtesy of FORD MOTOR COMPANY

17.

Install the 3-piece thrust bearing assembly.
- 1.

  Install the thrust washer.
- 2.

  Install the thrust bearing.
- 3.

  Install the thrust washer.

Courtesy of FORD MOTOR COMPANY

18.

Install the drive chain and the sprockets as an assembly.

Courtesy of FORD MOTOR COMPANY

19.

NOTE: When installing the clutch assembly, do not separate the clutch pack assembly. The thrust washer in the lower clutch pack uses tabs to hold it in place. If the thrust washer is not in place, a transfer case clearance problem will occur.

NOTE: If the clutch pack is disassembled, a new clutch pack must be installed and the armature transferred. Failure to install a new clutch pack can result in component failure.

Install the clutch pack assembly with the armature.

Courtesy of FORD MOTOR COMPANY

20.

Install a new snap ring.

Courtesy of FORD MOTOR COMPANY

21.

Install the wave spring.

22.

Install the cam and the steel balls.

Courtesy of FORD MOTOR COMPANY

23.

Install the cam/coil housing.

Courtesy of FORD MOTOR COMPANY

24.

Install the thrust bearing assembly.

25.

Install the snap ring.

26.

Using a press and the Mainshaft Bearing Installer, install the rear output shaft support bearing.

Courtesy of FORD MOTOR COMPANY

27.

Using a press and the Mainshaft Bearing Installer, install the front output shaft rear bearing.

Courtesy of FORD MOTOR COMPANY

NOTE: Only apply enough silicone sealant to seal the transfer case halves together.

28.
Apply a bead of silicone sealant to the transfer case mating surface, then position the 2 transfer case halves together. Tighten the 20 transfer case bolts evenly in a star pattern.
- Position the coil studs through the case holes, making sure the shift cam shaft is aligned with its case bore and the lockup shift fork spring is in position.
- Tighten to 29 Nm (21 lb-ft).

Courtesy of FORD MOTOR COMPANY

29.

Install the 3 coil washers and nuts.
- Tighten to 10 Nm (89 lb-in).

30.

Using the Input Shaft Oil Seal Installer, install the rear output shaft seal.

Courtesy of FORD MOTOR COMPANY

31.

Apply a small bead of silicone sealant to the transfer case shift motor mating surface.

NOTE: When installing the shift motor, tighten the bracket nuts last. Failure to follow the steps in the correct order may result in damage to the component.

32.

Install the transfer case shift motor and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

33.

Install the transfer case shift motor bracket bolt.
- Tighten to 10 Nm (89 lb-in).

34.

Secure the transfer case shift motor bracket nuts.

NOTE: After the wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

35.
Insert the coil wire pin in the electrical connector and install the inner connector retainer.

Courtesy of FORD MOTOR COMPANY

36.

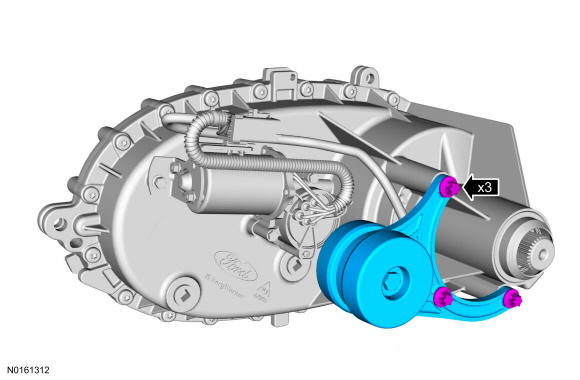

Install the transfer case dampener and the transfer case dampener bolts.
- Tighten to 18 Nm (159 lb-ft).

Courtesy of FORD MOTOR COMPANY

37.

Secure the transfer case to a transmission jack and remove the transfer case from the Transmission Holding Fixture.

Courtesy of FORD MOTOR COMPANY
