Liftgate Latch: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Manual Liftgate

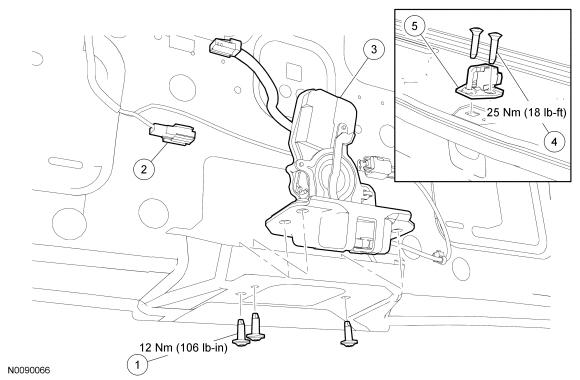

Fig 1: Manual Liftgate Latch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807675	Liftgate latch bolts (3 required)
2	-	Liftgate latch electrical connector (part of 14086)
3	7843150	Liftgate latch
4	W714070	Liftgate striker bolts (2 required)
5	7843252	Liftgate striker

Power Liftgate

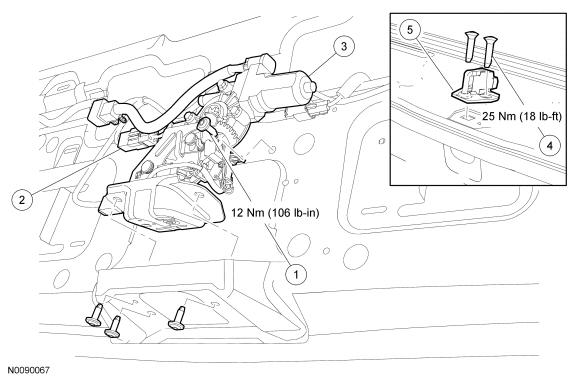

Fig 2: Power Liftgate Latch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807675	Liftgate latch bolts (4 required)
2	-	Liftgate latch electrical connector (part of 14086)
3	7843150	Liftgate latch
4	W714070	Liftgate striker bolts (2 required)
5	7843252	Liftgate striker
