Liftgate Latch - Window: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

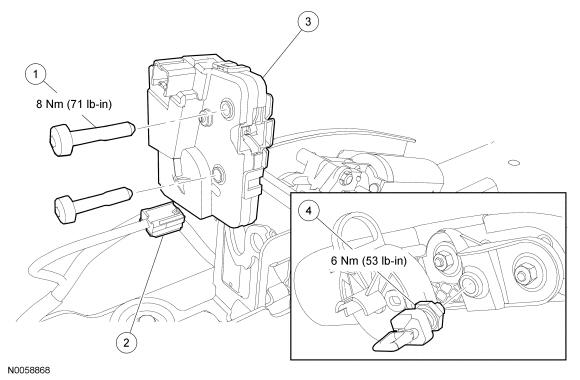

Fig 1: Window Liftgate Latch With Torque Specifications
GFD32552Courtesy of FORD MOTOR CO.
Item Part Number Description
1 78421A00 Liftgate glass latch screws (2 required)
2 - Liftgate glass latch electrical connector (part of 14086)
3 7840860 Liftgate glass latch
4 - Liftgate glass striker
