Fuel Pump Driver Module (FPDM): Installation

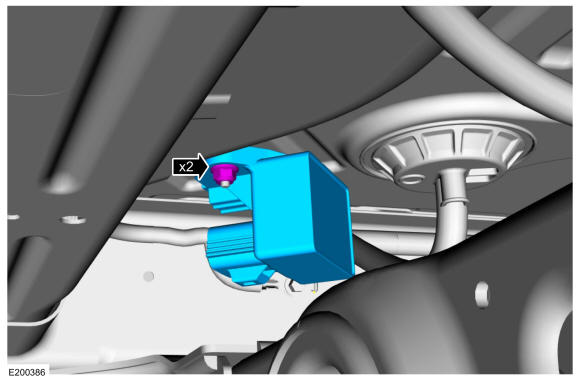

  1. Install the FPDM, then install and tighten the FPDM nuts.

    Torque: 13 lb.in (1.5 Nm)

    GFD170058Courtesy of FORD MOTOR COMPANY

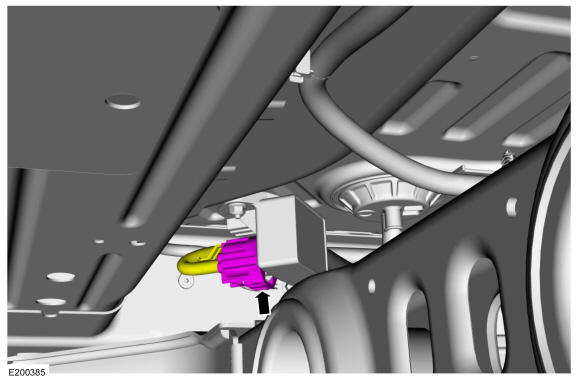

  2. Connect the FPDM electrical connector.
GFD170057Courtesy of FORD MOTOR COMPANY
