Front Engine Sensor Locations - 2.0L GTDI

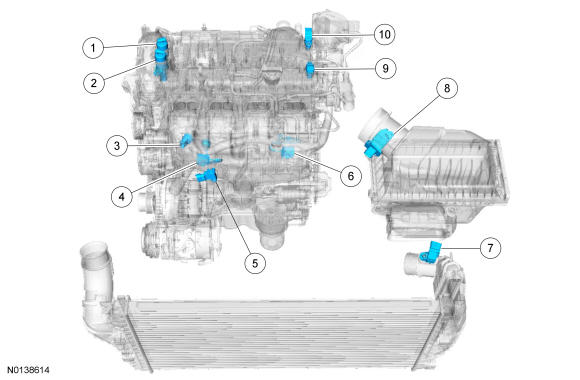

GFD92878Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Exhaust VCT oil control solenoid -
2 Intake VCT oil control solenoid -
3 FRP sensor -
4 Front KS -
5 MAP sensor -
6 Rear KS -
7 TCBP /CACT sensor -
8 MAF sensor -
9 Intake CMP sensor -
10 Exhaust CMP sensor -
