Connector Repair Procedures

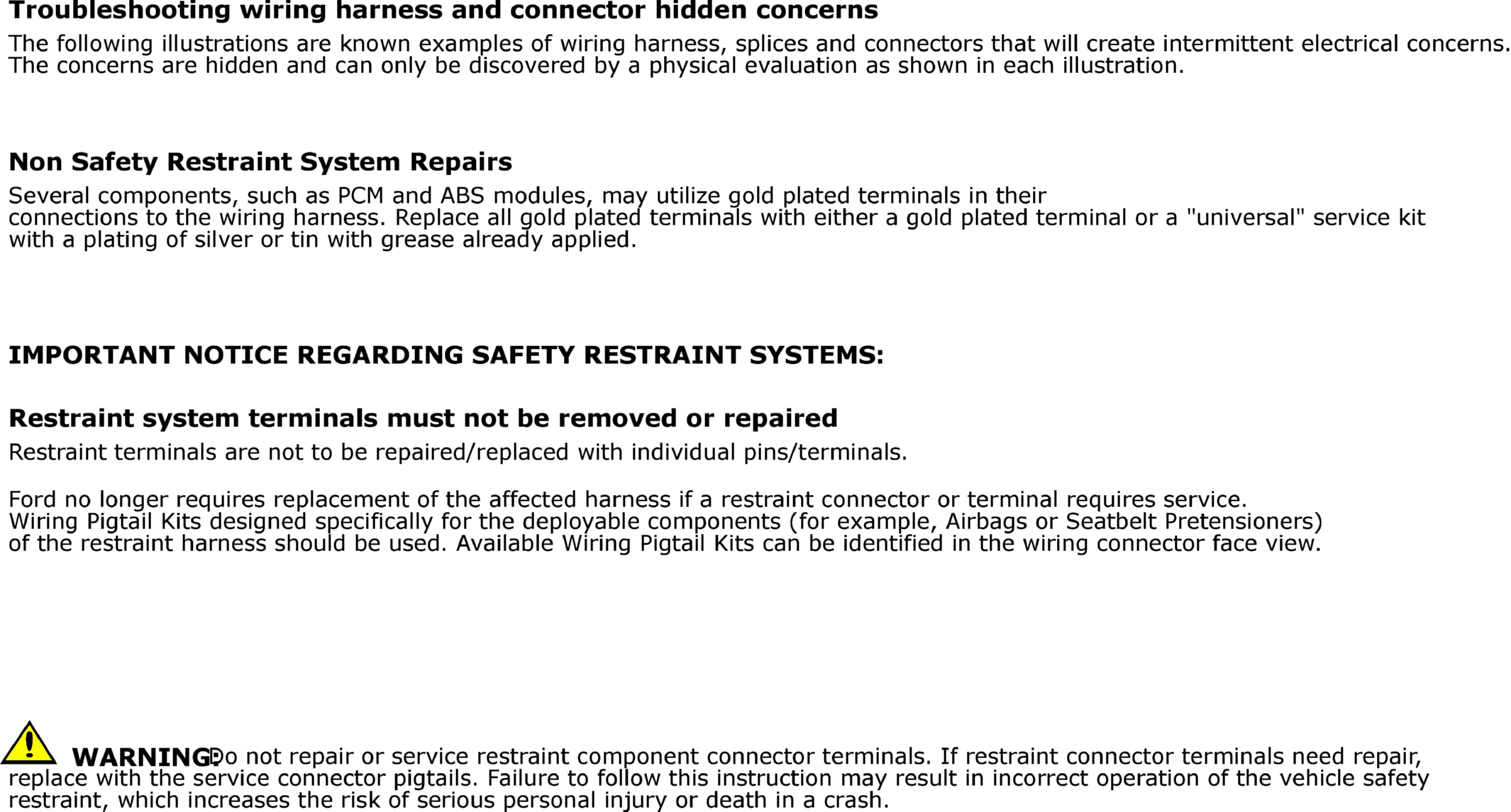

GFDW35834Courtesy of FORD MOTOR COMPANY

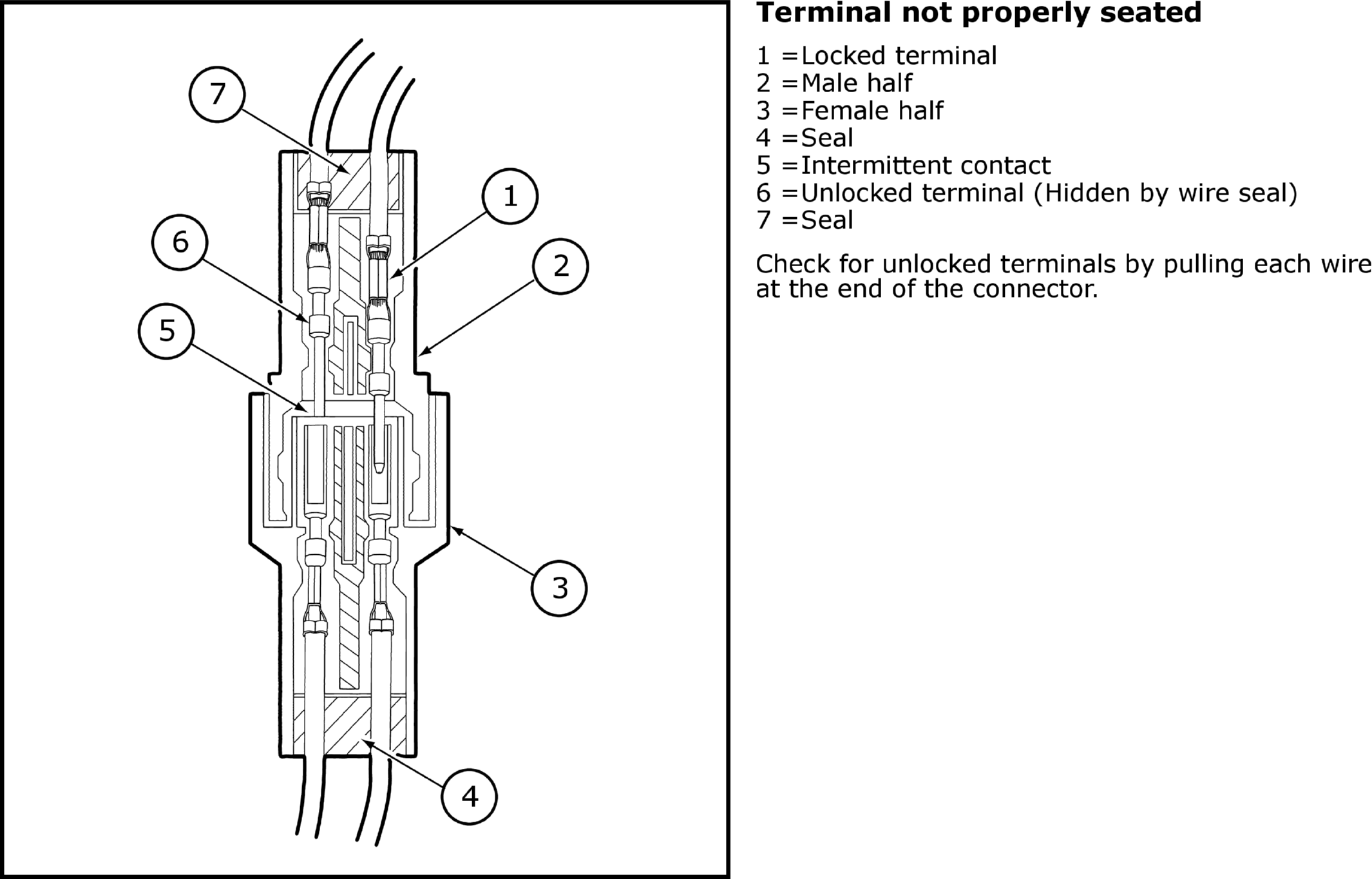

GFDW35835Courtesy of FORD MOTOR COMPANY

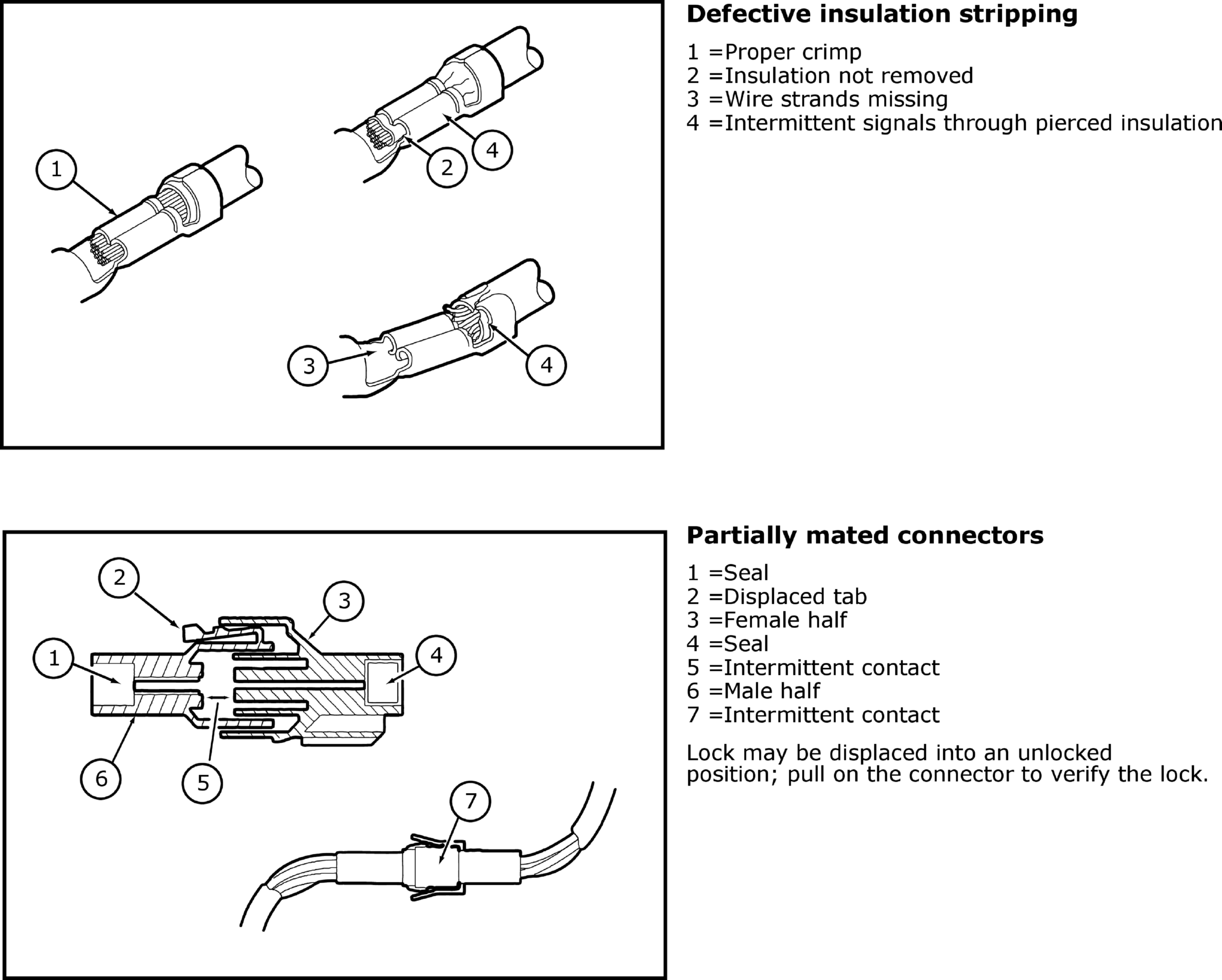

GFDW35836Courtesy of FORD MOTOR COMPANY

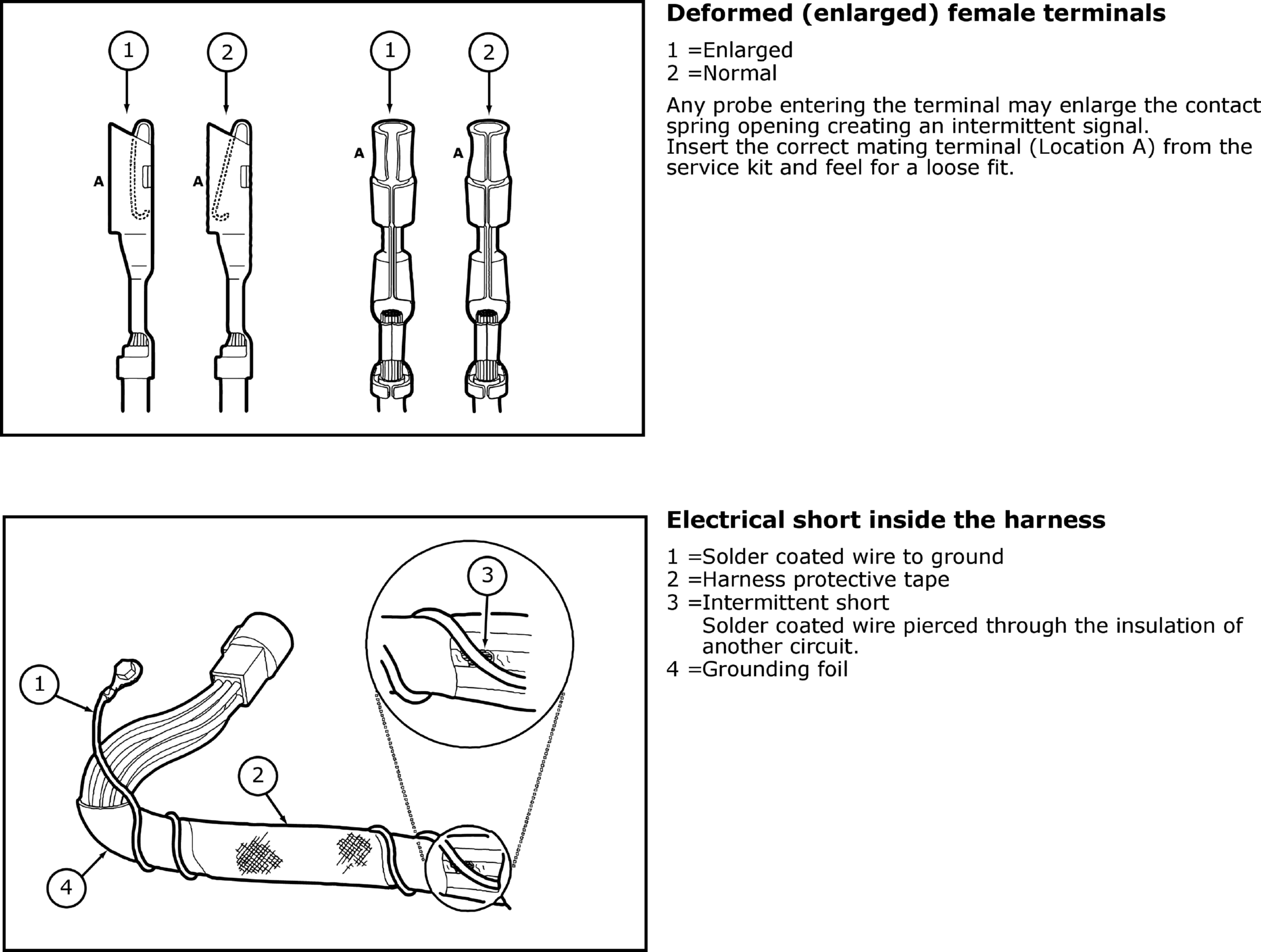

GFDW35837Courtesy of FORD MOTOR COMPANY

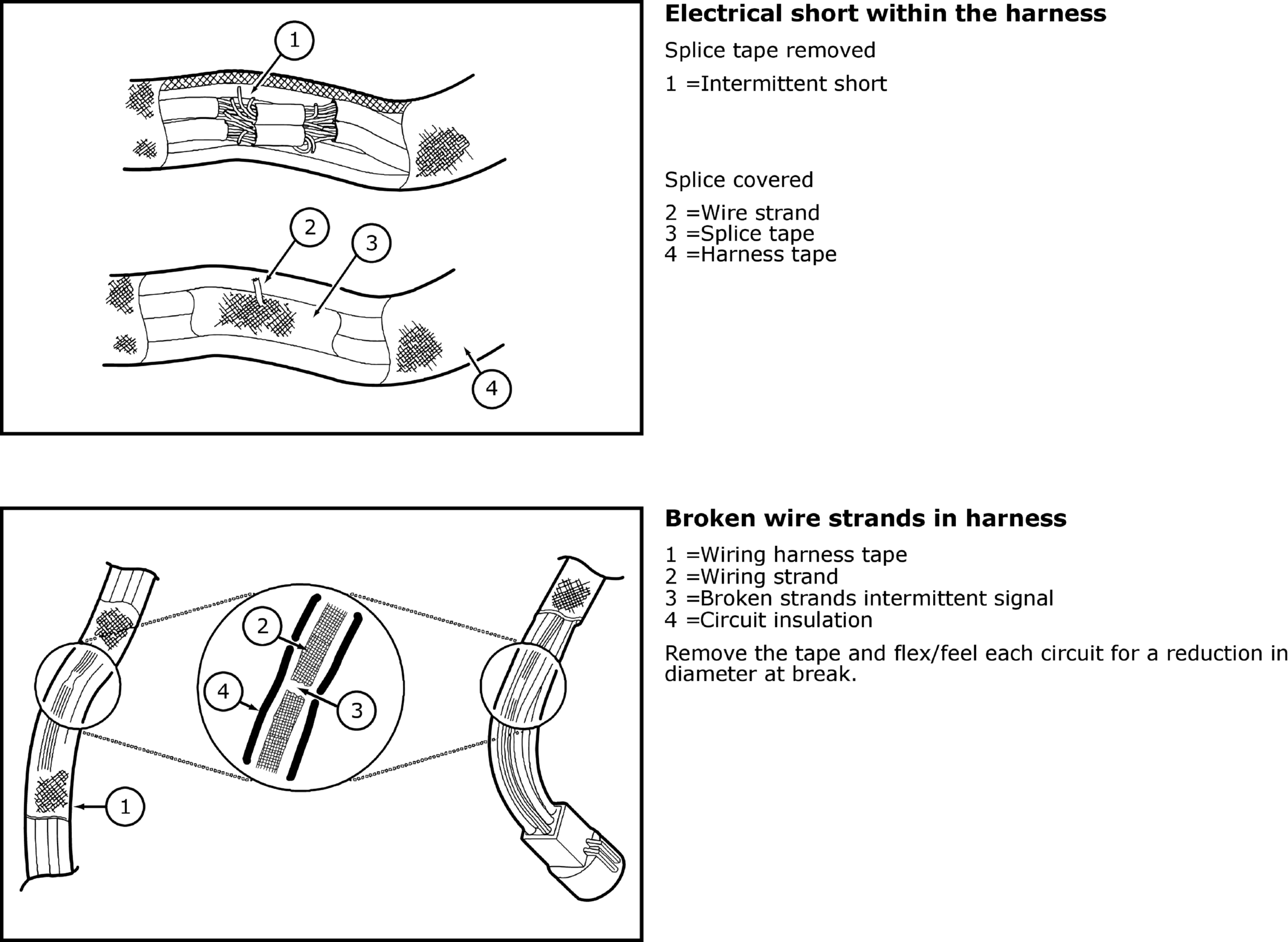

GFDW35838Courtesy of FORD MOTOR COMPANY

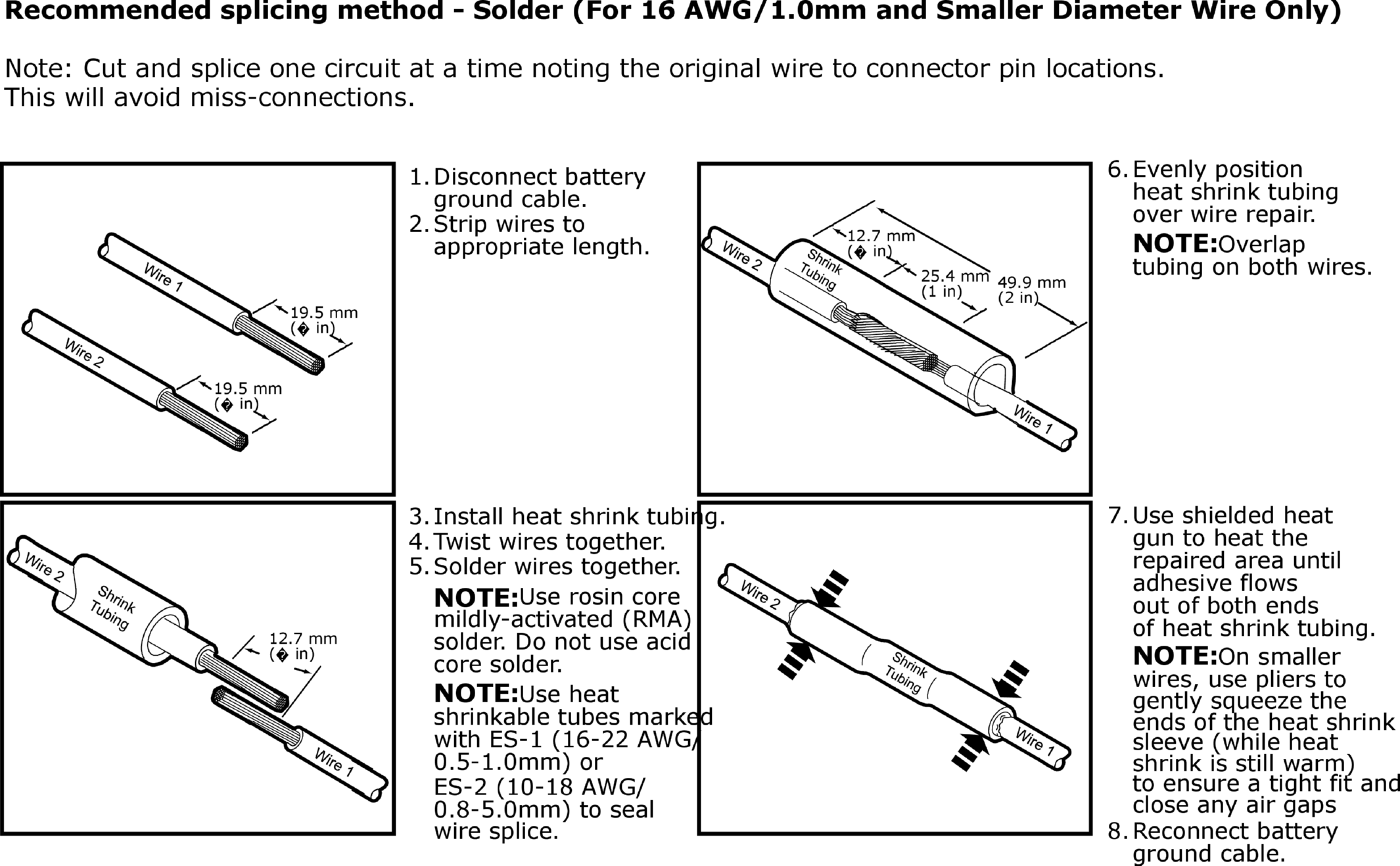

GFDW35839Courtesy of FORD MOTOR COMPANY

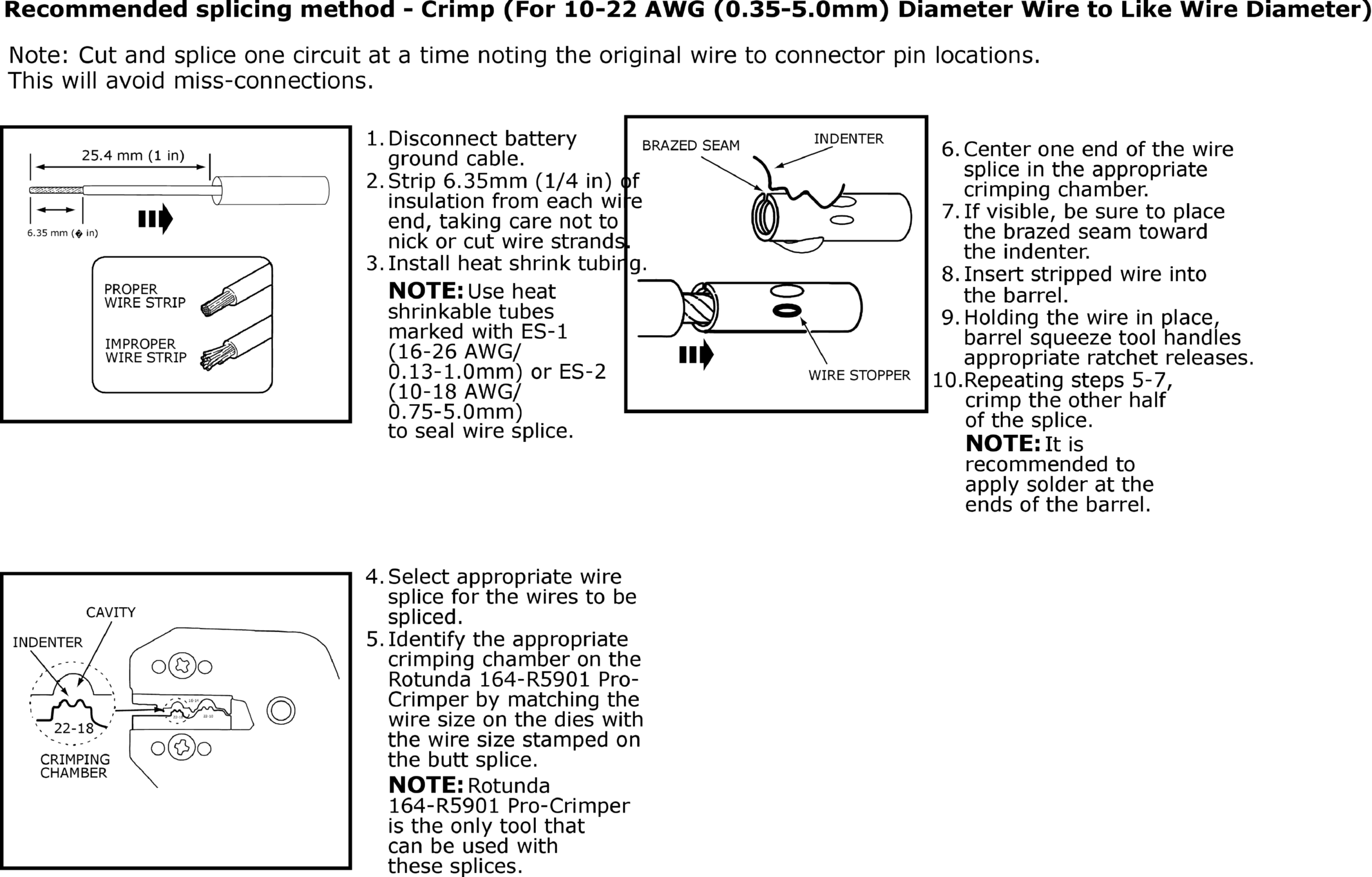

GFDW35840Courtesy of FORD MOTOR COMPANY

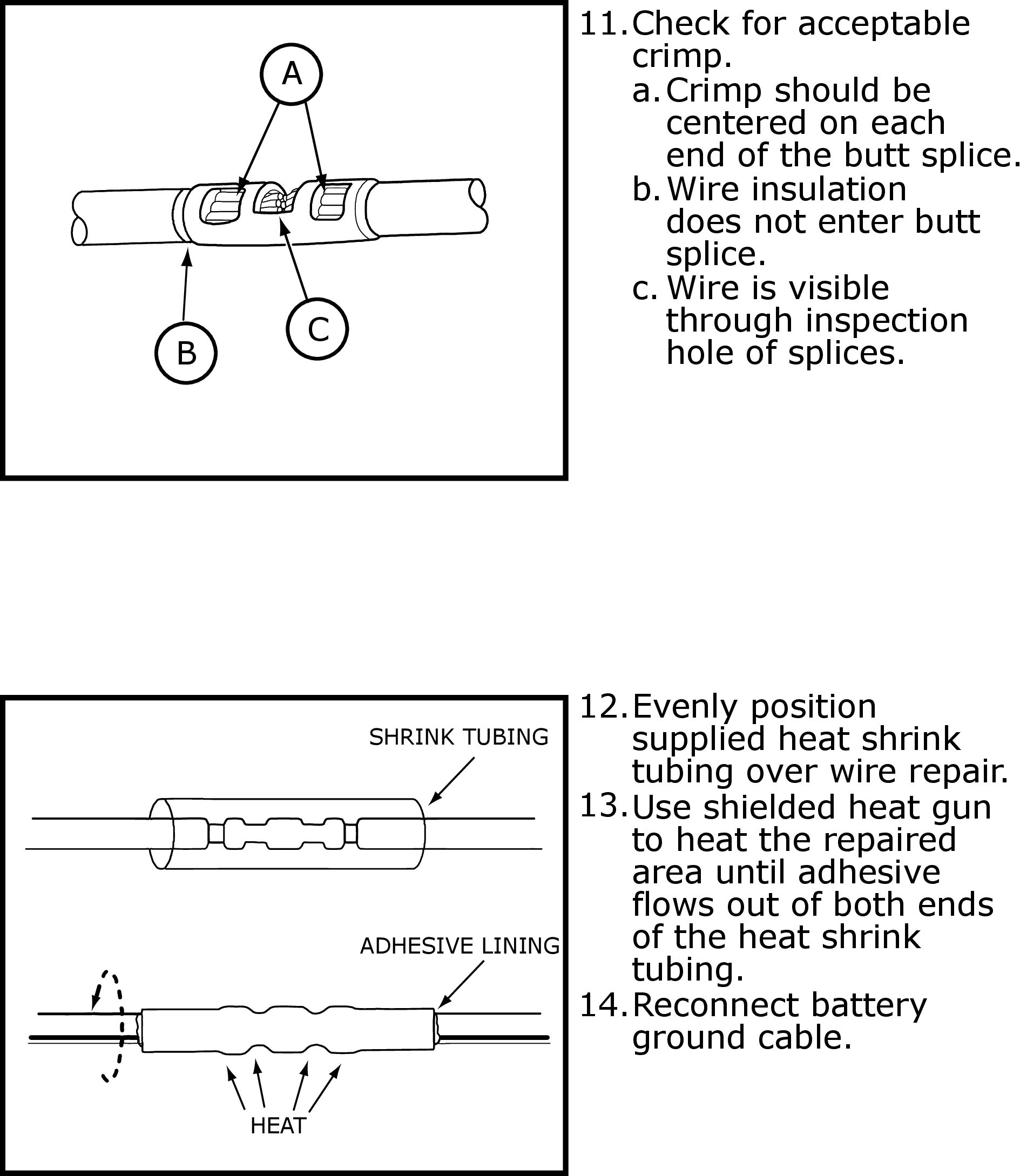

GFDW35841Courtesy of FORD MOTOR COMPANY

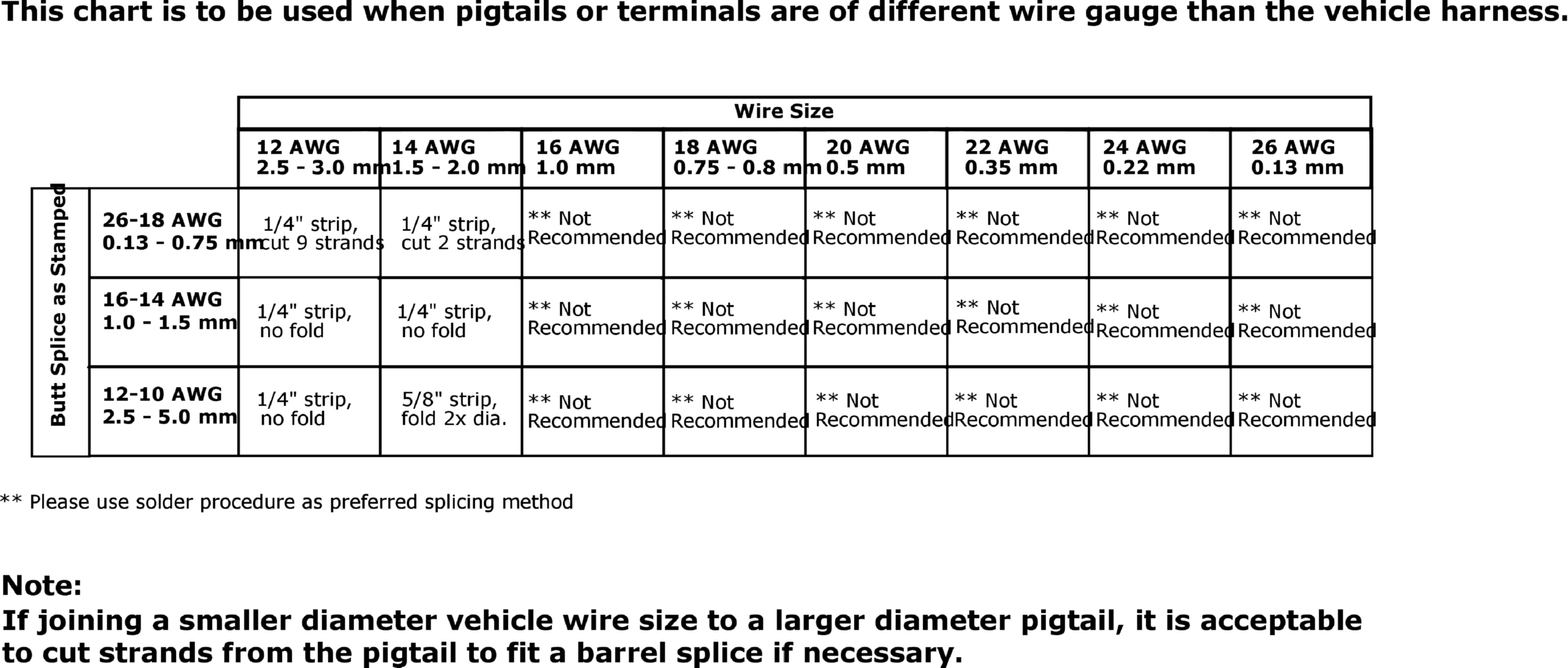

GFDW35842Courtesy of FORD MOTOR COMPANY
