Selector Lever Bezel: Removal

  1. 1.

    On both sides.
GFD88825Courtesy of FORD MOTOR COMPANY

  1. 2.

GFD88826Courtesy of FORD MOTOR COMPANY

  1. 3.

GFD88827Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: When removing the floor console lower trim panel, place a piece of cardboard between the floor console lower and upper trim panels to protect the floor console upper trim panel from being damaged.

    On both sides.

GFD88828Courtesy of FORD MOTOR COMPANY

  1. 5.

    On both sides.
GFD88829Courtesy of FORD MOTOR COMPANY

  1. 6.

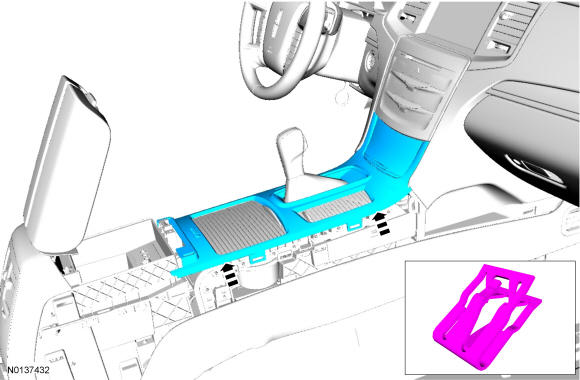

GFD88858Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD88859Courtesy of FORD MOTOR COMPANY

  1. 8.

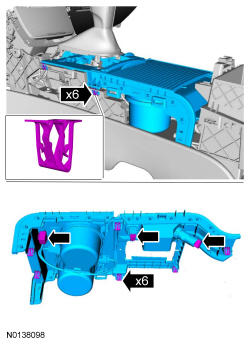

GFD88860Courtesy of FORD MOTOR COMPANY
