Backup Transceiver: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

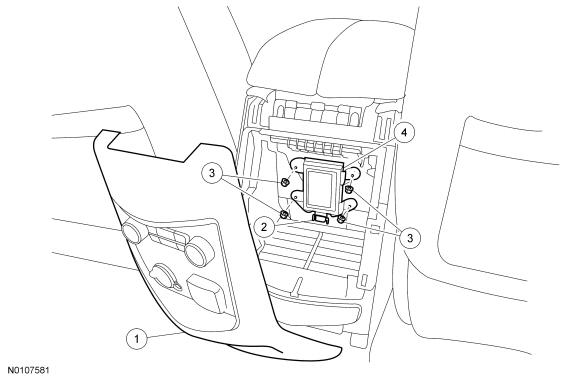

Vehicles With Short Floor Console
| Item | Part Number | Description |
|---|---|---|
| 1 | 74045E24 | Rear Heating Ventilation Air Conditioning (RHVAC) module finish panel |
| 2 | - | Backup transceiver electrical connector (part of 14B079) |
| 3 | W706675 | Backup transceiver nuts (4 required) |
| 4 | 15607 | Backup transceiver |

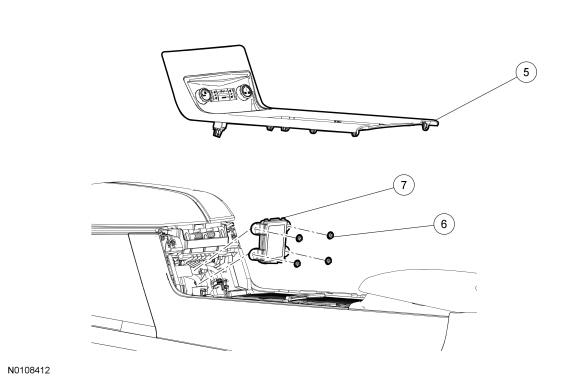

Vehicles With Long Floor Console
| Item | Part Number | Description |
|---|---|---|
| 5 | 7404567 | Rear floor console upper trim panel |
| 6 | W706675 | Backup transceiver nuts (4 required) |
| 7 | 15607 | Backup transceiver |
