System Diagram

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The TPM module is also known as Radio Transceiver Module (RTM).

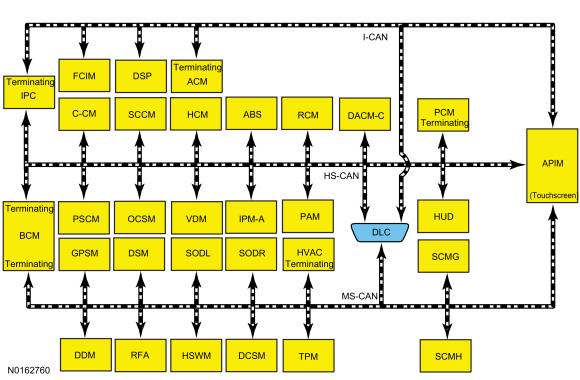

Network Topology

GFD89589Courtesy of FORD MOTOR COMPANY
