Fuel Rail Pressure (FRP) Sensor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

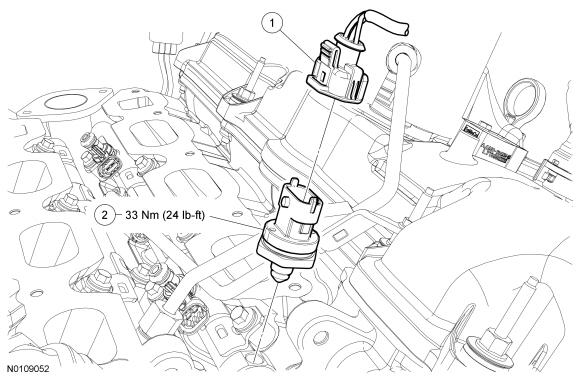

Fig 1: Fuel Rail Pressure Sensor Replacement Components With Torque Specifications
GFD88290Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14A464 Fuel Rail Pressure (FRP) sensor electrical connector
2 9G756 FRP sensor
