Camshaft Position (CMP) Sensor - 3.5L GTDI: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MATERIAL

Item	Specification
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada)	WSS-M2C946-A

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Lower radiator hose removed for clarity.

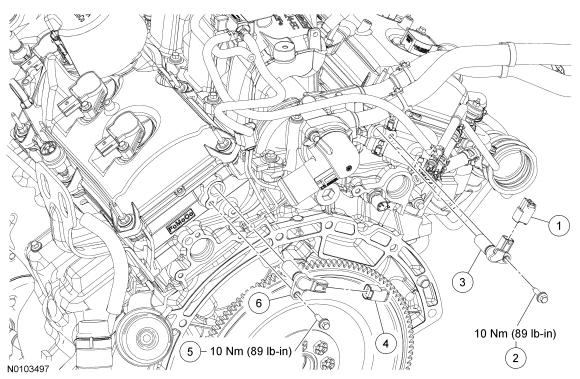

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	14A464	RH Camshaft Position (CMP) sensor electrical connector
2	W506856	RH CMP sensor bolt
3	12K073	RH CMP sensor
4	14A464	LH CMP sensor electrical connector
5	W506856	LH CMP sensor bolt
6	12K073	LH CMP sensor
