Strut and Spring Assembly: Notes

MATERIAL

Item Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A ESE-M1C171-A

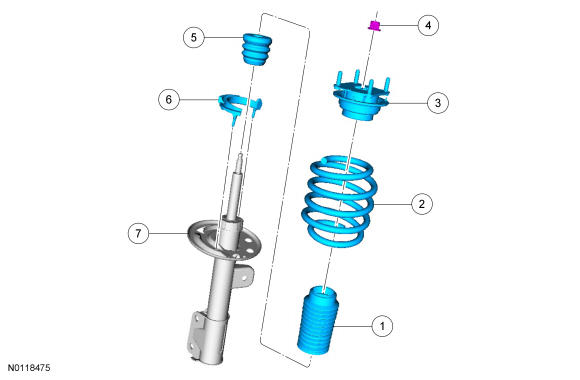

GFD86789Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 18A047 Dust boot
2 5310 Spring
3 18183 Upper strut mount
4 W713968 Strut rod nut
5 18198 Jounce bumper
6 5415 Lower spring isolator
7 18124 Strut assembly
