Transfer Case

  1. Remove the catalytic converter. Refer to: Catalytic Converter Refer to: Catalytic Converter
  2. Remove the front halfshaft RH. Refer to: Front Halfshaft RH

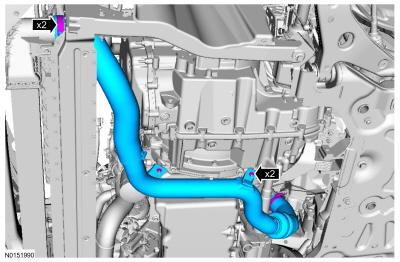

  3. Remove the CAC tube clamps and CAC tube.
    GFD166716Courtesy of FORD MOTOR COMPANY
  4. If equipped. Disconnect the PTU temperature sensor.
    GFD166717Courtesy of FORD MOTOR COMPANY
  5. Remove the PTU heat shield bolts and the PTU heat shield.
    GFD166718Courtesy of FORD MOTOR COMPANY
  6. Disconnect the PTU vent hose.
    GFD166713Courtesy of FORD MOTOR COMPANY

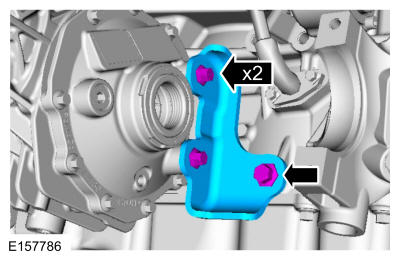

  7. Remove the PTU support bracket bolts and the PTU support bracket.
    GFD166719Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the upper PTU bolts.
    GFD166720Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the lower PTU bolts.
    GFD166721Courtesy of FORD MOTOR COMPANY
  10. Remove the PTU.
    GFD166722Courtesy of FORD MOTOR COMPANY

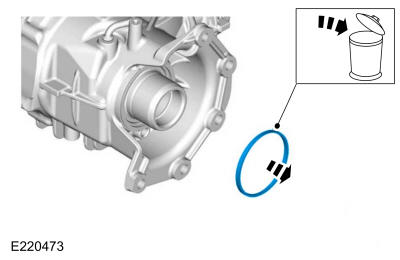

  11. Remove and discard the PTU compression seal.
GFD166723Courtesy of FORD MOTOR COMPANY
