Selector Lever Cable: Removal

  1. Remove the air cleaner outlet pipe. REFER to: Air Cleaner Outlet Pipe .
  2. Remove the air cleaner. REFER to: Air Cleaner .
  3. Apply the parking brake.
    GFD166650Courtesy of FORD MOTOR COMPANY

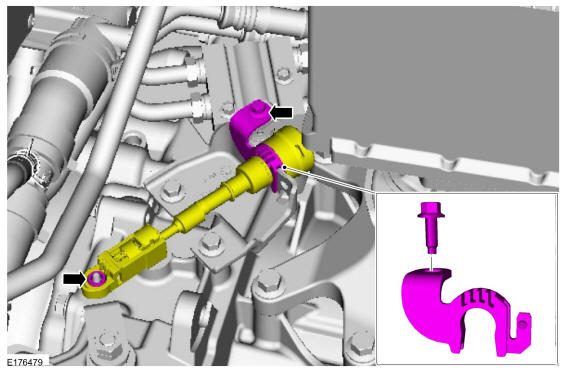

  4. Disconnect the selector lever cable from the transmission manual lever, remove the bolt and the clip.
    GFD166665Courtesy of FORD MOTOR COMPANY
  5. Disconnect the selector lever cable retainers.
    GFD166666Courtesy of FORD MOTOR COMPANY
  6. Disconnect the selector lever cable from the TRCM, remove the selector lever cable bolt and clip and remove the selector lever cable.
GFD166667Courtesy of FORD MOTOR COMPANY
