Brake Shift Interlock Override Switch: Installation

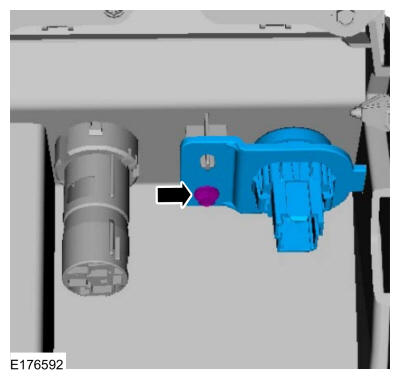

Position the brake shift interlock override switch and install the screw.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

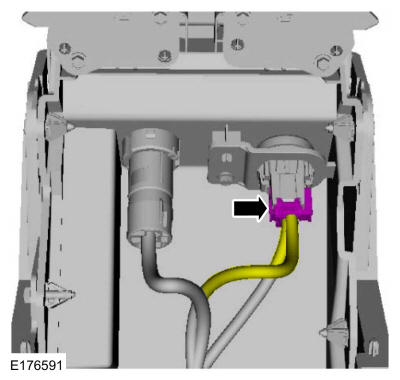

Connect the brake shift interlock override switch electrical connector.

Courtesy of FORD MOTOR COMPANY

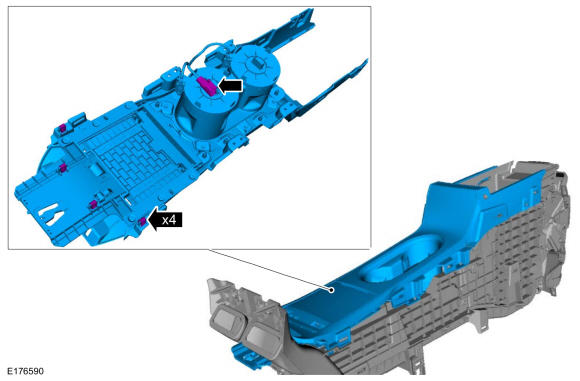

Connect the electrical connector and install the console finish panel.

Courtesy of FORD MOTOR COMPANY
Install the console finish panel screws.

Courtesy of FORD MOTOR COMPANY

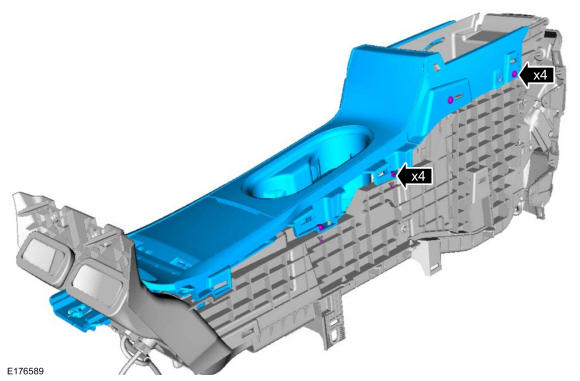

Install the floor console. REFER to: Floor Console .
