Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. REFER to: Restraints Control Module (RCM) .
  2. Remove the downshift paddle switch.

    • Disconnect the downshift paddle switch electrical connector.

    • Remove the screw and the downshift paddle switch.

      Torque: 44 lb.in (5 Nm)

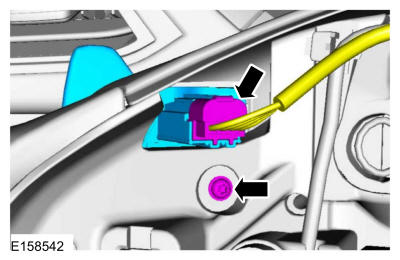

GFD166662Courtesy of FORD MOTOR COMPANY
