Main Control Valve Body: Removal

  1. Remove the main control cover. REFER to: Main Control Cover .
  2. Disconnect the TR sensor electrical connector.
    GFD166169Courtesy of FORD MOTOR COMPANY
  3. Disconnect the OSS sensor electrical connector.
    GFD166170Courtesy of FORD MOTOR COMPANY

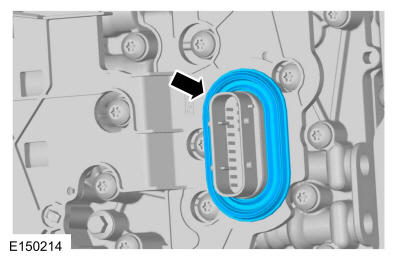

  4. Remove the main control-to-cover seal.
    GFD166171Courtesy of FORD MOTOR COMPANY

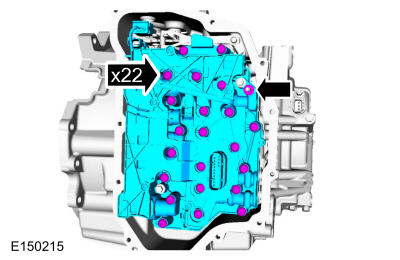

  5. NOTE: The main control should be handled with care or damage to the main control may occur.
    NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

    Remove the main control nut, the main control-to-transmission case bolts and the main control.

    GFD166172Courtesy of FORD MOTOR COMPANY

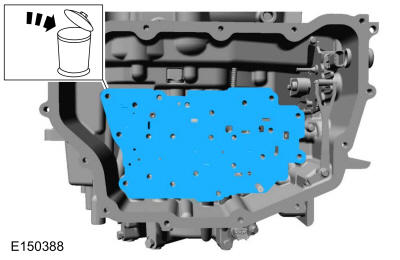

  6. Remove and discard the main control-to-transmission case separator plate.
    GFD166173Courtesy of FORD MOTOR COMPANY
  7. Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.
    GFD166174Courtesy of FORD MOTOR COMPANY

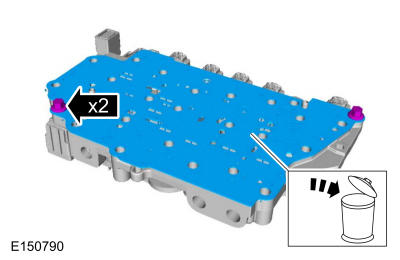

  8. Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
GFD166175Courtesy of FORD MOTOR COMPANY
