Main Control Cover: Removal

Refer to: Air Cleaner - 2.0L EcoBoost (177kW/240PS) - MI4/2.3L EcoBoost (201kW/273PS).
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

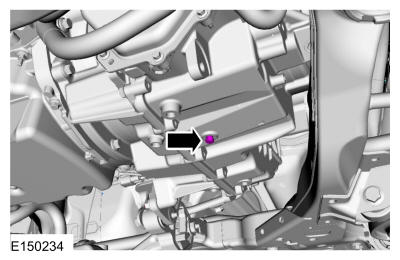

Refer to: Jacking and Lifting - Overview .Engine Front Undershield
NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: Note the location of the studbolts for installation.

Courtesy of FORD MOTOR COMPANY
