Main Control Cover: Installation

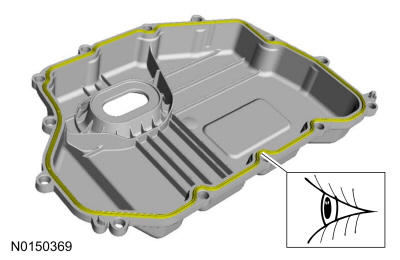

1. NOTE: The main control cover gasket can be can be reused if not damaged.

   Courtesy of FORD MOTOR COMPANY

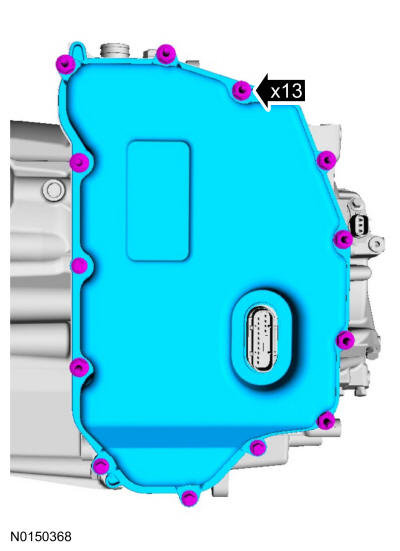

2. NOTE: Install the studbolts in the locations noted during removal.

   Torque

   : 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Courtesy of FORD MOTOR COMPANY

4. Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Torque

   : 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Courtesy of FORD MOTOR COMPANY

7. Torque

   : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Refer to: Air Cleaner - 2.0L EcoBoost (177kW/240PS) - MI4/2.3L EcoBoost (201kW/273PS).
9. Refer to: Transmission Fluid Drain and Refill .

Refer to: Engine Front Undershield .
