Cruise Control Module (CCM): Removal

Cruise control module (CCM)

• 1.

  Remove the front bumper cover. Refer to: Front Bumper Cover .

• 2.



  • 1.

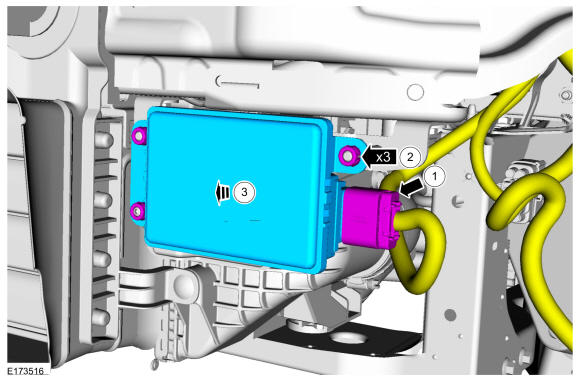

    Disconnect the electrical connector.

  • 2.

    Disconnect the CCM from the CCM bracket.

  • 3.

    Remove the CCM.
  • To install, align the CCM after installation. Refer to: Cruise Control Radar Alignment .

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: Replace any damaged CCM grommets.

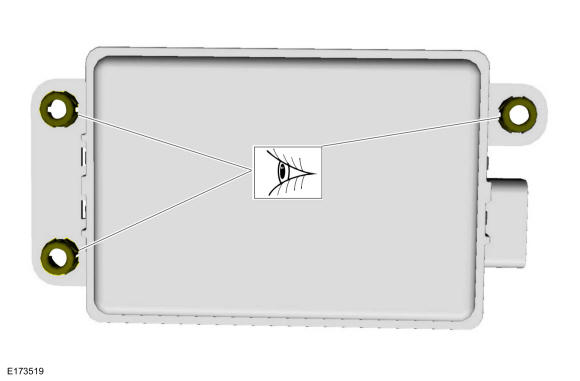

  Inspect CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

CCM bracket

• 4.

  Remove the front bumper cover. Refer to: Front Bumper Cover .

• 5.

  Remove the CCM. Refer to: Cruise Control Module (CCM) .

• 6.



  • 1.

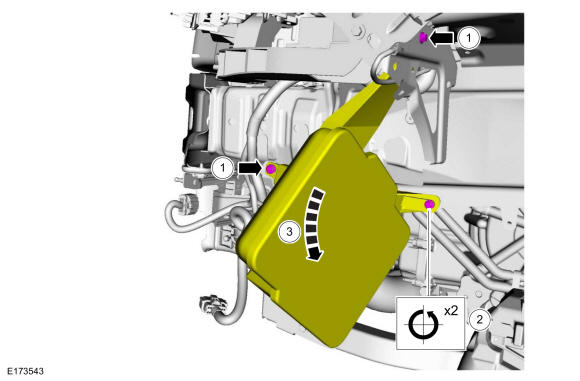

    Remove the PCM bracket bolts.

    Torque: 28 lb.in (3.2 Nm)

  • 2.

    Loosen the lower PCM bracket bolt.

    Torque: 28 lb.in (3.2 Nm)

  • 3.

    Position the PCM aside.

Courtesy of FORD MOTOR COMPANY

• 7.

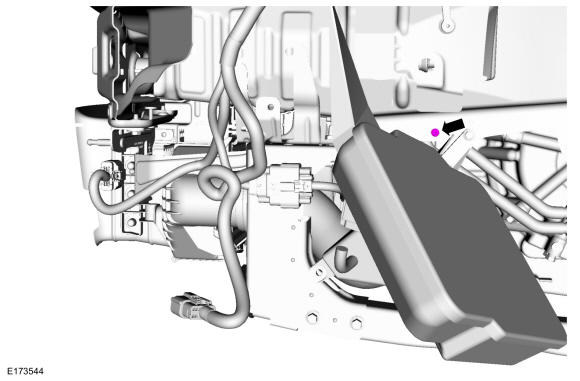

  Remove the rear CCM bracket bolt.

  Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

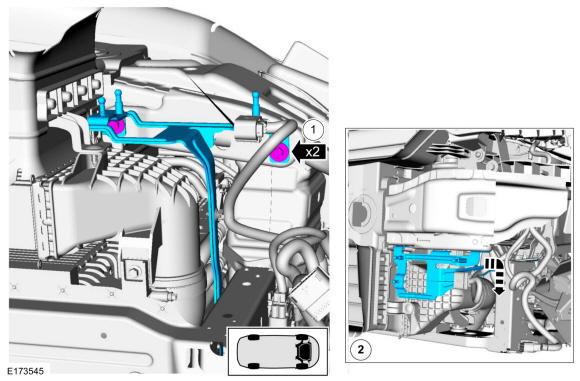

  Remove the 2 bolts and the CCM bracket.

  Torque: 93 lb.in (10.5 Nm)
