Side Obstacle Detection Control Module: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
NOTE:
This step is only necessary if the SODL or SODR is being replaced.
- 1.
Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
- 2.
Remove the rear wheel and tire. REFER to: Wheel and Tire
- 3.
Remove the rear quarter panel moulding. REFER to: Rear Quarter Panel Moulding
- 11.NOTE: The following steps are only necessary if a new component is being installed.
- 1.

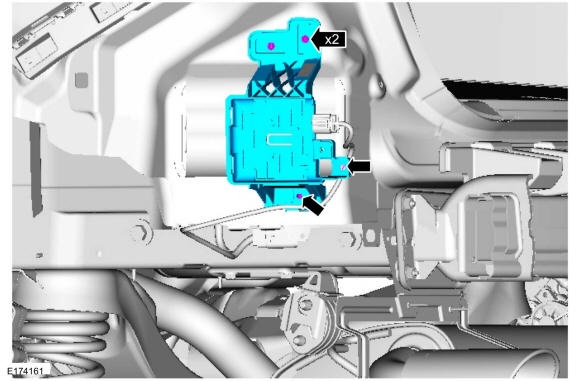

Remove 2 bolts.
- 2.

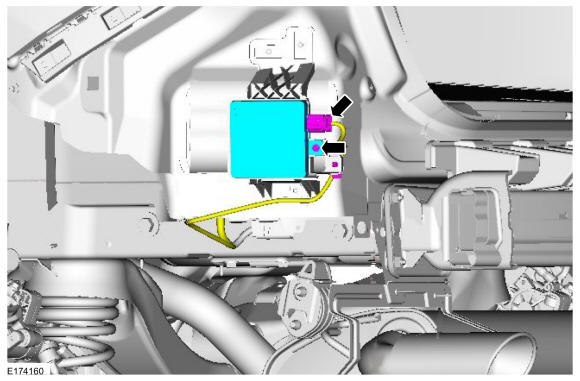

Disconnect the wiring harness retainer.
- 3.
Remove the screw and the SODL bracket.
- 1.
