Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

1.

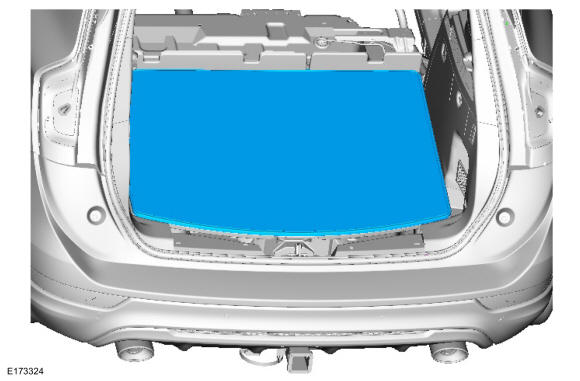

Remove the loadspace floor panel.

Courtesy of FORD MOTOR COMPANY

2.
- 1.

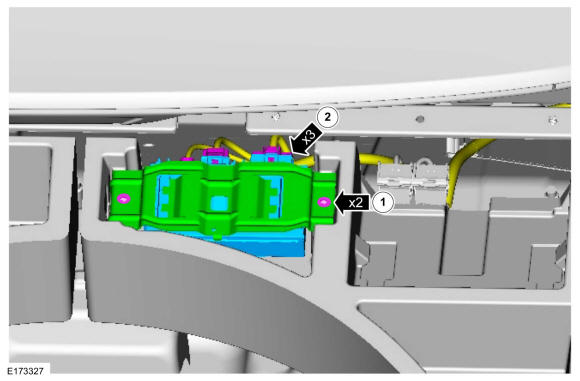

  Remove the 2 screws and the trailer module bracket.
- 2.

  Disconnect 2 electrical connectors and remove the trailer module.

Courtesy of FORD MOTOR COMPANY
