Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the glove compartment. Refer to: Glove Compartment .

2.

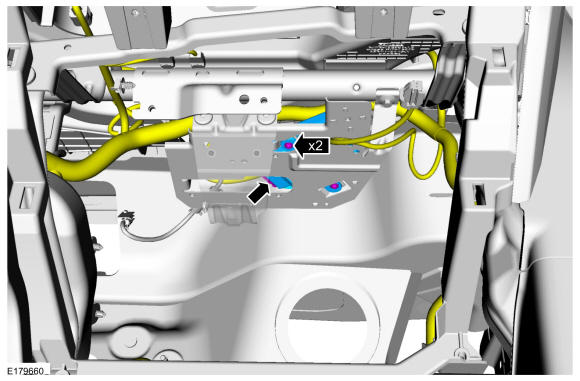

Remove the headlamp control module screws then disconnect and remove the headlamp control module.

Courtesy of FORD MOTOR COMPANY
