Accelerator Pedal: Removal
WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

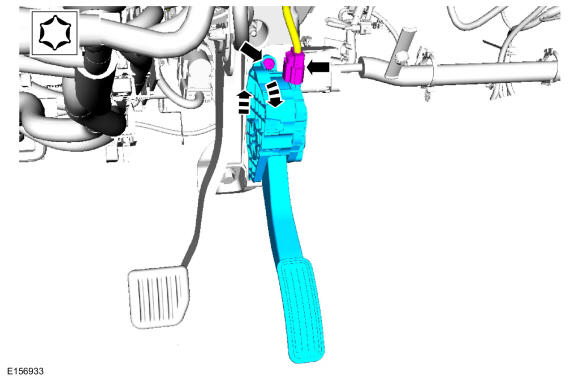

- Disconnect the accelerator pedal sensor electrical connector. Remove the bolt and slide the accelerator pedal assembly upward to remove.
Torque: 33 lb.in (3.7 Nm)
