Rear Lamp Fade Control Module: Removal
WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the LH loadspace interior trim panel. Refer to: Loadspace Trim Panel .

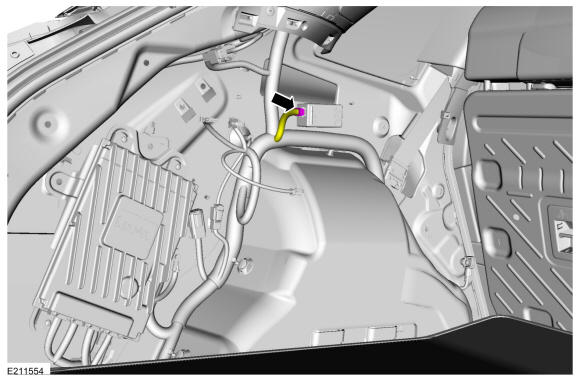

- Disconnect the rear lamp fade control module electrical connector.

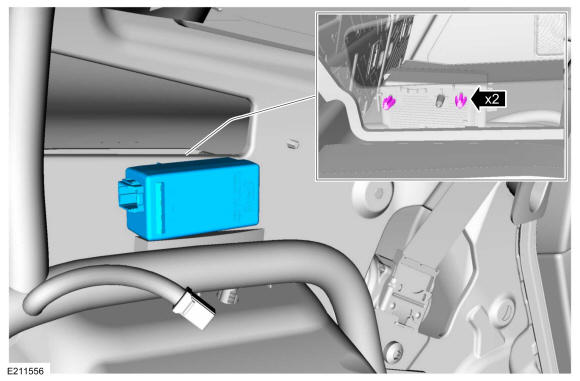

- Release the pin type retainers and remove the rear lamp fade control module.
