Headlamp Control Module (HCM): Removal
WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

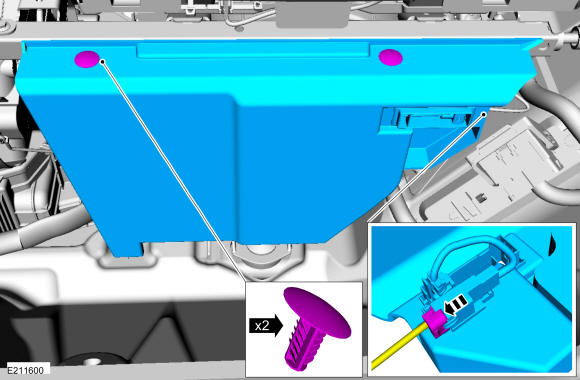

- Remove the push pins, disconnect the electrical connector and remove the RH dash insulator panel.

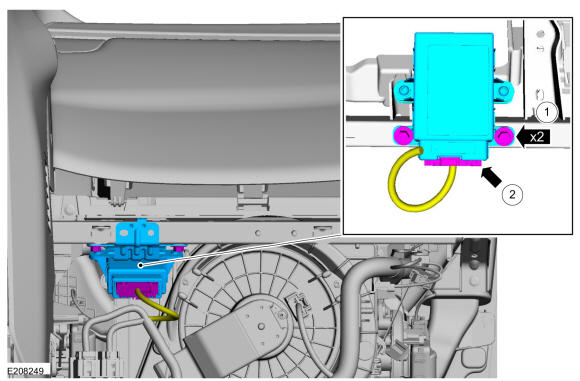

- Remove the headlamp control module.
- Remove the headlamp control module bracket bolts and the headlamp control module.
Torque: 80 lb.in (9 Nm)
- Disconnect the headlamp control module electrical connector.
- Remove the headlamp control module bracket bolts and the headlamp control module.
