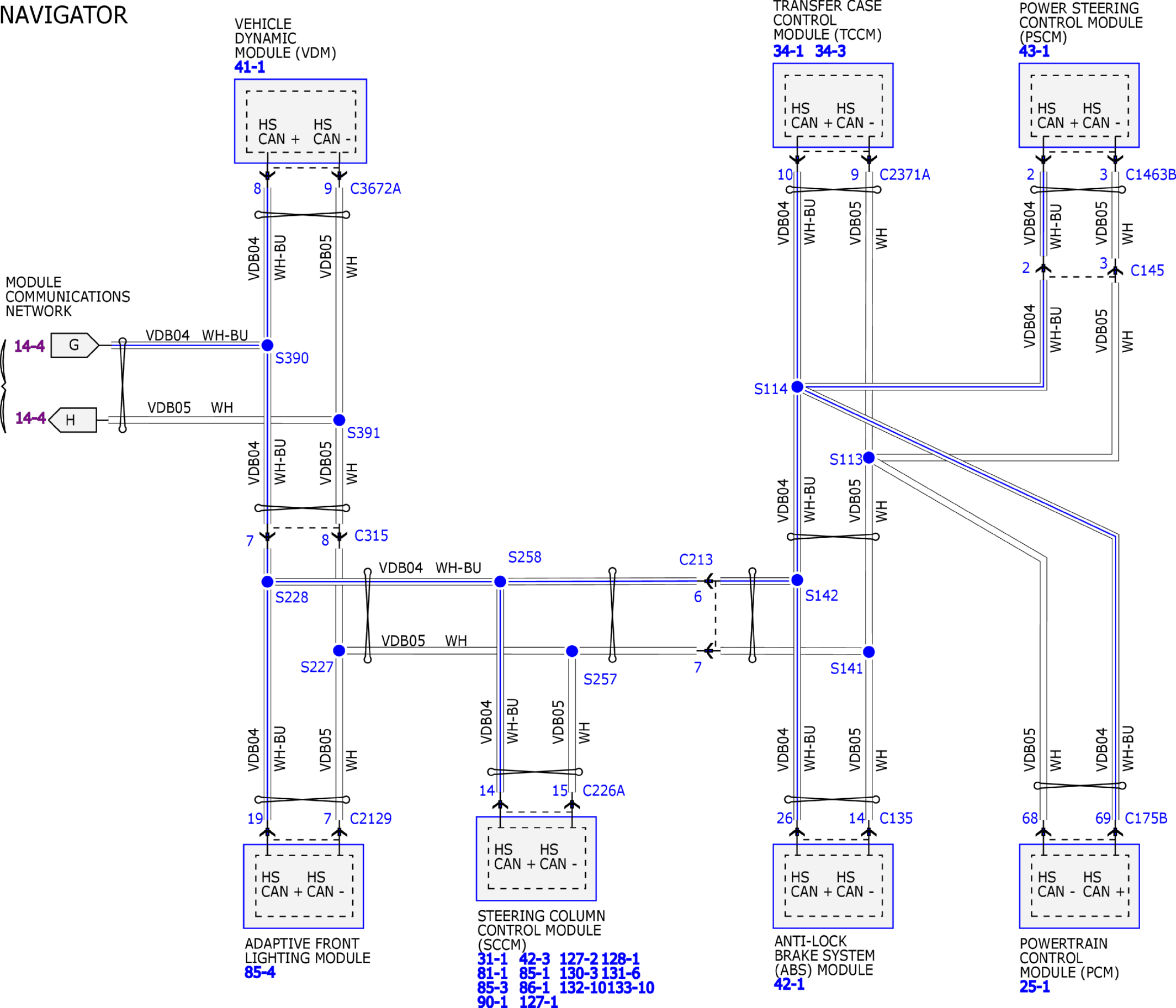

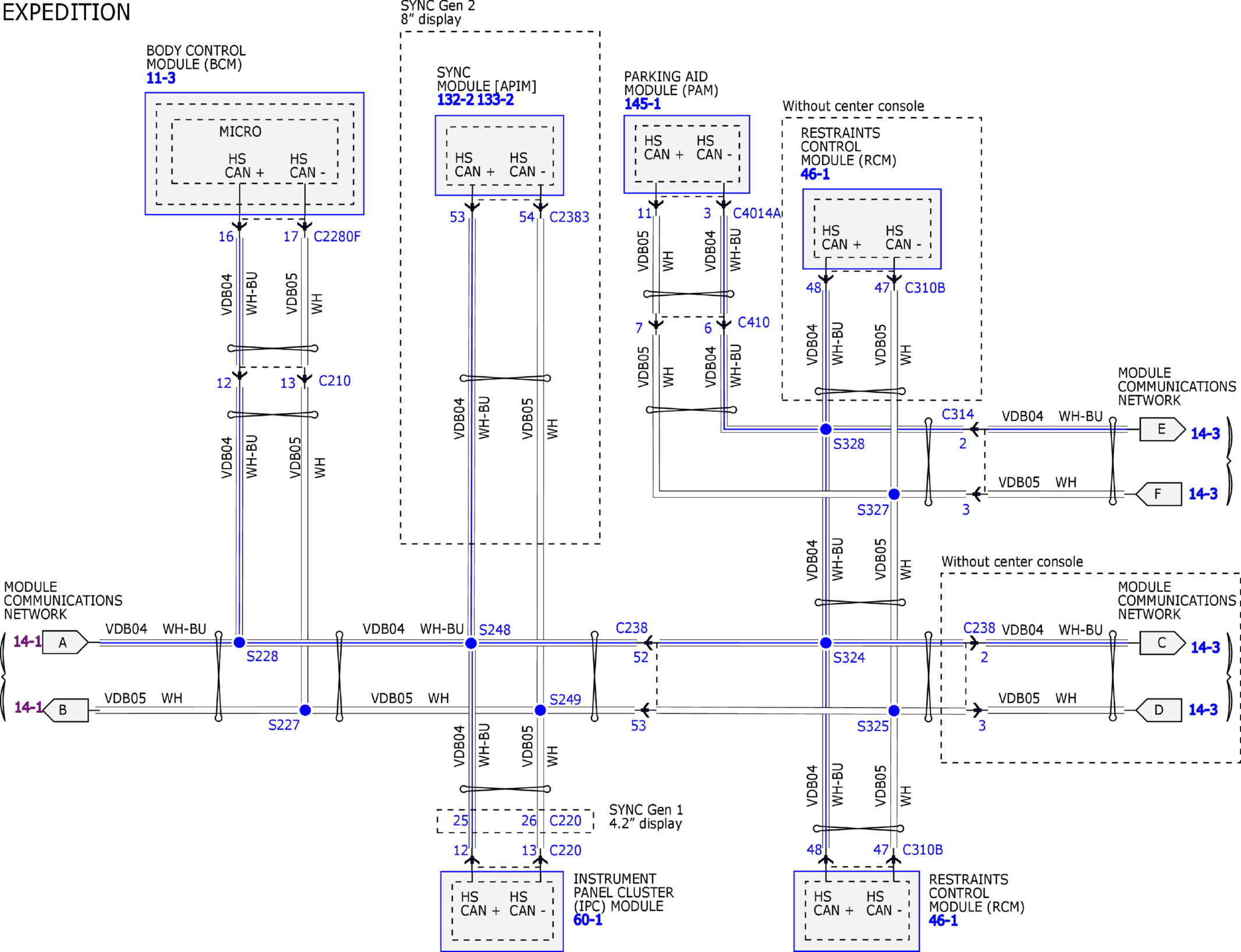

Fig 1: Module Communications Network Wiring Diagrams (1 Of 11)
Courtesy of FORD MOTOR COMPANY

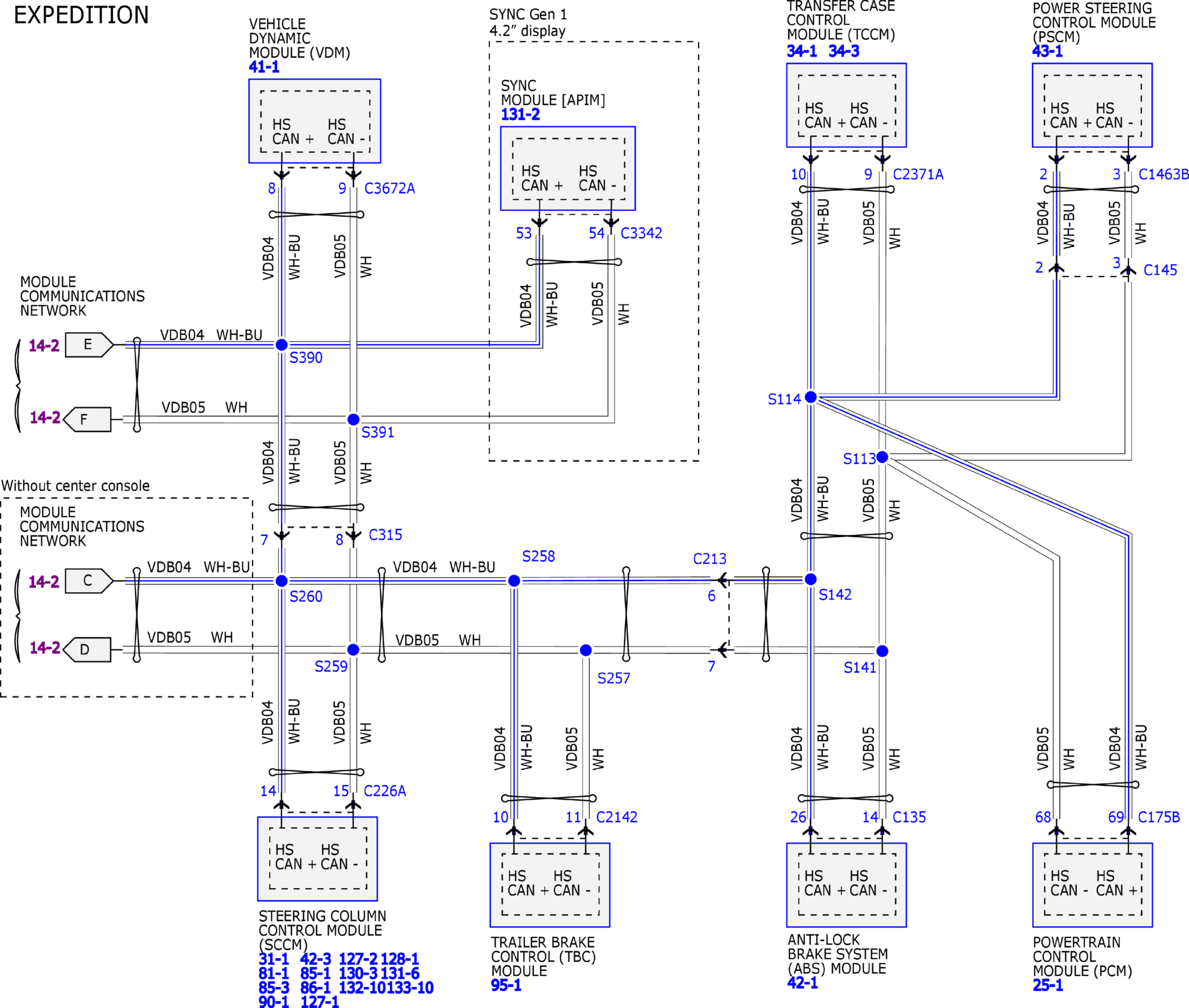

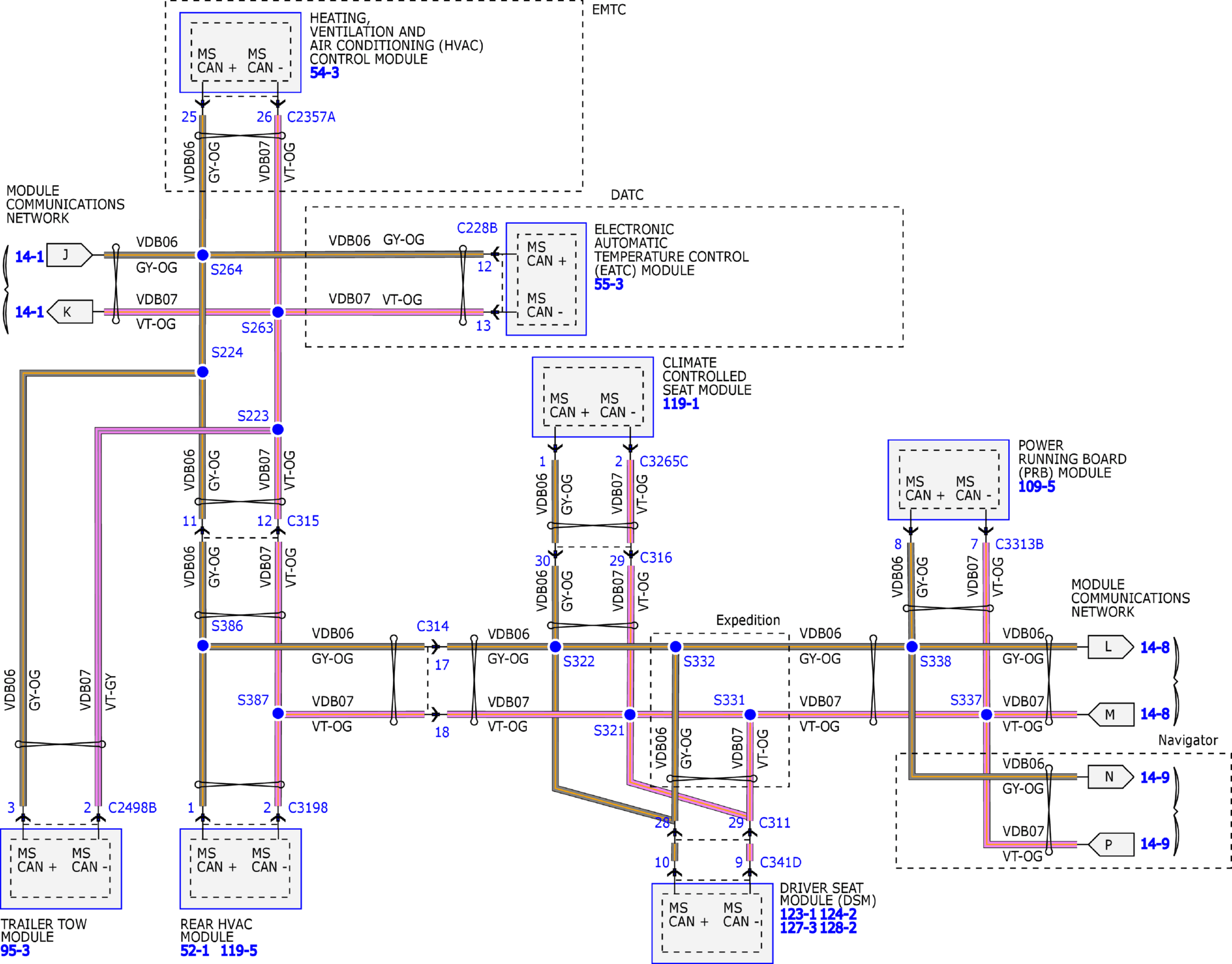

Fig 2: Module Communications Network Wiring Diagrams (2 Of 11)
Courtesy of FORD MOTOR COMPANY

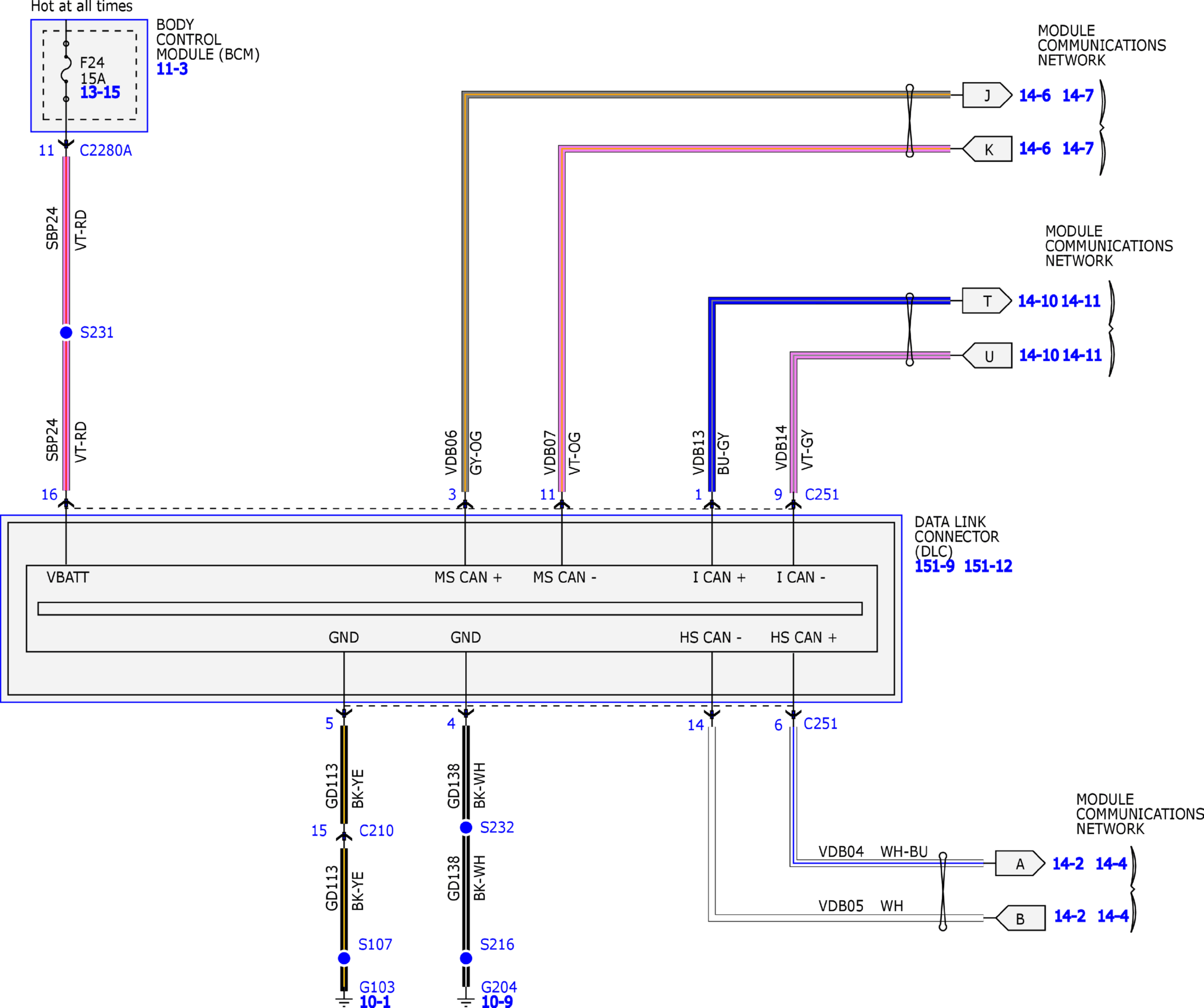

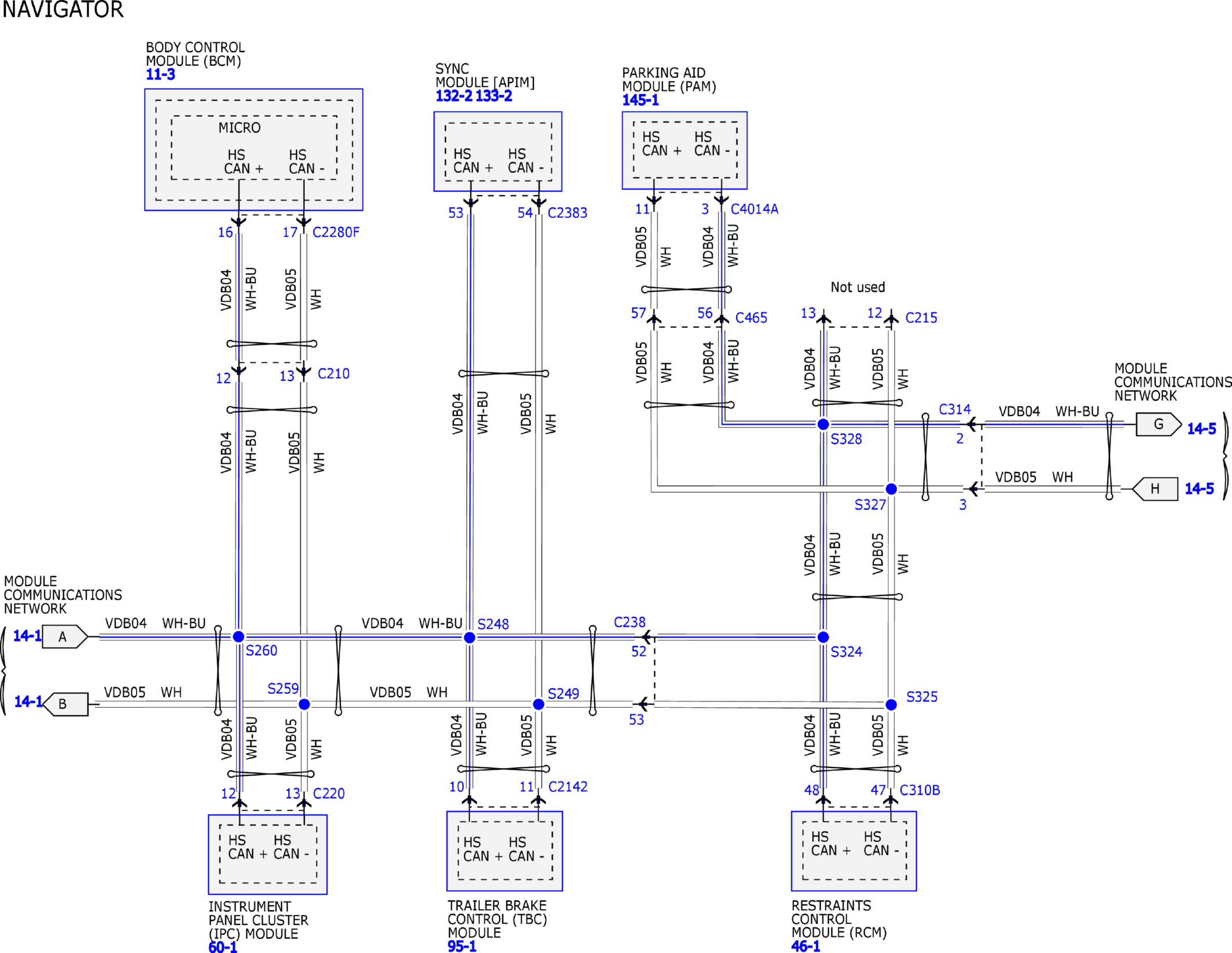

Fig 3: Module Communications Network Wiring Diagrams (3 Of 11)
Courtesy of FORD MOTOR COMPANY

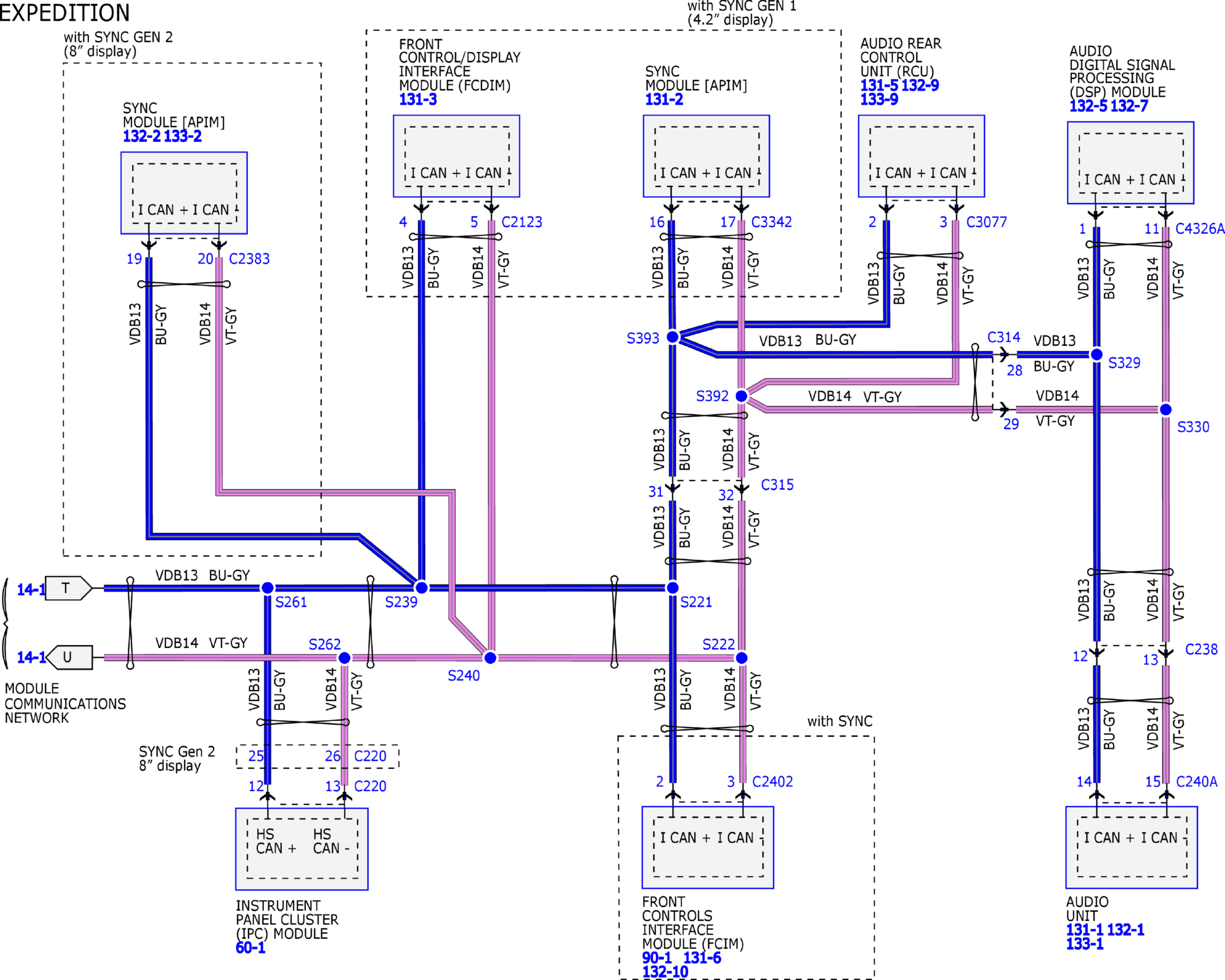

Fig 4: Module Communications Network Wiring Diagrams (4 Of 11)
Courtesy of FORD MOTOR COMPANY

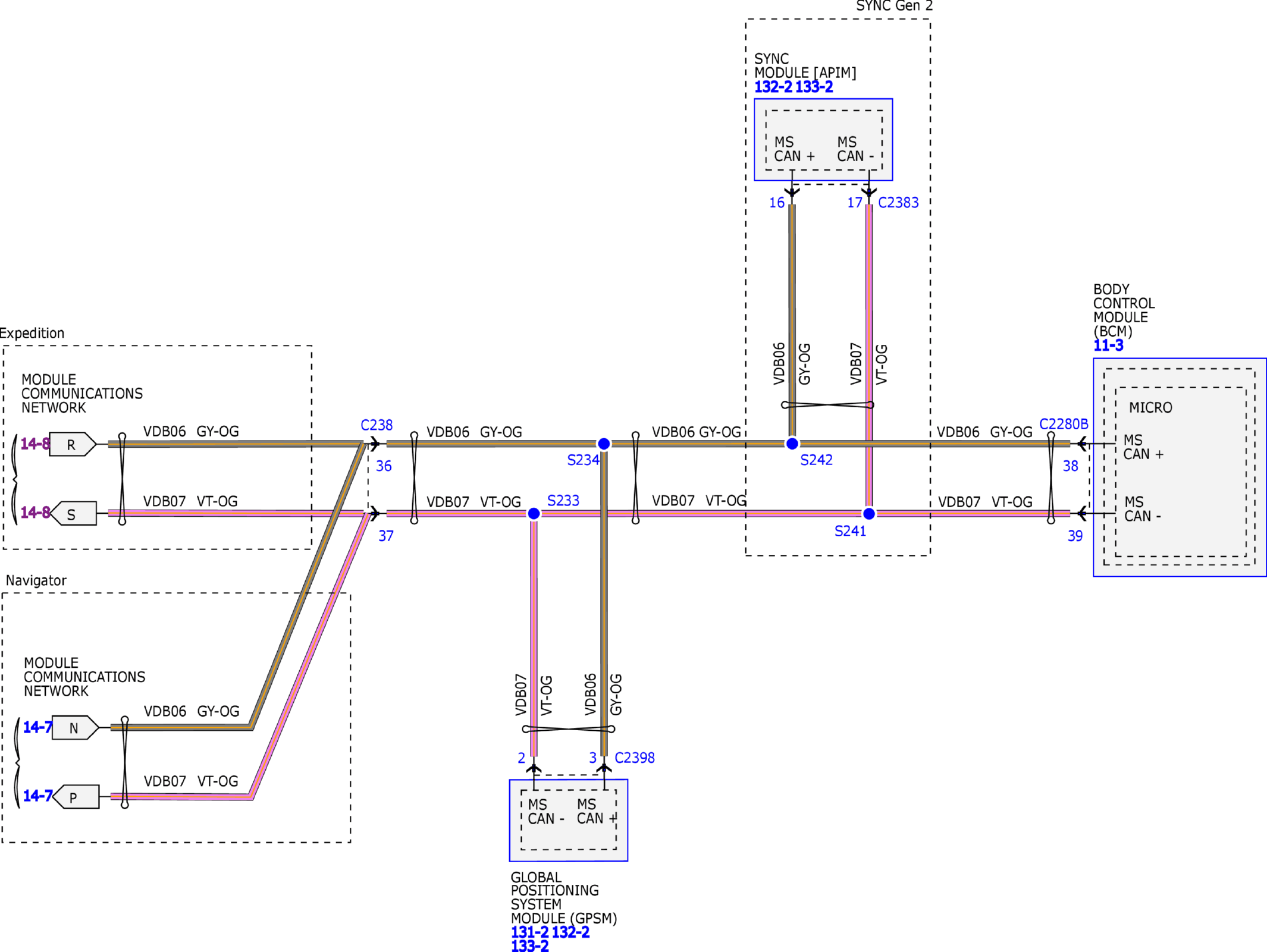

Fig 5: Module Communications Network Wiring Diagrams (5 Of 11)
Courtesy of FORD MOTOR COMPANY

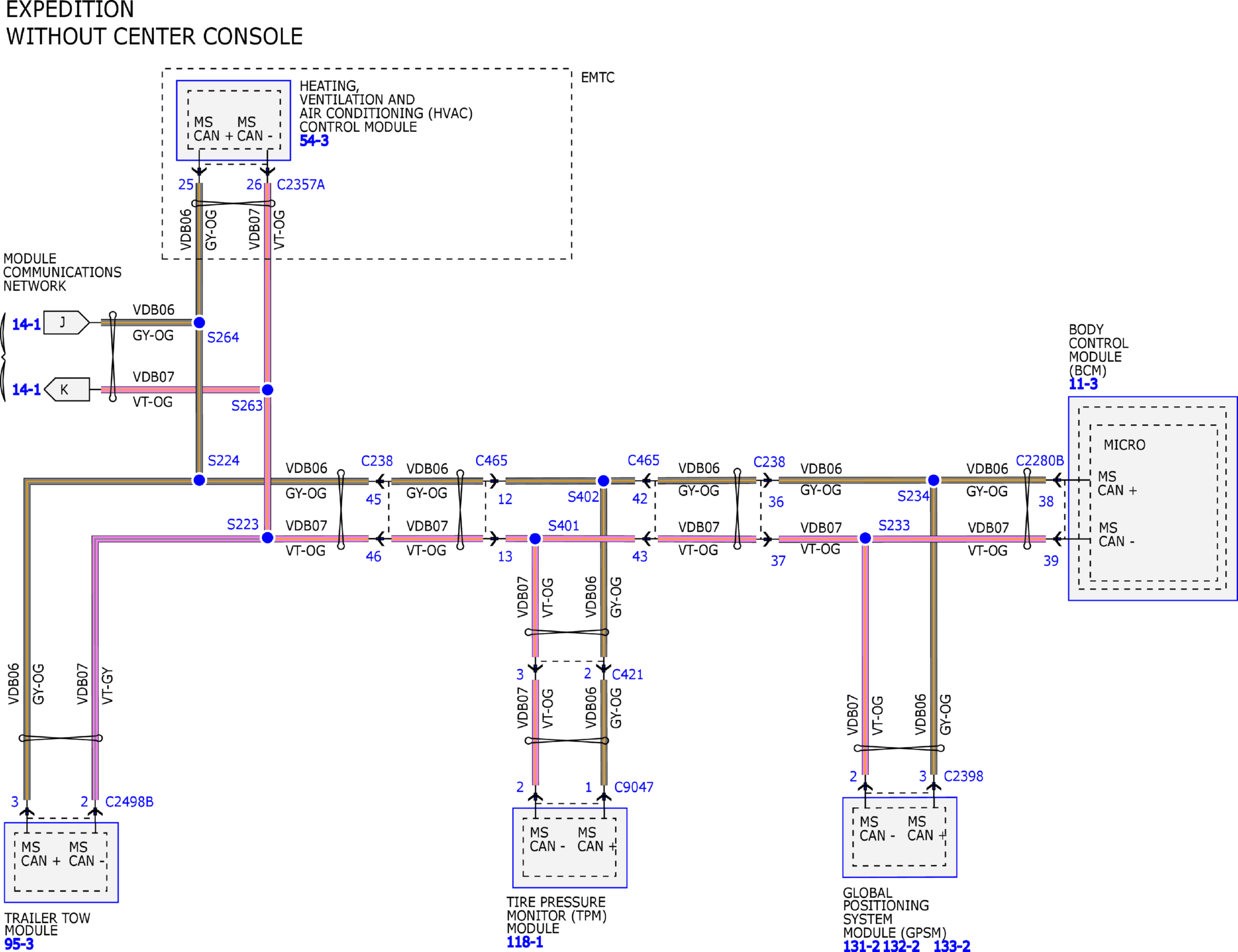

Fig 6: Module Communications Network Wiring Diagrams (6 Of 11)
Courtesy of FORD MOTOR COMPANY

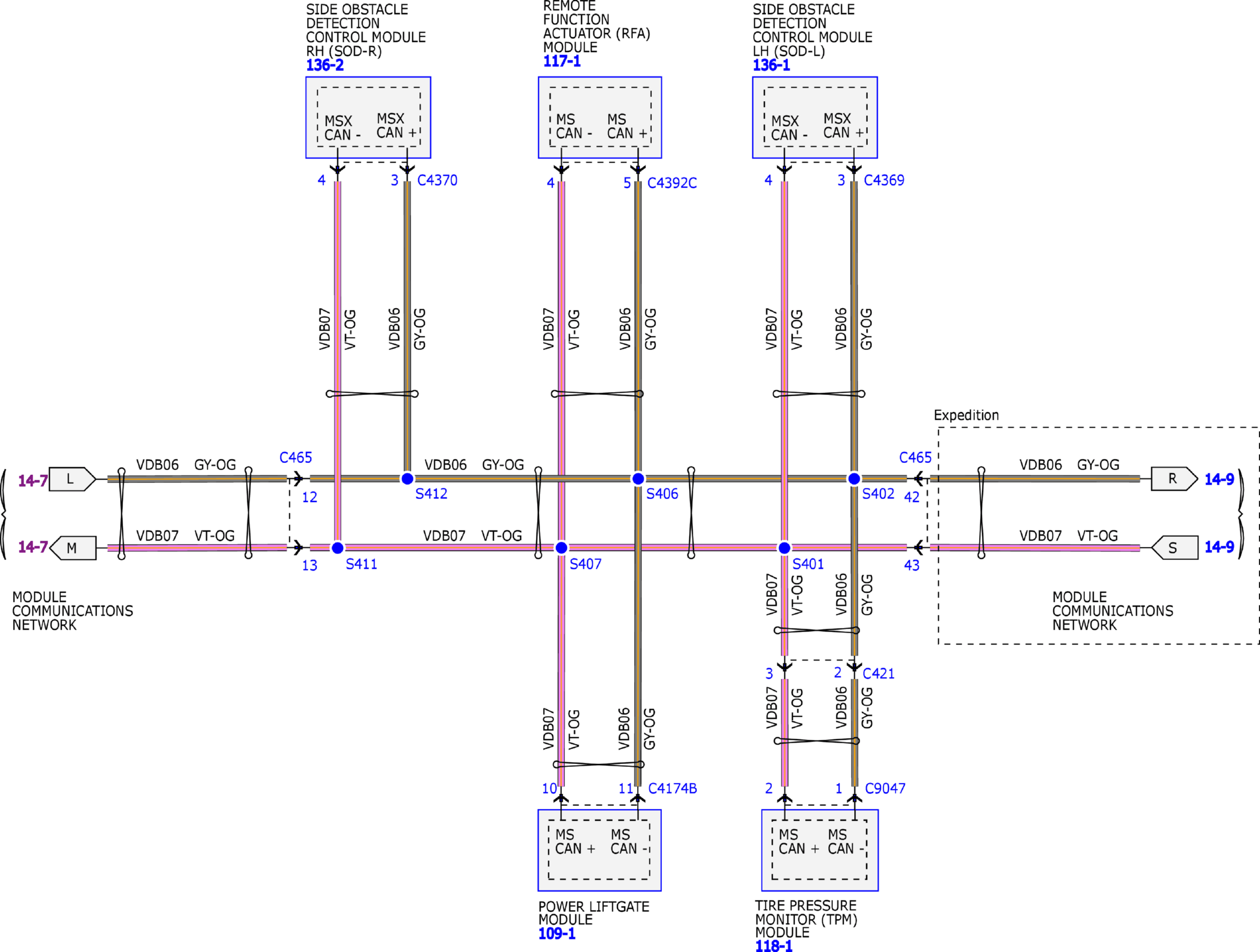

Fig 7: Module Communications Network Wiring Diagrams (7 Of 11)
Courtesy of FORD MOTOR COMPANY

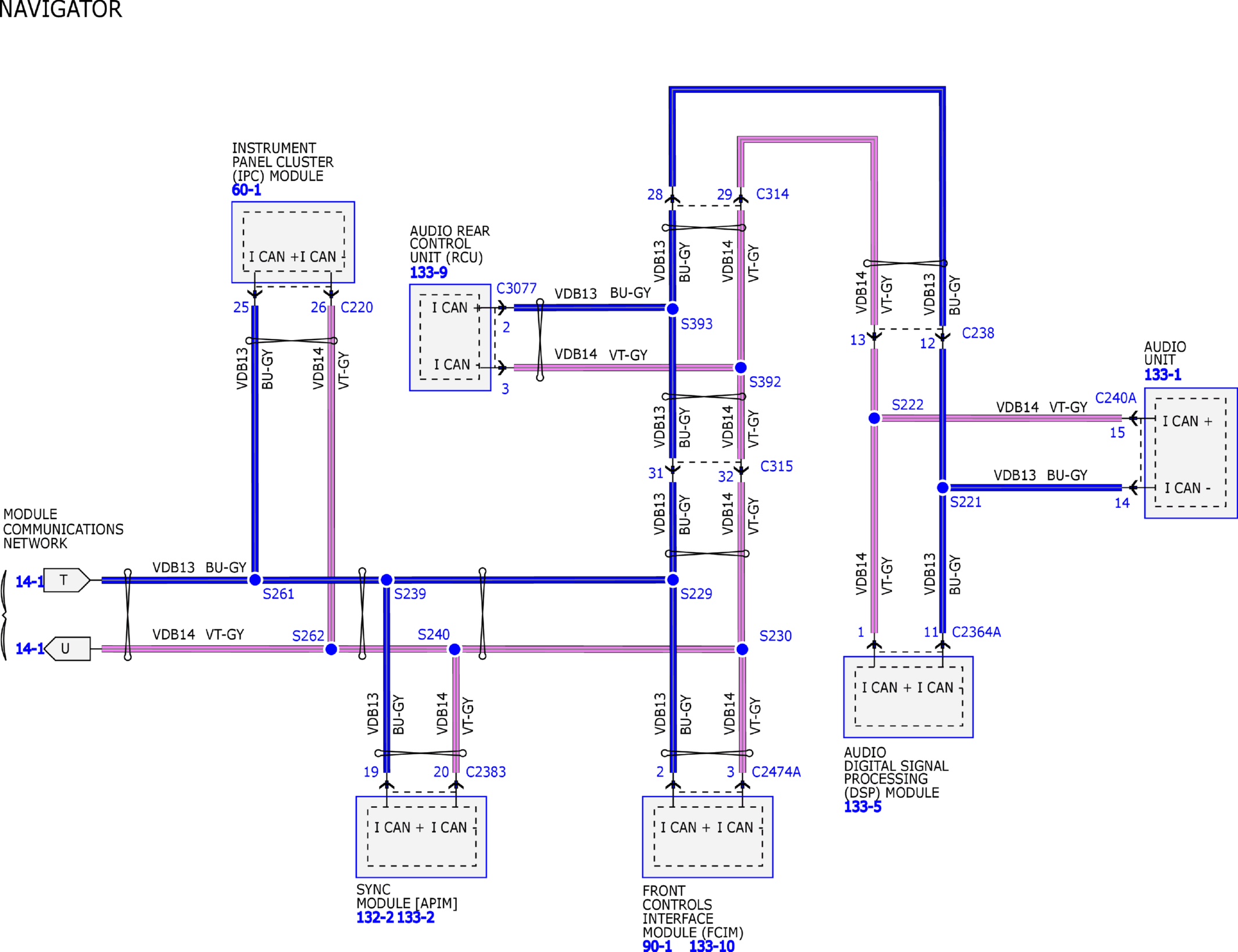

Fig 8: Module Communications Network Wiring Diagrams (8 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Module Communications Network Wiring Diagrams (9 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Module Communications Network Wiring Diagrams (10 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Module Communications Network Wiring Diagrams (11 Of 11)
