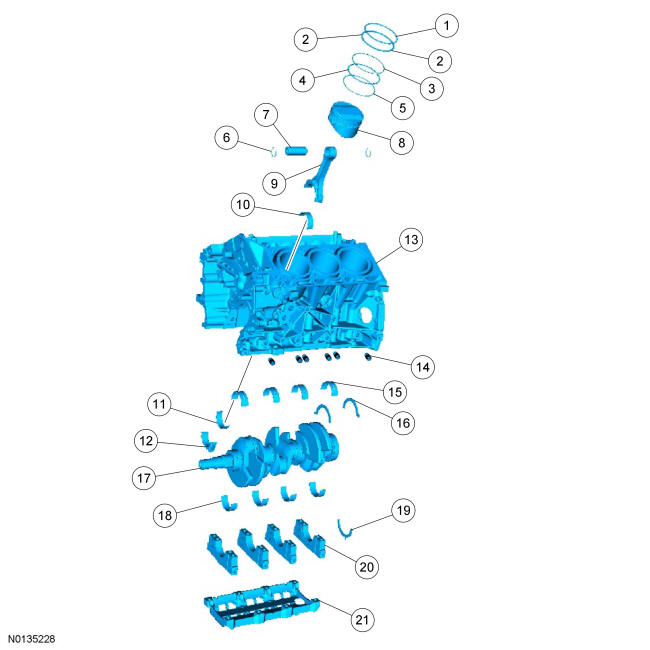

| 1 |
- |
Piston compression upper ring (part of 6148) (6 required) |
| 2 |
- |
Piston compression lower ring (part of 6148) (6 required) |
| 3 |
- |
Piston oil control upper segment ring (part of 6148) (6 required) |
| 4 |
- |
Piston oil control spacer (part of 6148) (6 required) |
| 5 |
- |
Piston oil control lower segment ring (part of 6148) (6 required) |
| 6 |
6140 |
Piston pin retainer (12 required) |
| 7 |
6135 |
Piston pin (6 required) |
| 8 |
6110 |
Piston (6 required) |
| 9 |
6200 |
Connecting rod (6 required) |
| 10 |
6211 |
Connecting rod upper bearing (6 required) |
| 11 |
6211 |
Connecting rod lower bearing (6 required) |
| 12 |
- |
Connecting rod cap (part of 6200) (6 required) |
| 13 |
6010 |
Cylinder block |
| 14 |
6K868 |
Piston oil cool valve (6 required) |
| 15 |
6333 |
Cylinder block crankshaft main bearing (4 required) |
| 16 |
6A341 |
Crankshaft upper thrust washer (2 required) |
| 17 |
6303 |
Crankshaft |
| 18 |
6A338 |
Lower crankshaft main bearings (4 required) |
| 19 |
6K302 |
Crankshaft lower thrust washer |
| 20 |
6325 |
Lower crankshaft main bearing caps (4 required) |
| 21 |
6C364 |
Main bearing cap support brace |
