Selector Lever Cable: Installation

All vehicles

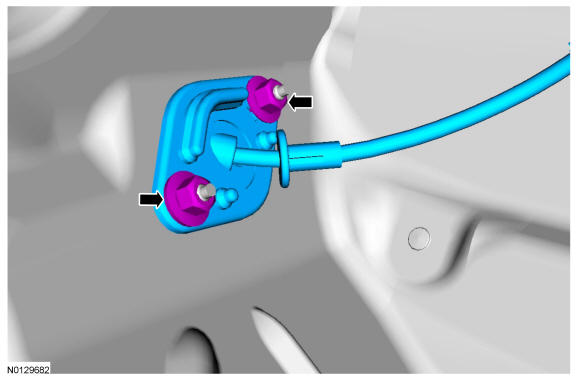

• 1.


  • Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

• 2.

  Install the floor console. For additional information, refer to Instrument Panel and Console .

• 3.



Courtesy of FORD MOTOR COMPANY

6F50/6F55

• 4.

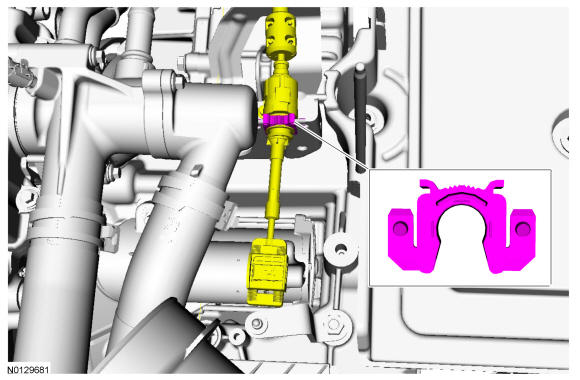

  NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
  NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY

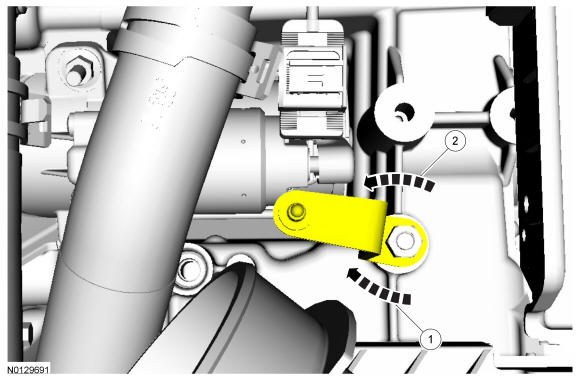

• 5.



  • 1.

    Rotate the manual control lever clockwise until it stops.

  • 2.

    Rotate the manual control lever counterclockwise one detent.

Courtesy of FORD MOTOR COMPANY

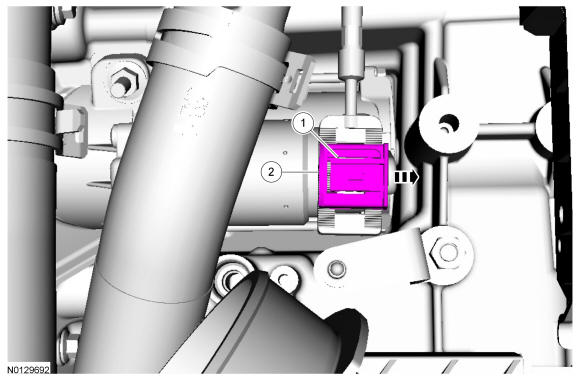

• 6.



  • 1.

    Pry the latch up.

  • 2.

    Push the lock tab to slide it over.

Courtesy of FORD MOTOR COMPANY

• 7.



Courtesy of FORD MOTOR COMPANY

• 8.


  NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
  NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

Courtesy of FORD MOTOR COMPANY

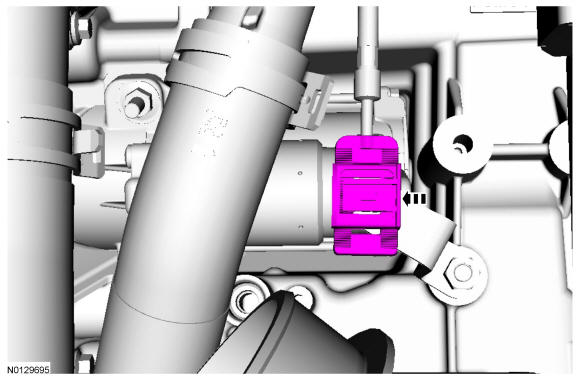

• 9.

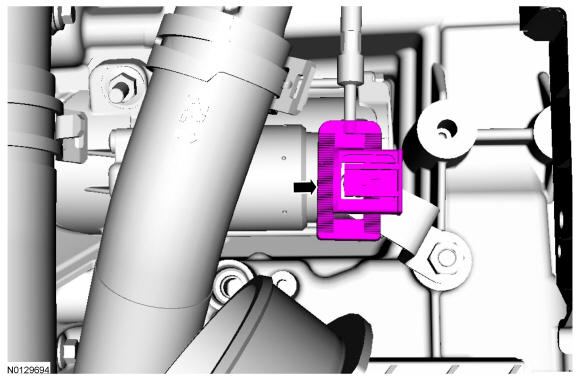

  NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 10.

  Install the air cleaner outlet pipe. For additional information, refer to Intake Air Distribution and Filtering .

• 11.

  Install the air cleaner. For additional information, refer to Intake Air Distribution and Filtering .
