Stabilizer Bar and Link: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Special Tool(s)

Courtesy of FORD MOTOR COMPANY

Powertrain Lift 300OTC1585AE or equivalent

Material

Item	Specification
Motorcraft ® Threadlock and Sealer TA-25-B	WSK-M2G351-A5

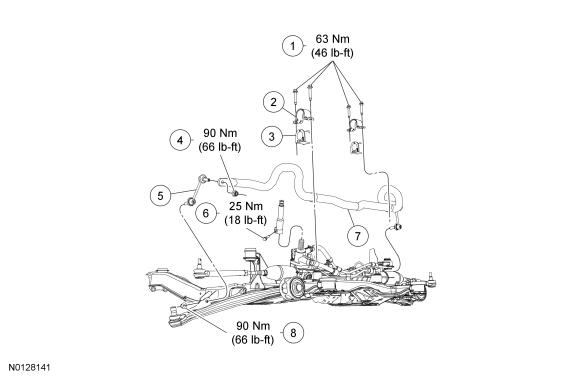

Fig 1: Front Stabilizer Bar and Link Replacement Components With Torque Specifications (1 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W712802	Stabilizer bar bracket bolts (4 required)
2	5486	Stabilizer bar bracket (2 required)
3	5484	Stabilizer bar bushing (2 required)
4	W520214	Stabilizer bar link upper nut (2 required)
5	3B438	Stabilizer bar link (2 required)
6	W712961	Steering column shaft-to-steering gear bolt
7	5494	Stabilizer bar
8	W520214	Stabilizer bar link lower nut (2 required)

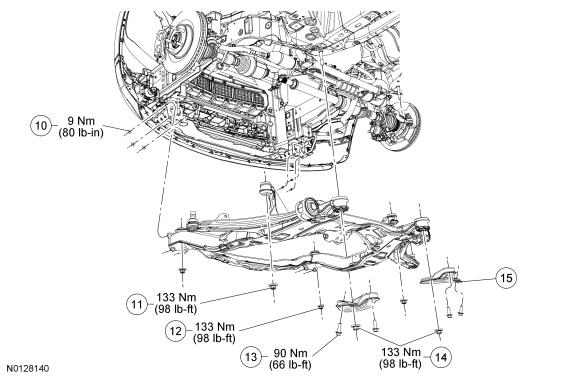

Fig 2: Front Stabilizer Bar and Link Replacement Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
10	W708229	Subframe-to-lower bumper nut (6 required)
11	W712858	Middle subframe nut (2 required)
12	W712858	Forward subframe nut (2 required)
13	W712733	Subframe support bracket bolt (4 required)
14	W712858	Subframe support bracket nuts (2 required)
15	3B154	Subframe support bracket (2 required)
