Shock Absorber and Spring Assembly: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

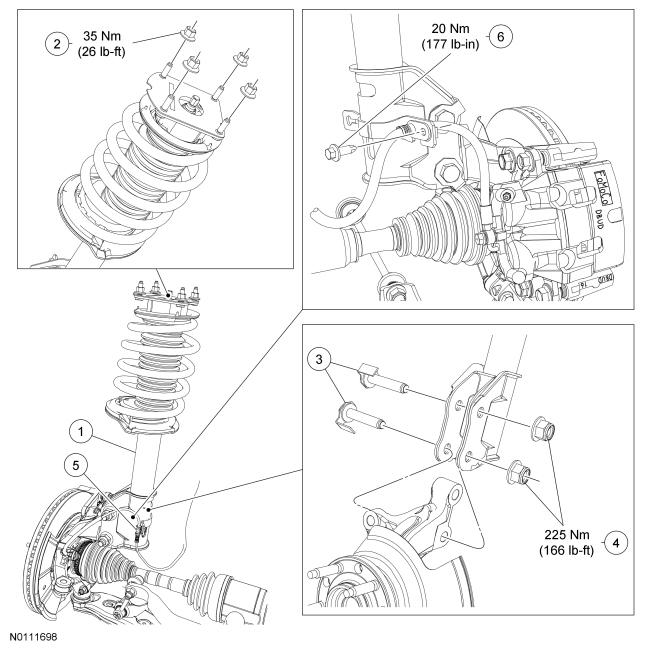

Fig 1: Front Shock Absorber and Spring Assembly Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Shock absorber and spring assembly
2	W704790	Shock absorber upper mount nut (4 required)
3	W714965	Shock absorber lower flag bolts (2 required)
4	W520216	Shock absorber lower nuts (2 required)
5	-	Wheel speed sensor harness clip
6	W708004	Brake flexible hose bracket bolt
7	2078	Brake flexible hose
