Lower Arm: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

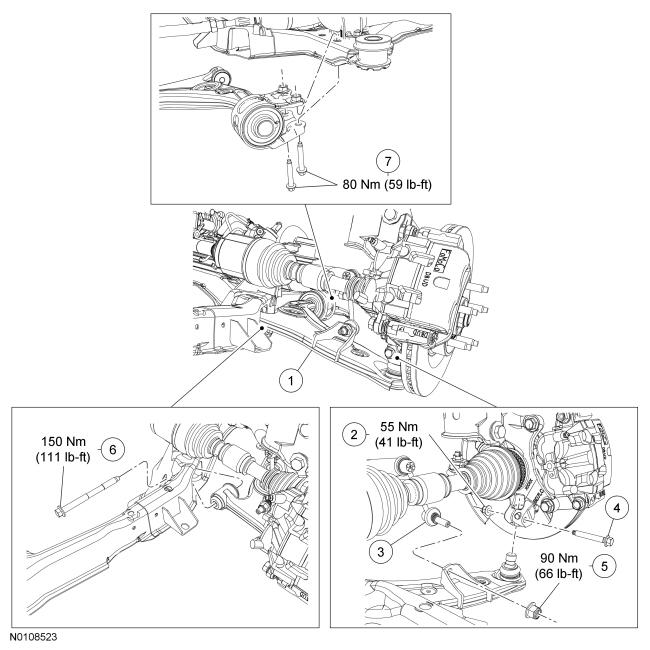

Fig 1: Front Lower Arm Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	3A423 RH/ 3A424 LH RH/ 3A424 LH	Lower arm
2	W520213	Lower ball joint nut
3	3B438	Stabilizer bar link
4	W714681	Lower ball joint bolt
5	W520214	Stabilizer bar link nut
6	W712734	Lower arm-to-frame forward bolt
7	W712850	Lower arm-to-frame rearward bolts (2 required)
